Installing the 1000Base-T Network Adapter Module
Complete the following to install a 1000Base-T Network Adapter Module into the rear panel of a 4012 or
4024 Alcatel OmniAccess WLAN Switch:
•

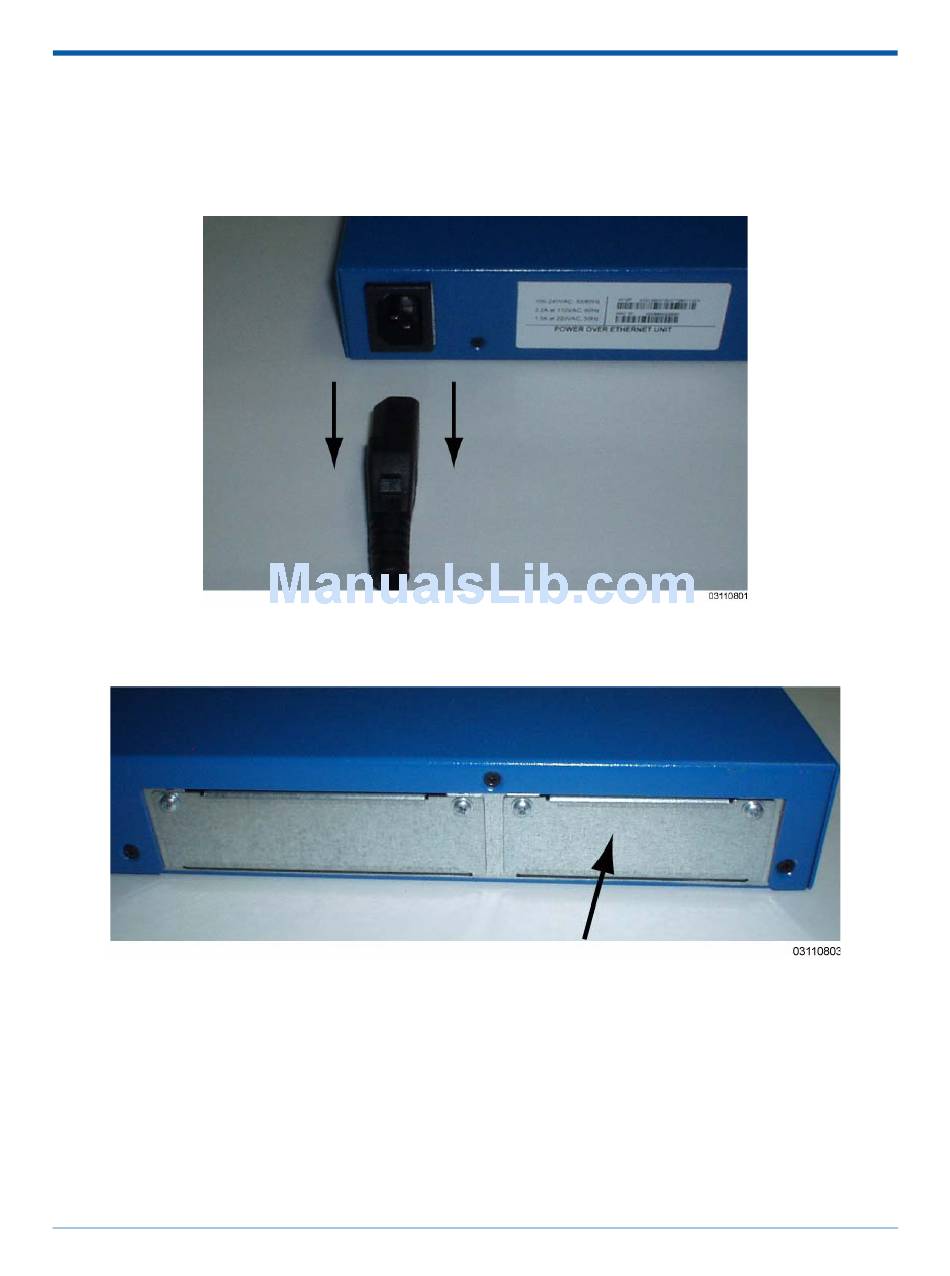

Remove power from the Alcatel OmniAccess WLAN Switch.
•
Locate the slot for the 1000Base-T Network Adapter Module on the rear panel of the 4012 or
4024 Alcatel OmniAccess WLAN Switch.
•
Using the Phillips screwdriver, remove the cover from the Network Adapter Module slot. Store
the Network Adapter Module slot cover for later use.
