Step 3: Preparing Mounting Locations
On your map, you should have the OmniAccess AP 1200 or 1250 locations, mounting options, and
power options.
Note:
metal Projection-Mount and Flush-Mount brackets (not the Ceiling-Mount Base or the
Hanging-Ceiling Clips) and are powered using Power Over Ethernet (POE) to comply
with safety regulations.
•
Find the required mounting locations.
•
Use the ceiling-mount base to mark the wall or ceiling locations for sheet metal, drywall, or
other screws. Make sure you leave enough space around the OmniAccess AP 1200 or 1250 and
base to plug the CAT-5 cable, optional power supply cable, and optional Kensington MicroSaver
Security Cable into the sides of the OmniAccess AP 1200 or 1250.
Figure -

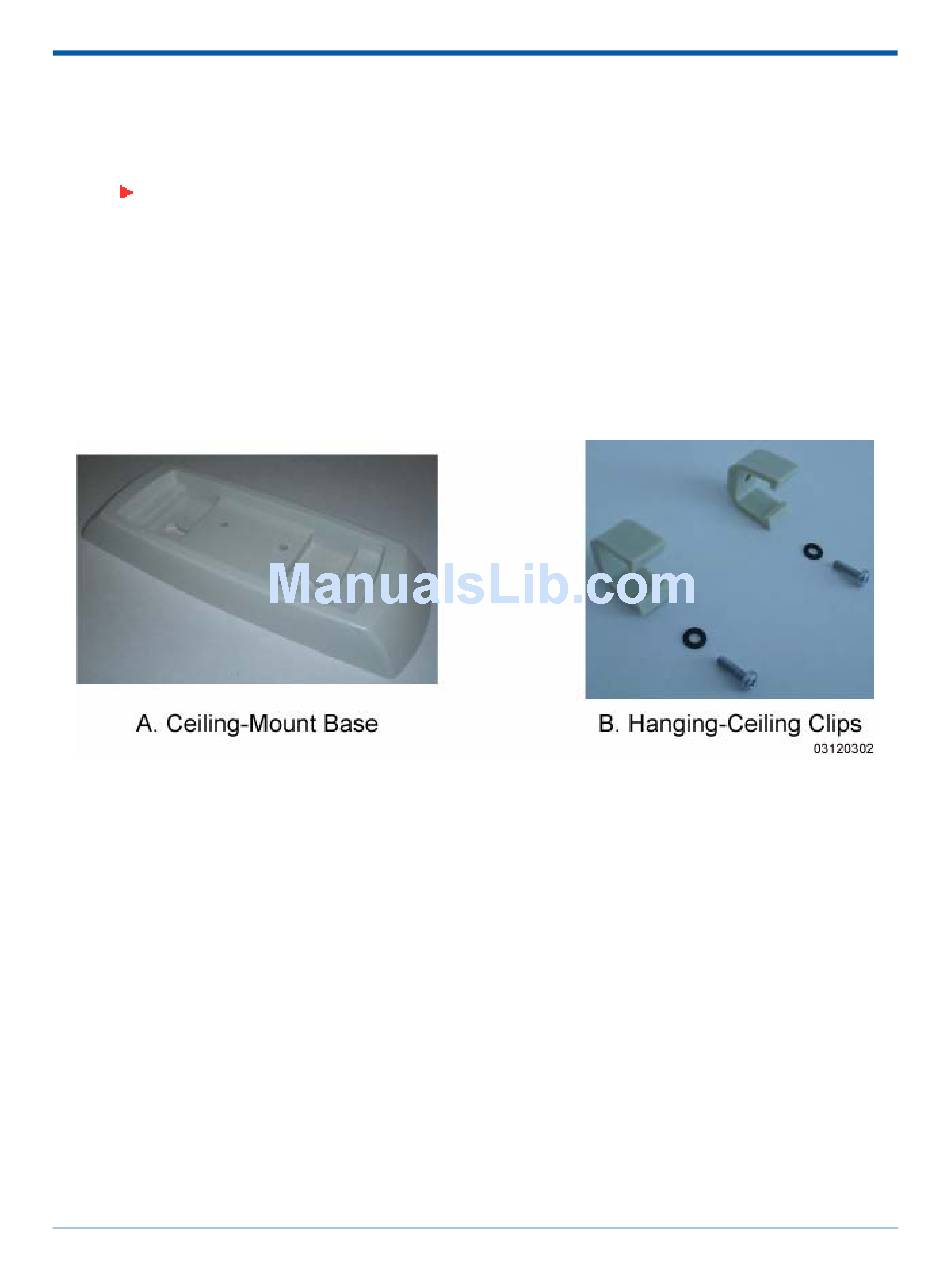

Factory-Supplied Mounting Options
•
Alternatively, attach the hanging ceiling clips to the OmniAccess AP 1200 or 1250. Make sure
you leave enough space around the OmniAccess AP 1200 or 1250 to plug the CAT-5 cable,
optional power supply cable, and optional Kensington MicroSaver Security Cable into the sides
of the OmniAccess AP 1200 or 1250.
•
Alternatively, use the optional mounting bases and/or brackets to mark the wall or ceiling
locations for sheet metal, drywall, or other screws. Make sure you leave enough space around
the OmniAccess AP 1200 or 1250 and brackets to plug the CAT-5 cable, optional power supply
cable, and optional Kensington MicroSaver Security Cable into the sides of the OmniAccess AP
1200 or 1250.
