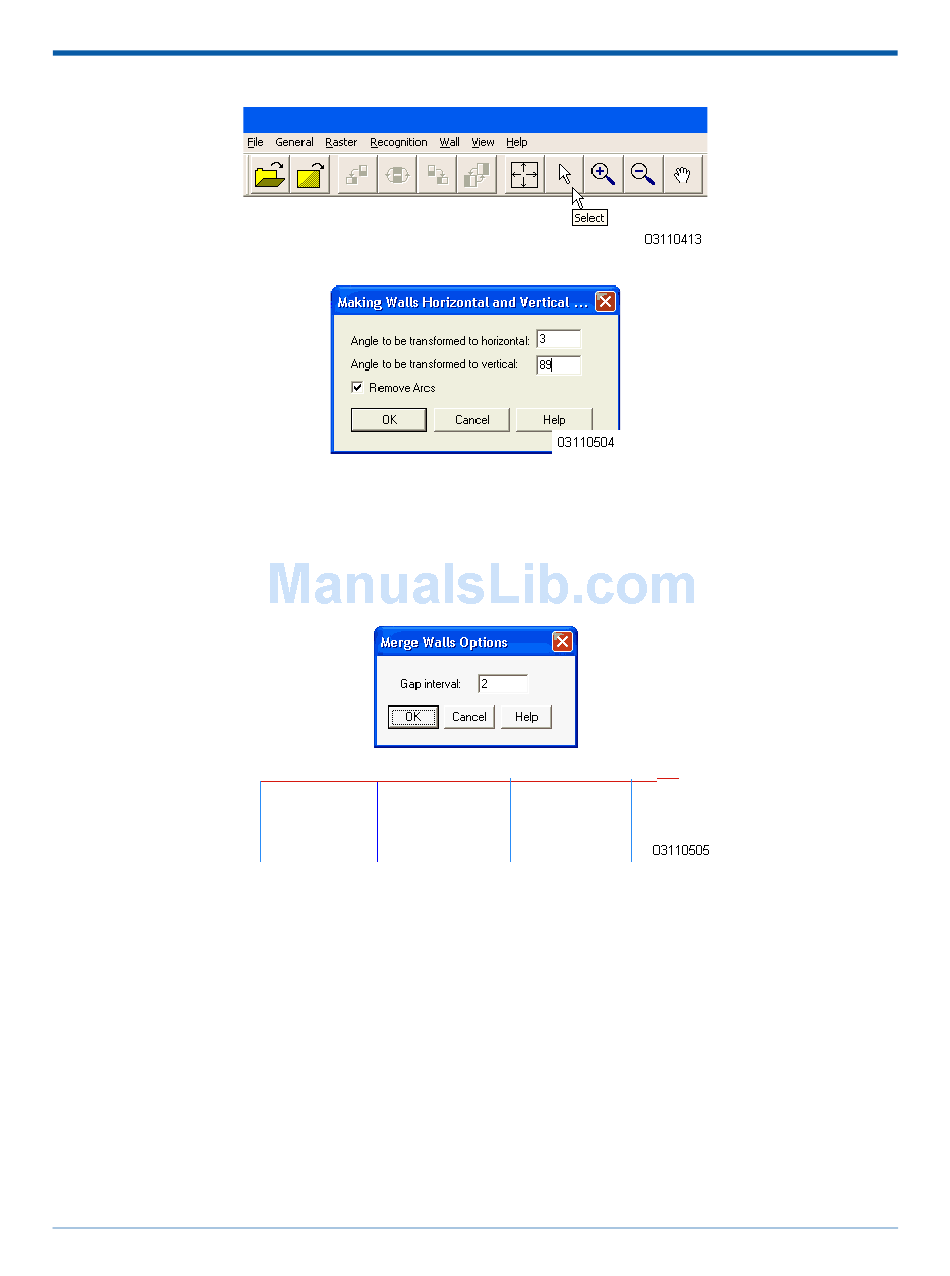

If your walls are broken, select all of the wall segments and use the Wall/Merge
Walls command to display the Merge Walls Options dialog box. In the Merge Walls
Options dialog box, start with a Gap Interval of 2 pixels, and click OK to merge the
wall segments. If the selected wall segments do not merge, try again with a larger Gap
Interval (3 or more pixels).
-
If your walls are not on the horizontal or vertical axes, they may appear as broken
lines. If so, use the Select tool to select the wall segments, and click Delete to delete
the line segments. After you remove the line segments, use the Add Wall tool to add
unbroken lines.
11/5/04
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide 10
Using the ACS Floor Plan Editor
