Figure -

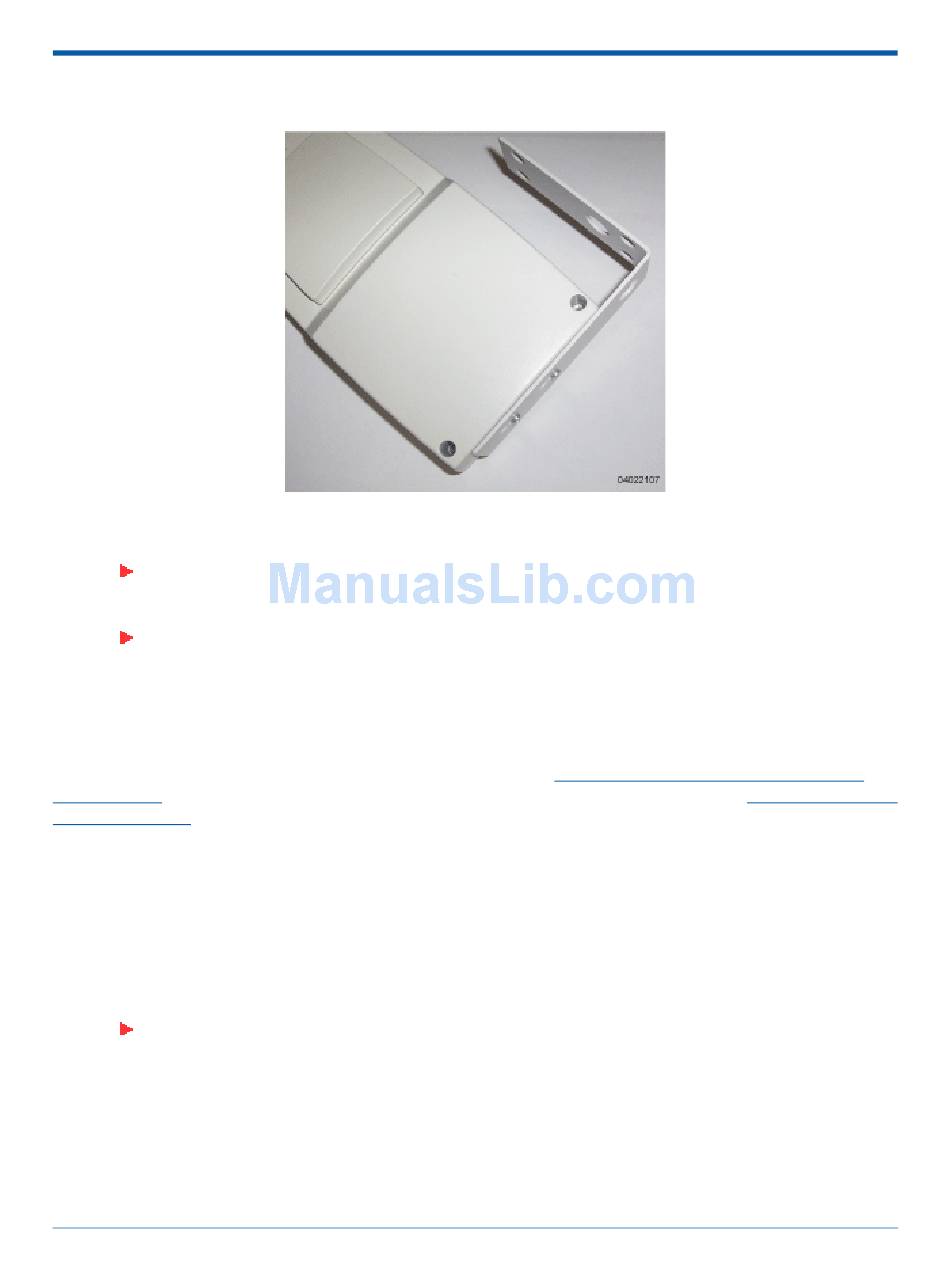

Assembling the OmniAccess AP 1200 or 1250 to the Projection-Mount Bracket
•
Attach the cables to the sides of the OmniAccess AP 1200 or 1250.
Note:
antennas.
Note:
an Alcatel OmniAccess Switch or Appliance (Green/Power and Yellow/802.11b/g and/
or Yellow or Amber/802.11a LEDs lit), the OmniAccess AP 1200 or 1250 begins
broadcasting its beacon signal(s). When this happens, complete the installation as
quickly as possible to remove yourself from within 8 inches (20 cm) of the Omni-
Access AP 1200 or 1250 to comply with FCC RF radiation exposure guidelines.
You have installed the OmniAccess AP 1200 or 1250. Repeat
Access Points for each OmniAccess AP 1200 or 1250 location, and then continue with
MAC Information.
Flush Wall Mount
Flush Wall Mount
When you are mounting the OmniAccess AP 1200 or 1250 against a wall (flat side toward the inside of
the building), use an optional separately-orderable flush-mount bracket.
•
Before proceeding, gently screw the two factory-supplied screws and spring washers into the
bottom of the OmniAccess AP 1200 or 1250. Make sure the spring washers have their convex
(high center sections) pointing toward the screw heads.
Note:
threads. Do not overtighten the screws, or the bracket will not fit under the screw
heads.
