Alcatel OmniAccess Wireless System 2.1 Product Manual page 898

Figure -

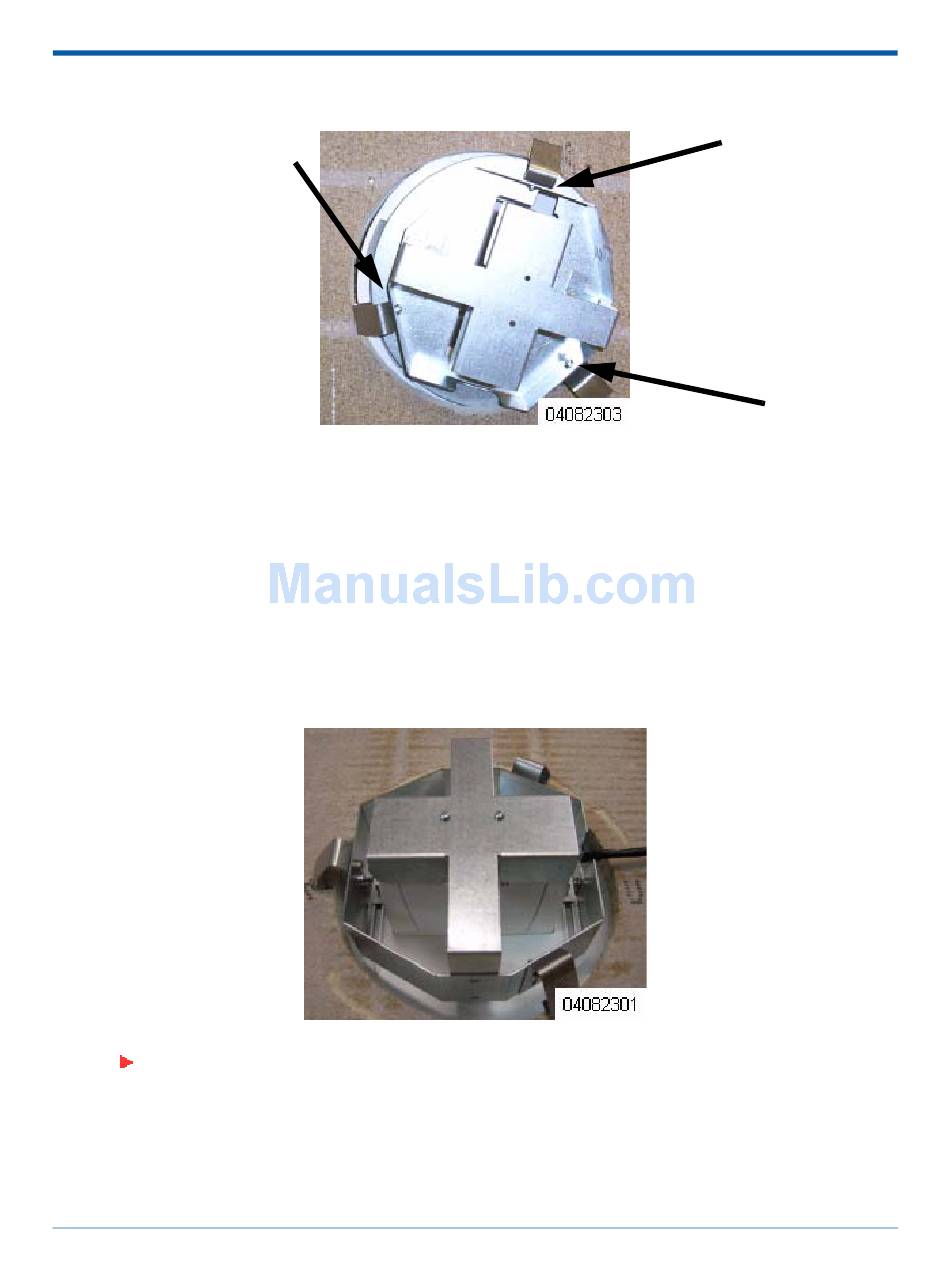

Bracket from Plenum Side Showing Adjustment Screw Locations
12.
When you are installing the Ceiling-Mount Bezelkit in a ceiling tile, reposition the ceiling tile into
which you have installed the Ceiling-Mount Bezel kit and the OmniAccess AP 1200 or 1250 into
the ceiling.
13.
To ensure that the OmniAccess AP 1200 or 1250 does not fall from the ceiling, you can attach a
wire from the metal installation bracket to any secure part of the building structure.
14.
Route the CAT-5, Ethernet cable and optional power supply to where they can plug into the
OmniAccess AP 1200 or 1250. Make sure to leave about 6 inches (15 cm) of slack in the cables
for future modifications. Note that using an optional External Power Supply instead of Power of
Ethernet (PoE) requires that the power supply cable be fully enclosed in a metal conduit to
meet safety requirements.
Figure -
Cable Plugged into the OmniAccess AP 1200 or 1250 as Viewed from the Plenum Side.
Note:
antennas.
11/5/04 Step 3: Installing the Ceiling-Mount Bezel Kit and OmniAccess AP 1200 or 1250
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide
Make sure the cables are routed away from the OmniAccess AP 1200 or 1250
7
