Alcatel OmniAccess Wireless System 2.1 Product Manual page 935

•

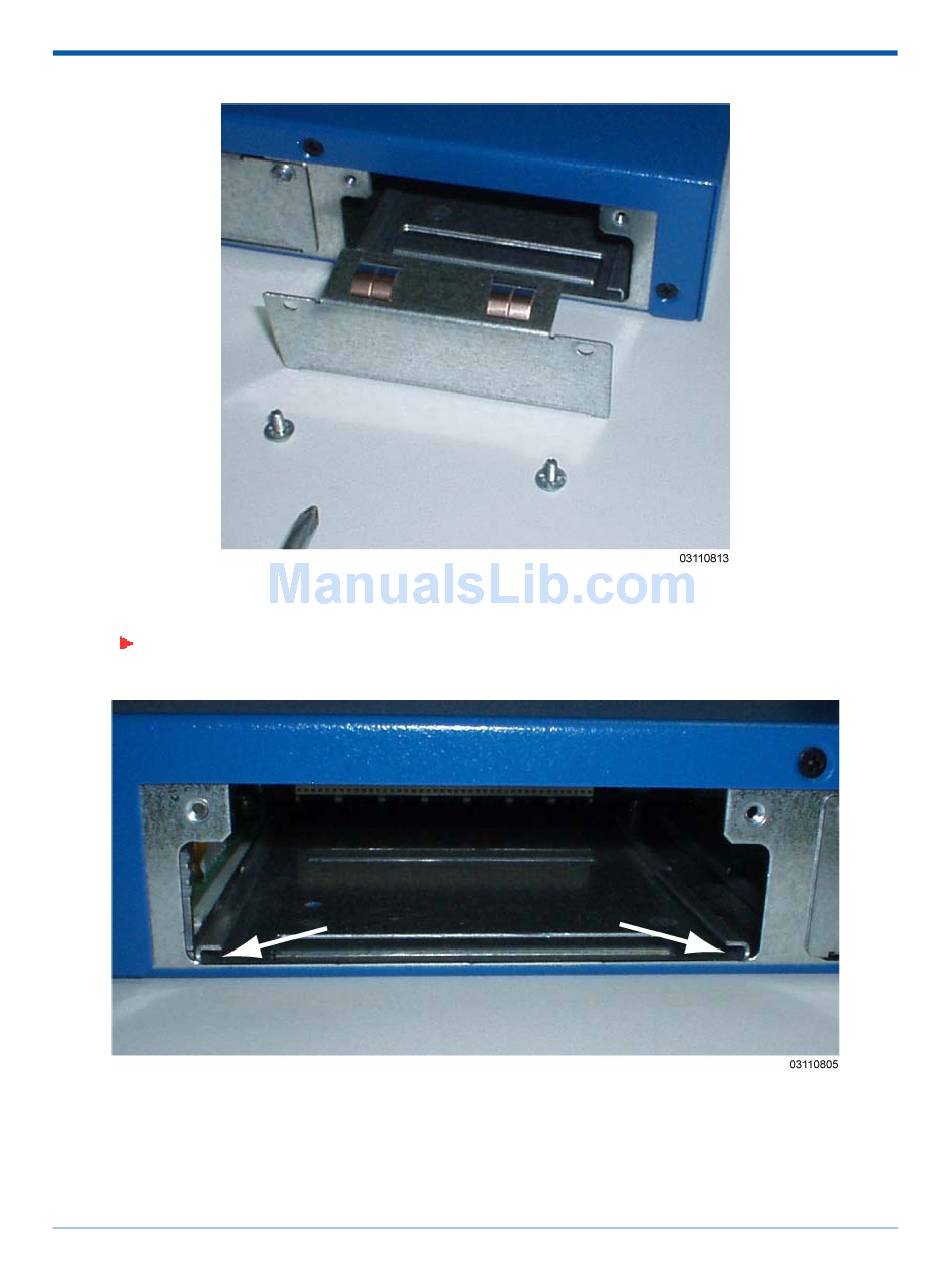

Note the card rails on each side of the Network Adapter Module slot.
Note:
below these rails.
•
Insert the 1000Base-SX Network Adapter Module in the slot. Make sure the 1000Base-SX
Network Adapter Module guide is between and below the slot rails.
11/5/04
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide
The metal Network Adapter Module guide must be installed between and
Installing the 1000Base-SX Network Adapter Module
4
