7.
Using the screws provided with the OmniAccess AP 1200 or 1250, secure the OmniAccess AP
1200 or 1250 to the Installation Bracket the from the plenum side of the tile or drywall. If the
screw holes on the OmniAccess AP 1200 or 1250 are not aligned, remove the OmniAccess AP
1200 or 1250, turn it and re-insert it in the bracket.

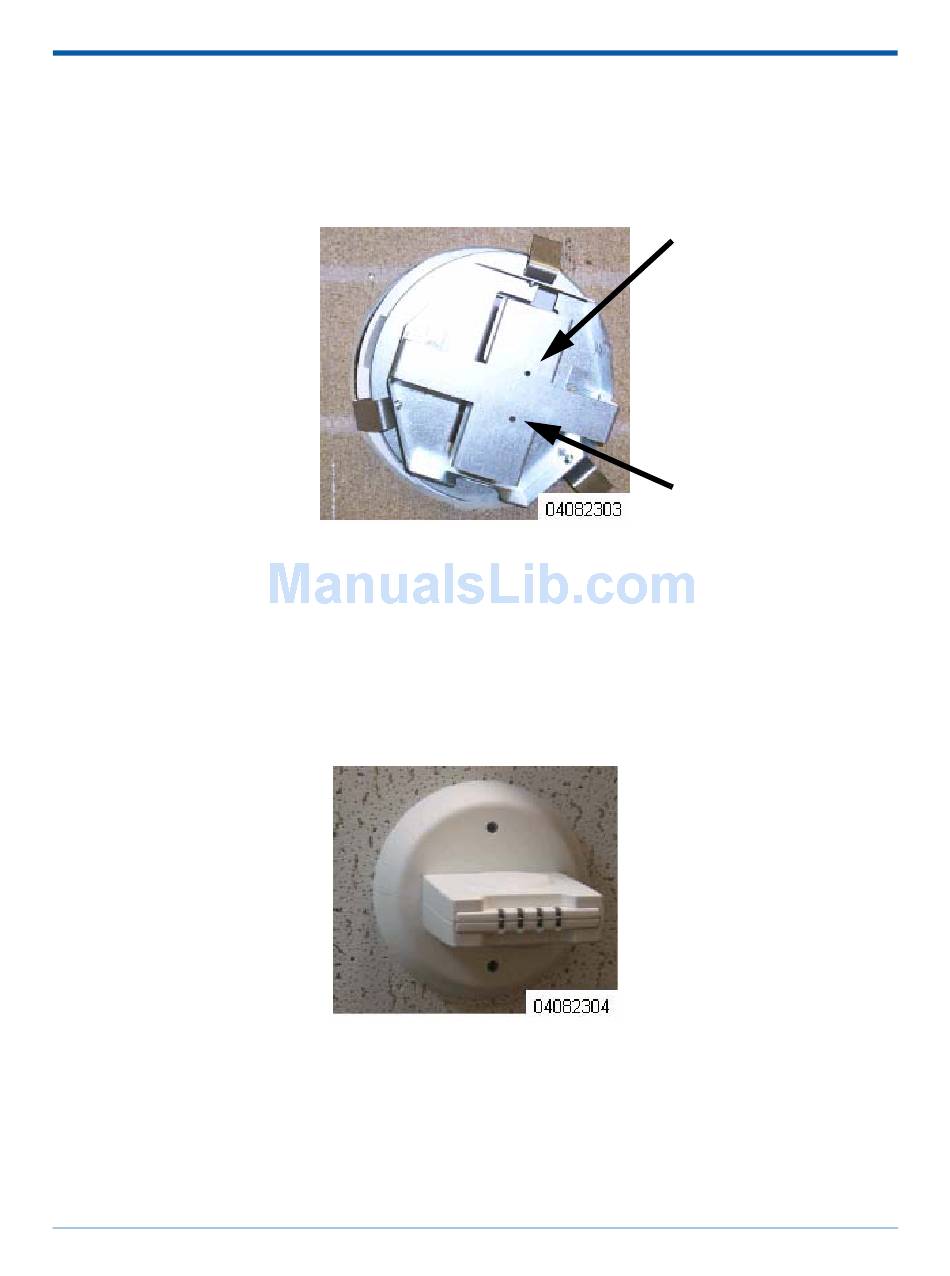

Figure -
Locations of OmniAccess AP 1200 or 1250-to-Bracket Mounting Screws from Plenum Side
8.
From the ceiling side of the tile or drywall, use one of the provided screws to attach one half of
the cover bezel. Do not tighten the screw.
9.
Snap the other half of the bezel into the first half and attach it with the other provided screw.
Do not tighten the screw.
10.
Tighten the bezel screws so that the bezel is firmly attached around the OmniAccess AP 1200 or
1250. Make sure that the bracket and bezel are snug, but not so tight that the Omni-
Note:
Access AP 1200 or 1250 cannot be rotated from the ceiling side.
Figure -
OmniAccess AP 1200 or 1250 Installed in Bezel
11.
For further adjustment, use the three tension holders on the plenum side of the tile or drywall
by loosening the screw, adjusting the tension holder and re-tightening the screw. The following
figure shows the tension holder adjustment screw locations.
