When you are done with the bitmap graphic cleanup, you should have a one-pixel wide outline of all
walls, including doors, tinted and/or colored windows, and metal-lined cubicle walls. Any doors that are
normally open and clear windows should be removed from the bitmap.
3.

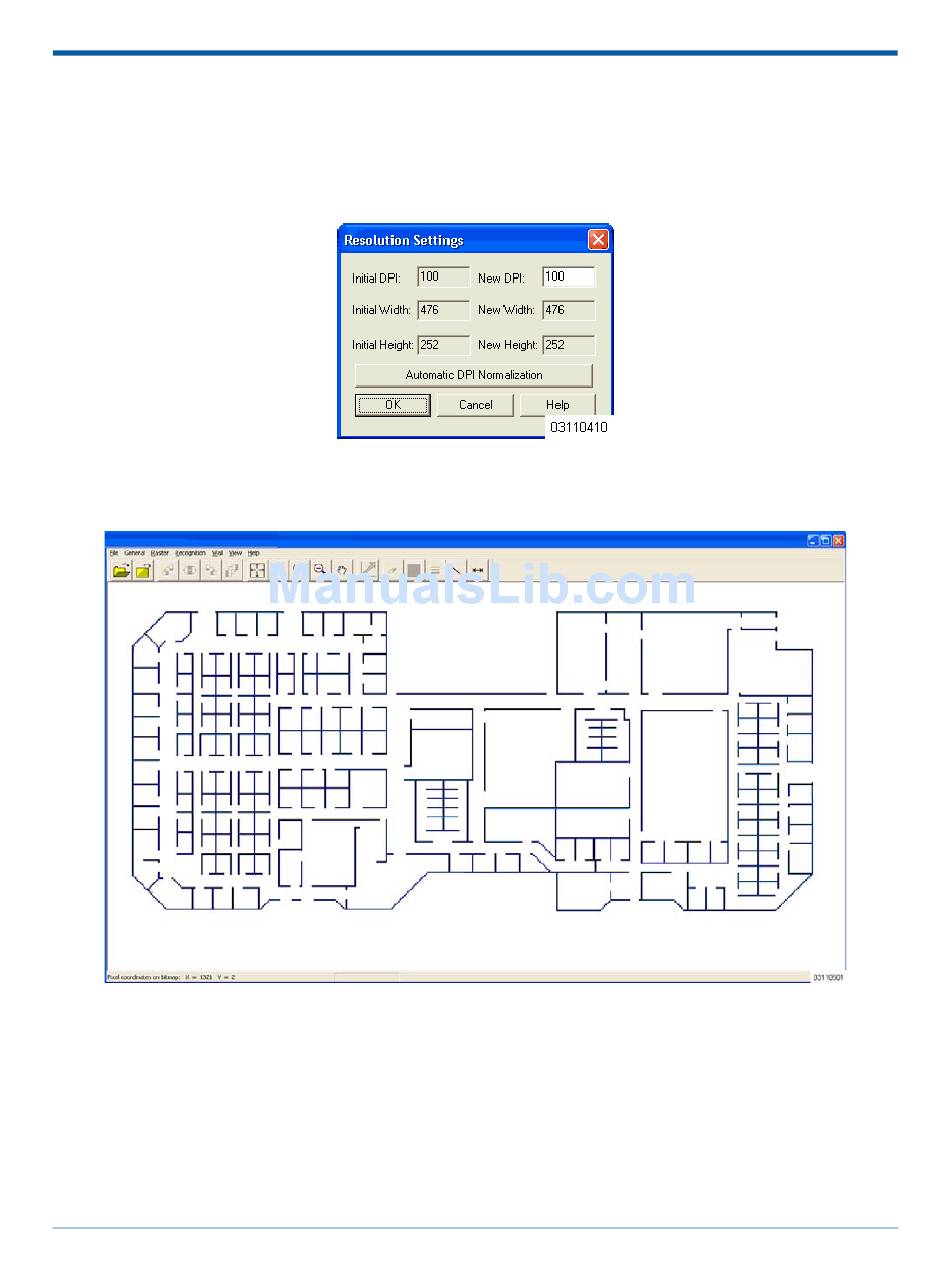

Use the Raster/Resolution command to select Automatic DPI Normalization between 100
and 400 dpi.
4.
After you are done cleaning up the floor plan graphic and applying Automatic DPI Normaliza-
tion, use the Recognition/Vectorize (F12) command to vectorize the graphic.
The ACS Floor Plan Editor overlays the modified bitmapped graphic with blue wall lines. You are
going to edit these wall lines in the next step.
5.
Use the View/Show Raster (R) command to toggle the bitmap background on and off to
make editing easier.
