Alcatel OmniAccess Wireless System 2.1 Product Manual page 879

Figure -

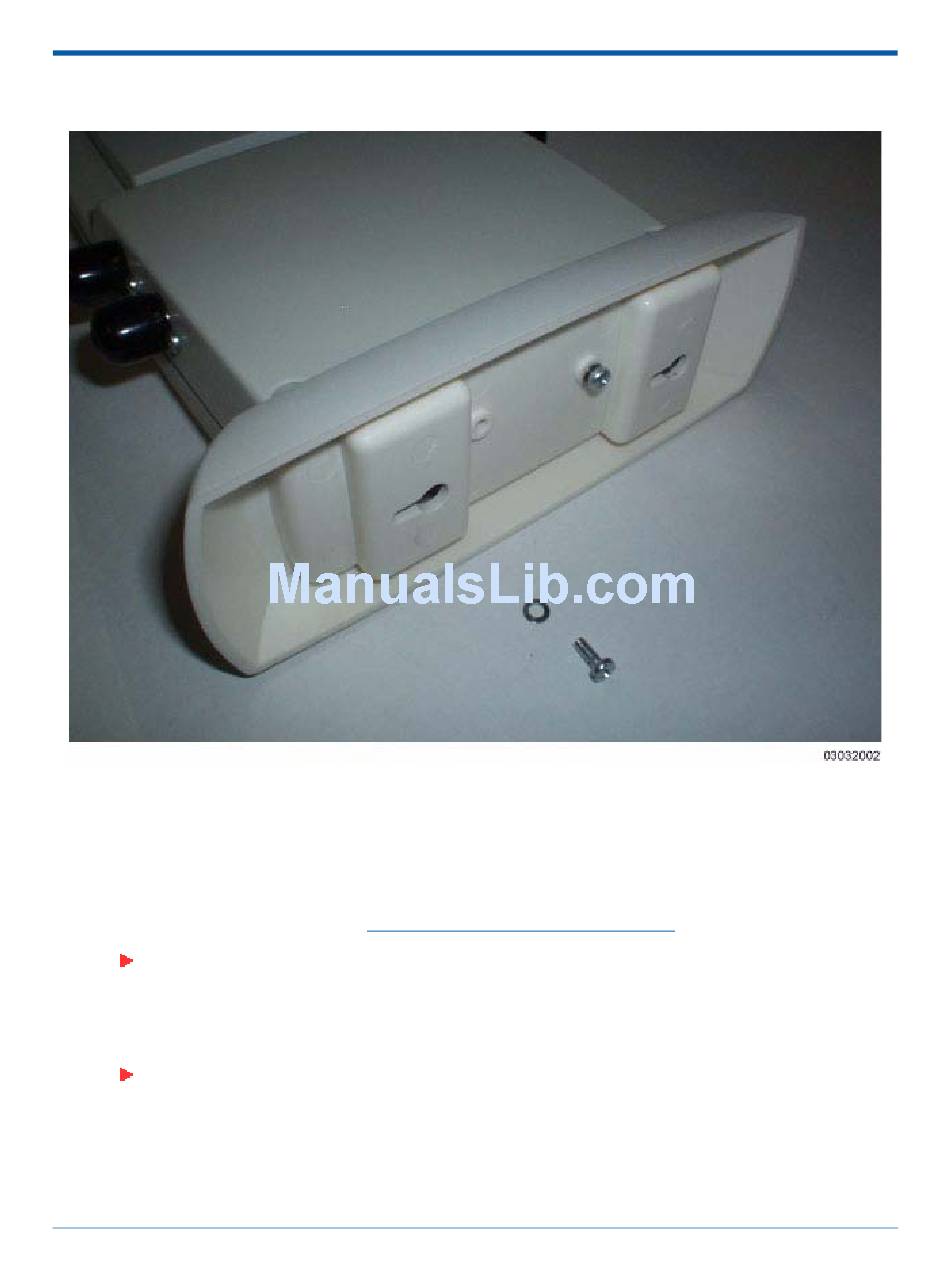

Assembling the OmniAccess AP 1200 or 1250 and Ceiling-Mount Base
•
Copy the MAC address(es) from the label(s) on the OmniAccess AP 1200 or 1250 onto the
corresponding location on the map. MAC addresses have the format 000B85xxxxxx.
•
Attach the ceiling-mount base to the bottom of the OmniAccess AP 1200 or 1250 using the
factory-supplied machine screws and washers.
•
Position the ceiling-mount base so its keyhole slots are partly on the drywall, sheet metal, or
other screw heads installed in
Note:
Access AP 1200 or 1250 and adjust the screws until they hold the ceiling-mount base
securely.
•
Attach the cables to the sides of the OmniAccess AP 1200 or 1250.
Note:
an Alcatel OmniAccess Switch or Appliance (Green/Power and Yellow/802.11b/g and/
or Yellow or Amber/802.11a LEDs lit), the OmniAccess AP 1200 or 1250 is broad-
casting its beacon signal(s). When this happens, complete the installation as quickly
as possible to remove yourself from within 8 inches (20 cm) of the OmniAccess AP
1200 or 1250 to comply with FCC RF radiation exposure guidelines.
11/5/04
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide 14
Step 3: Preparing Mounting
If the screws do not securely hold the ceiling-mount base, remove the Omni-
When the OmniAccess AP 1200 or 1250 is powered up and is associated with
Step 4: Mounting the OmniAccess AP Access Points
Locations.
