Operating manual
GMK4100L-1

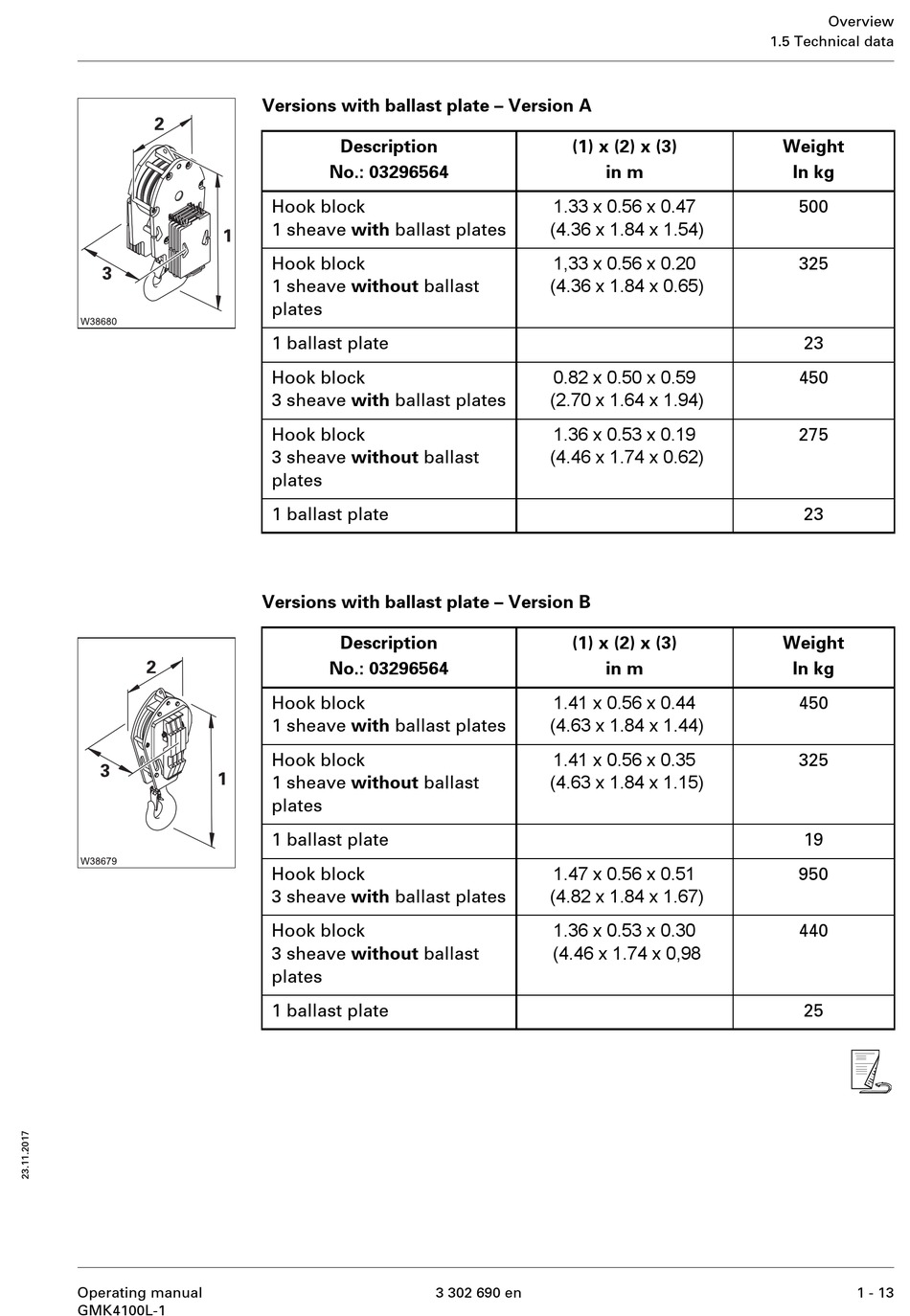

Versions with ballast plate – Version A
Description
No.: 03296564
Hook block
1 sheave with ballast plates
Hook block
1 sheave without ballast
plates
1 ballast plate
Hook block
3 sheave with ballast plates
Hook block
3 sheave without ballast
plates
1 ballast plate
Versions with ballast plate – Version B
Description
No.: 03296564
Hook block
1 sheave with ballast plates
Hook block
1 sheave without ballast
plates
1 ballast plate
Hook block
3 sheave with ballast plates
Hook block
3 sheave without ballast
plates
1 ballast plate
(1) x (2) x (3)
in m
1.33 x 0.56 x 0.47
(4.36 x 1.84 x 1.54)
1,33 x 0.56 x 0.20
(4.36 x 1.84 x 0.65)
0.82 x 0.50 x 0.59
(2.70 x 1.64 x 1.94)
1.36 x 0.53 x 0.19
(4.46 x 1.74 x 0.62)
(1) x (2) x (3)
in m
1.41 x 0.56 x 0.44
(4.63 x 1.84 x 1.44)
1.41 x 0.56 x 0.35
(4.63 x 1.84 x 1.15)
1.47 x 0.56 x 0.51
(4.82 x 1.84 x 1.67)
1.36 x 0.53 x 0.30
(4.46 x 1.74 x 0,98
3 302 690 en
Overview
1.5 Technical data
Weight
In kg
500
325
23
450
275
23
Weight
In kg
450
325
19
950
440
25
s
1 - 13
