Operating manual
GMK4100L-1

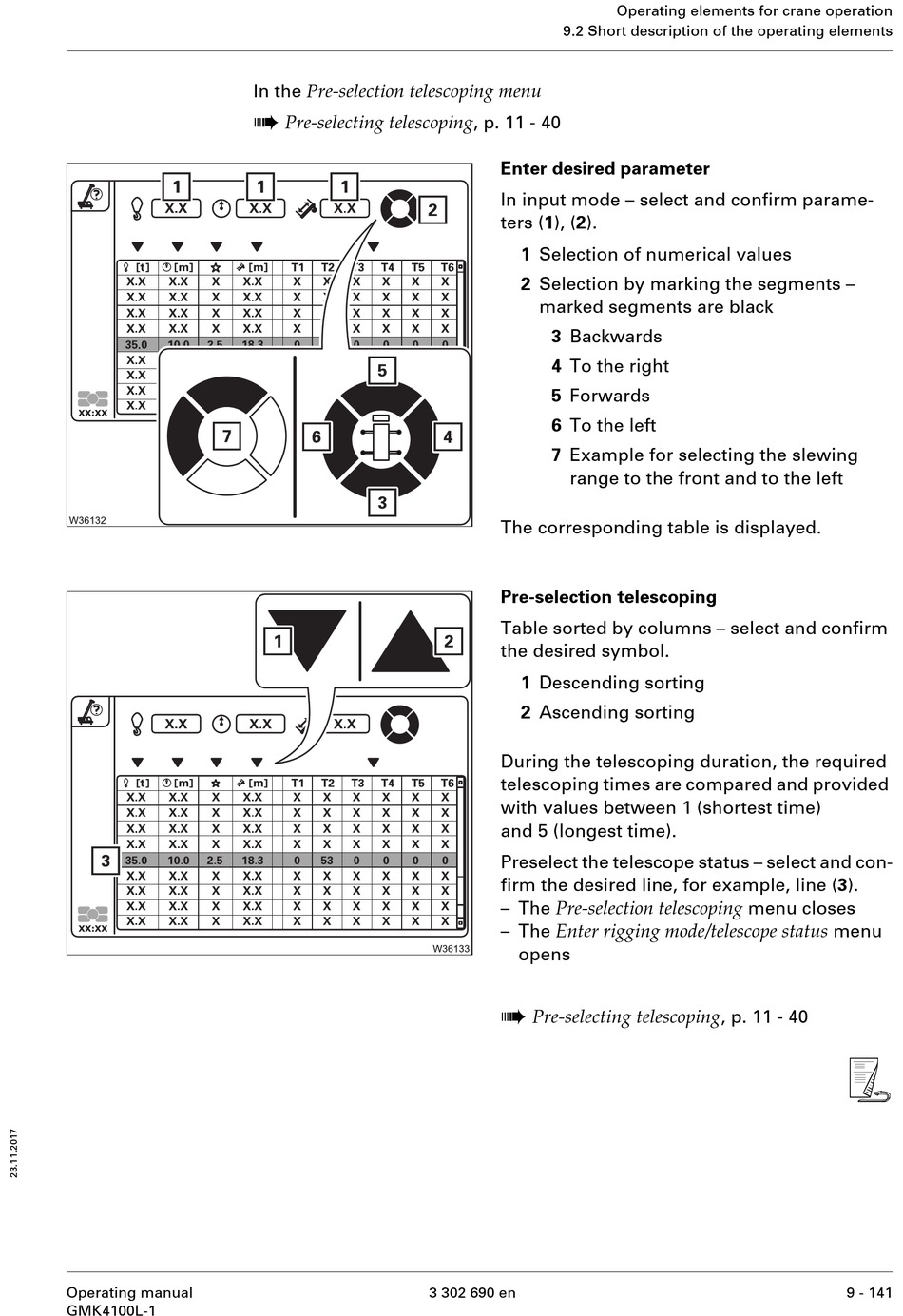

In the Pre-selection telescoping menu
à
Pre-selecting telescoping , p. 11 - 40
9.2 Short description of the operating elements
Enter desired parameter
In input mode – select and confirm parame-
ters (1), (2).
1 Selection of numerical values
2 Selection by marking the segments –
marked segments are black
3 Backwards
4 To the right
5 Forwards
6 To the left
7 Example for selecting the slewing
range to the front and to the left
The corresponding table is displayed.
Pre-selection telescoping
Table sorted by columns – select and confirm
the desired symbol.
1 Descending sorting
2 Ascending sorting
During the telescoping duration, the required
telescoping times are compared and provided
with values between 1 (shortest time)
and 5 (longest time).
Preselect the telescope status – select and con-
firm the desired line, for example, line (3).
– The Pre-selection telescoping menu closes
– The Enter rigging mode/telescope status menu
opens
à
Pre-selecting telescoping , p. 11 - 40
3 302 690 en
Operating elements for crane operation
s
9 - 141
