6.4.3
Operating manual
GMK4100L-1

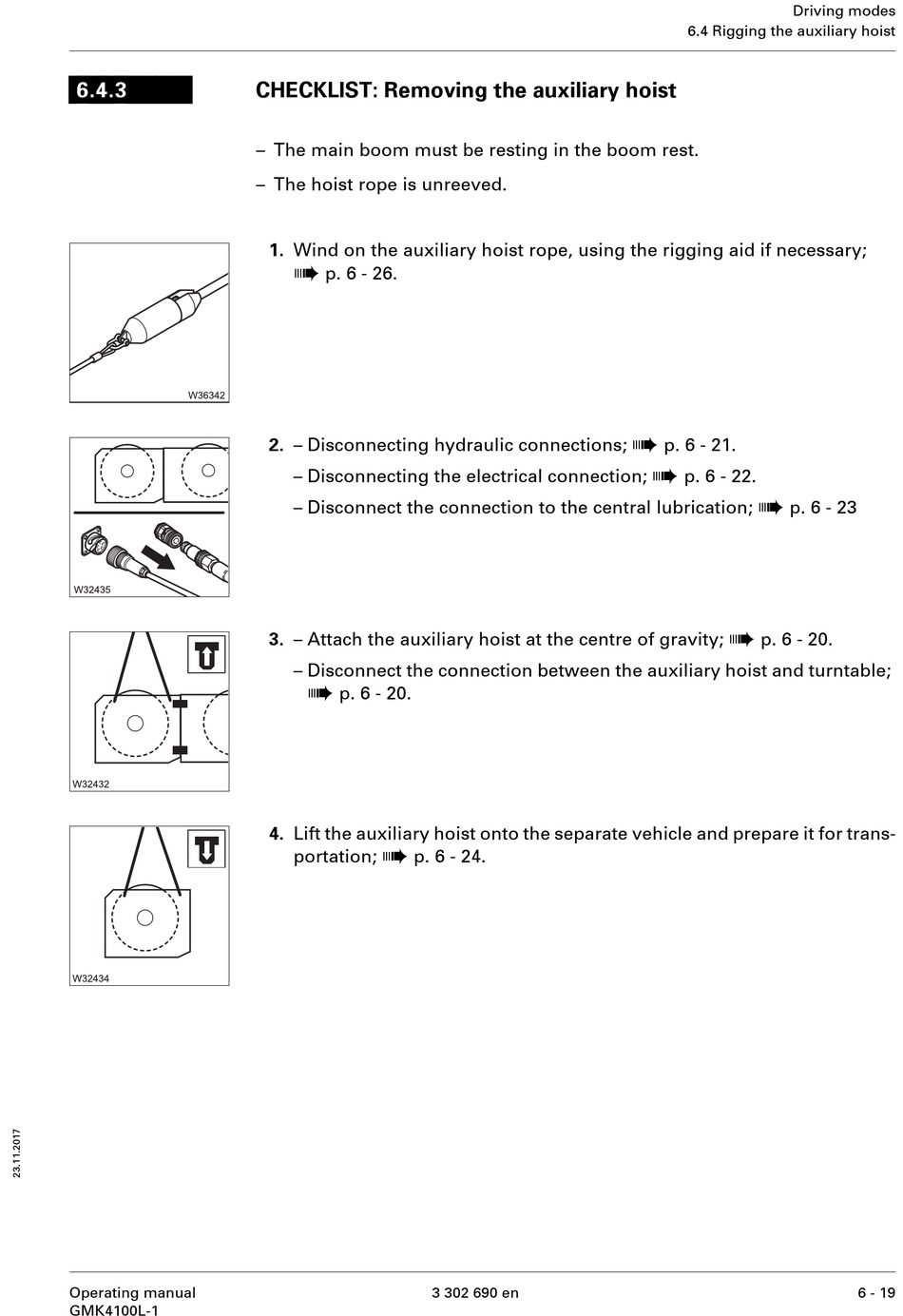

CHECKLIST: Removing the auxiliary hoist

– The main boom must be resting in the boom rest.
– The hoist rope is unreeved.
1. Wind on the auxiliary hoist rope, using the rigging aid if necessary;
à
p. 6 - 26.
2. – Disconnecting hydraulic connections;
– Disconnecting the electrical connection;
– Disconnect the connection to the central lubrication;
3. – Attach the auxiliary hoist at the centre of gravity;
– Disconnect the connection between the auxiliary hoist and turntable;
à
p. 6 - 20.
4. Lift the auxiliary hoist onto the separate vehicle and prepare it for trans-
à
portation; p. 6 - 24.
3 302 690 en
Driving modes
6.4 Rigging the auxiliary hoist
à
p. 6 - 21.
à
p. 6 - 22.
à
p. 6 - 23
à
p. 6 - 20.
6 - 19
