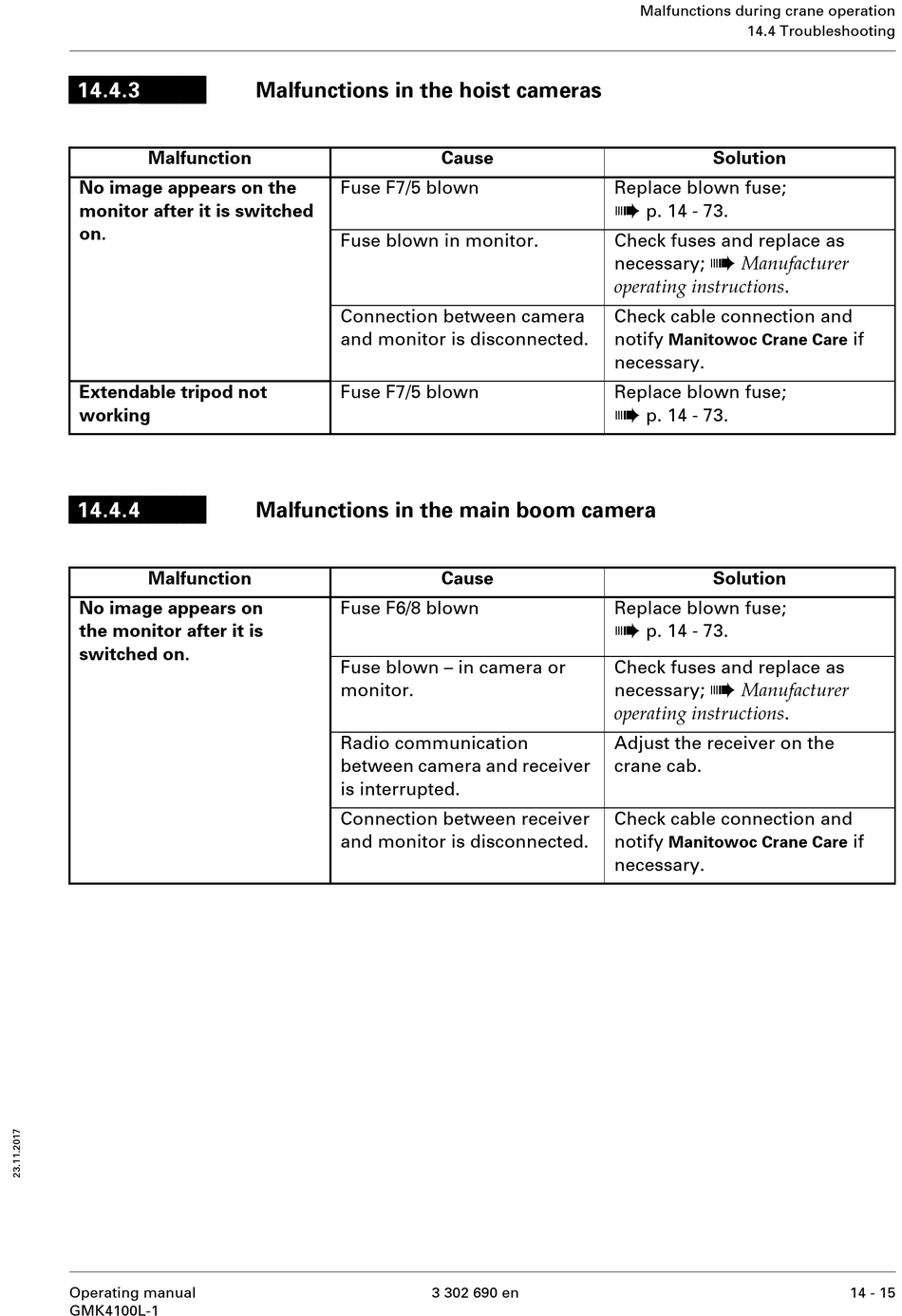

Malfunctions In The Hoist Cameras; Malfunctions In The Main Boom Camera - Manitowoc Grove GMK4100L-1 Operating Manual

14.4.3
Malfunction
No image appears on the
monitor after it is switched
on.
Extendable tripod not
working
14.4.4
Malfunction
No image appears on
the monitor after it is
switched on.
Operating manual
GMK4100L-1

Malfunctions in the hoist cameras

Fuse F7/5 blown
Fuse blown in monitor.
Connection between camera
and monitor is disconnected.
Fuse F7/5 blown

Malfunctions in the main boom camera

Fuse F6/8 blown
Fuse blown – in camera or
monitor.
Radio communication
between camera and receiver
is interrupted.
Connection between receiver
and monitor is disconnected.
Cause
Cause
3 302 690 en
Malfunctions during crane operation
14.4 Troubleshooting
Solution
Replace blown fuse;
à
p. 14 - 73.
Check fuses and replace as
à
Manufacturer
necessary;
operating instructions .
Check cable connection and
notify
Manitowoc Crane Care
necessary.
Replace blown fuse;
à
p. 14 - 73.
Solution
Replace blown fuse;
à
p. 14 - 73.
Check fuses and replace as
à
Manufacturer
necessary;
operating instructions .
Adjust the receiver on the
crane cab.
Check cable connection and
notify
Manitowoc Crane Care
necessary.
if
if
14 - 15
