Operating manual
GMK4100L-1

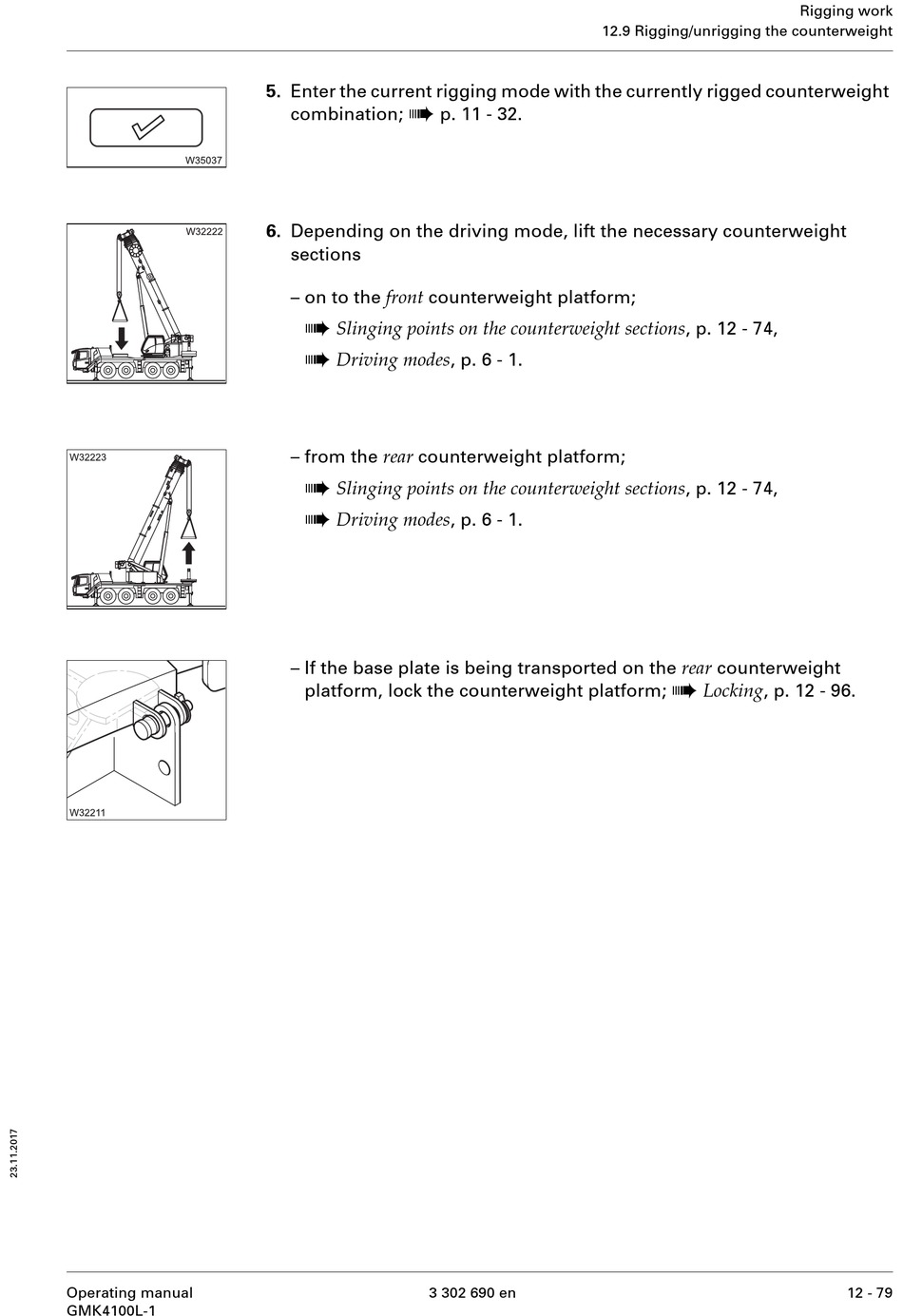

5. Enter the current rigging mode with the currently rigged counterweight
à
combination;
6. Depending on the driving mode, lift the necessary counterweight
sections
– on to the front counterweight platform;
à
Slinging points on the counterweight sections , p. 12 - 74,
à
Driving modes , p. 6 - 1.
– from the rear counterweight platform;
à
Slinging points on the counterweight sections , p. 12 - 74,
à
Driving modes , p. 6 - 1.
– If the base plate is being transported on the rear counterweight
platform, lock the counterweight platform;
3 302 690 en
12.9 Rigging/unrigging the counterweight
p. 11 - 32.
Rigging work
à
Locking , p. 12 - 96.
12 - 79
