Rigging work

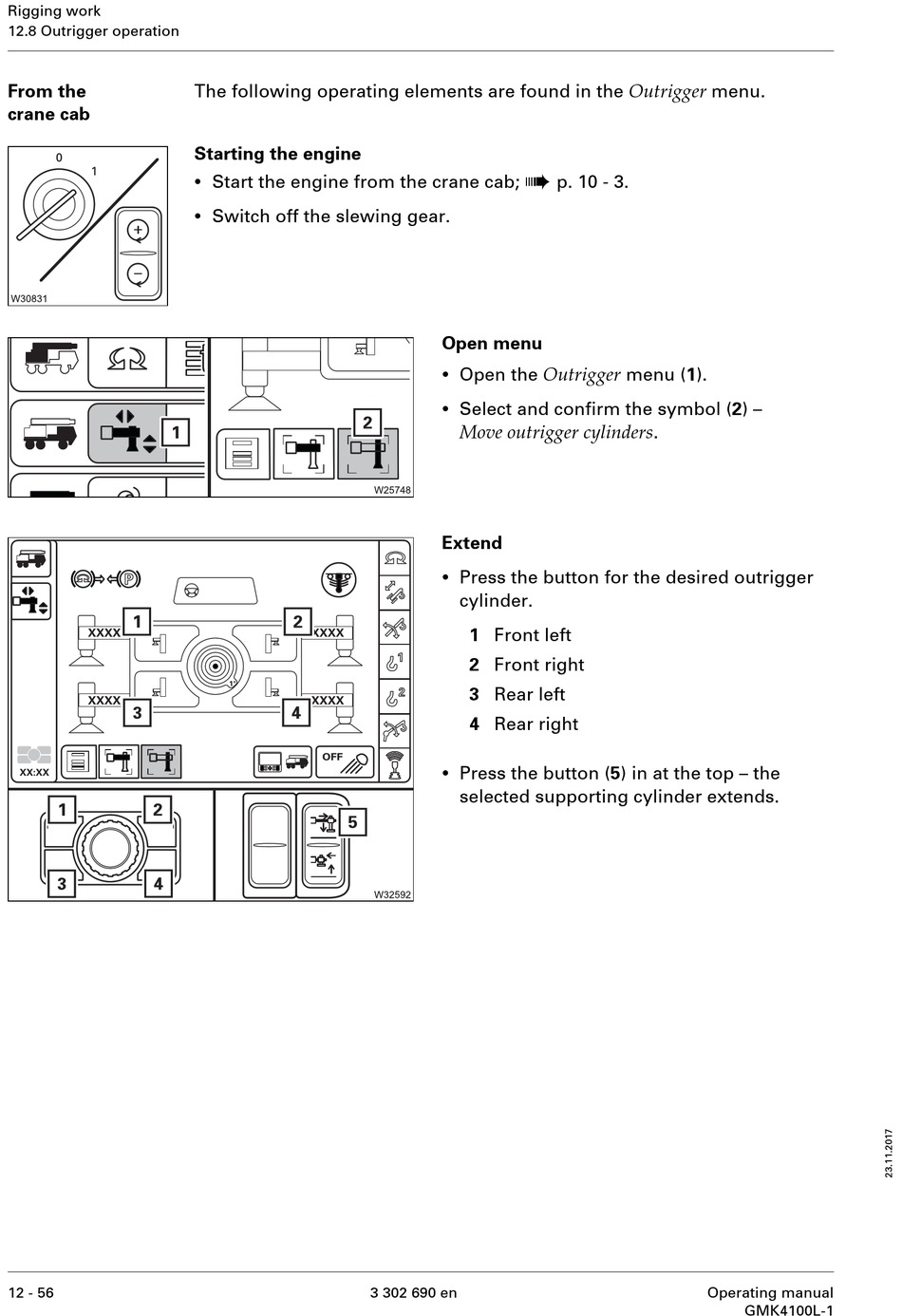

12.8 Outrigger operation
From the
crane cab
12 - 56
The following operating elements are found in the Outrigger menu.
Starting the engine
•
Start the engine from the crane cab;
•
Switch off the slewing gear.
à
Open menu
•
Open the Outrigger menu (1).
•
Select and confirm the symbol (2) –
Move outrigger cylinders .
Extend
•
Press the button for the desired outrigger
cylinder.
1 Front left
2 Front right
3 Rear left
4 Rear right
•
Press the button (5) in at the top – the
selected supporting cylinder extends.
3 302 690 en
p. 10 - 3.
Operating manual
GMK4100L-1
