1.5
1.5.1
1.5.2
Operating manual
GMK4100L-1

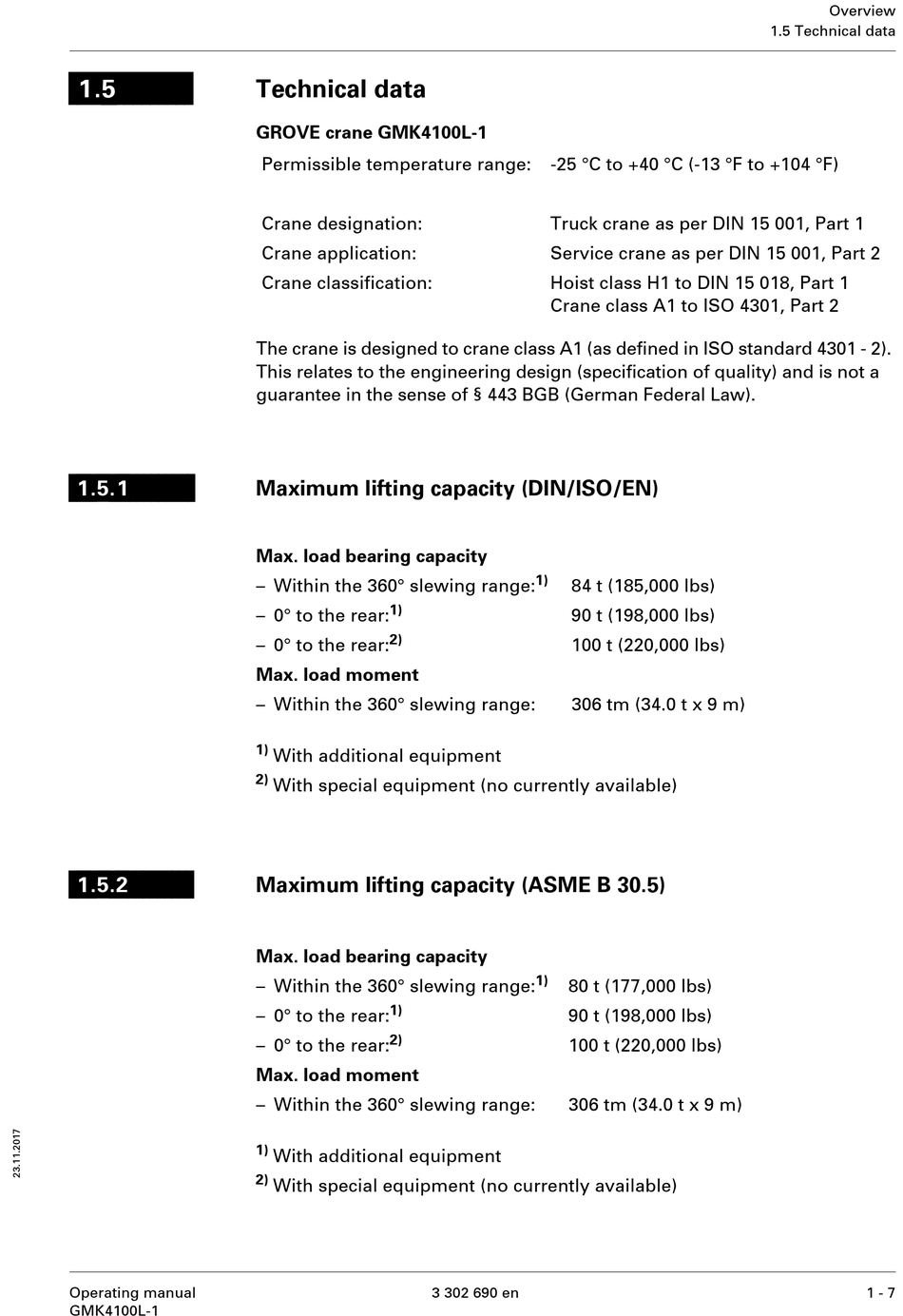

Technical data

GROVE crane GMK4100L-1
Permissible temperature range:
Crane designation:
Crane application:
Crane classification:
The crane is designed to crane class A1 (as defined in ISO standard 4301 - 2).
This relates to the engineering design (specification of quality) and is not a
guarantee in the sense of § 443 BGB (German Federal Law).

Maximum lifting capacity (DIN/ISO/EN)

Max. load bearing capacity
– Within the 360° slewing range:
1)
– 0° to the rear:
2)
– 0° to the rear:
Max. load moment
– Within the 360° slewing range:
1)
With additional equipment
2)
With special equipment (no currently available)

Maximum lifting capacity (ASME B 30.5)

Max. load bearing capacity
– Within the 360° slewing range:
1)
– 0° to the rear:
2)
– 0° to the rear:
Max. load moment
– Within the 360° slewing range:
1)
With additional equipment
2)
With special equipment (no currently available)
-25 °C to +40 °C (-13 °F to +104 °F)
Truck crane as per DIN 15 001, Part 1
Service crane as per DIN 15 001, Part 2
Hoist class H1 to DIN 15 018, Part 1
Crane class A1 to ISO 4301, Part 2
1)
84 t (185,000 lbs)
90 t (198,000 lbs)
100 t (220,000 lbs)
306 tm (34.0 t x 9 m)
1)
80 t (177,000 lbs)
90 t (198,000 lbs)
100 t (220,000 lbs)
306 tm (34.0 t x 9 m)
3 302 690 en
Overview
1.5 Technical data
1 - 7
