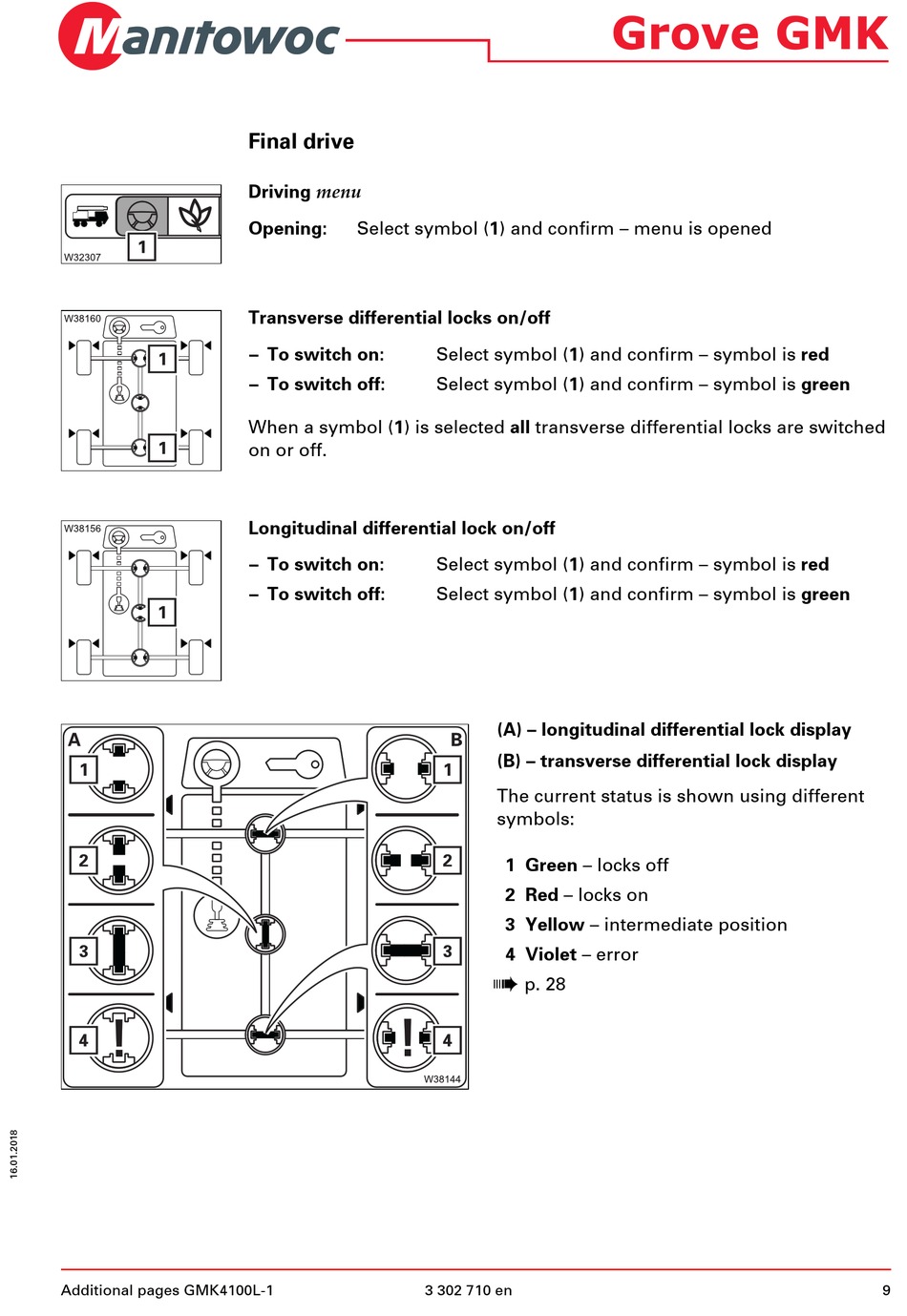

Final drive
Driving menu
Opening: Select symbol (1) and confirm – menu is opened
Transverse differential locks on/off
– To switch on:
– To switch off:
When a symbol (1) is selected all transverse differential locks are switched
on or off.
Longitudinal differential lock on/off
– To switch on:
– To switch off:
Select symbol (1) and confirm – symbol is red
Select symbol (1) and confirm – symbol is green
Select symbol (1) and confirm – symbol is red
Select symbol (1) and confirm – symbol is green
(A) – longitudinal differential lock display
(B) – transverse differential lock display
The current status is shown using different
symbols:
1 Green – locks off
2 Red – locks on
3 Yellow – intermediate position
4 Violet – error
