Final Drive - Manitowoc Grove GMK4100L-1 Operating Manual

Operating elements for driving
3.2 Short description of the operating elements
3.2.12
3 - 56

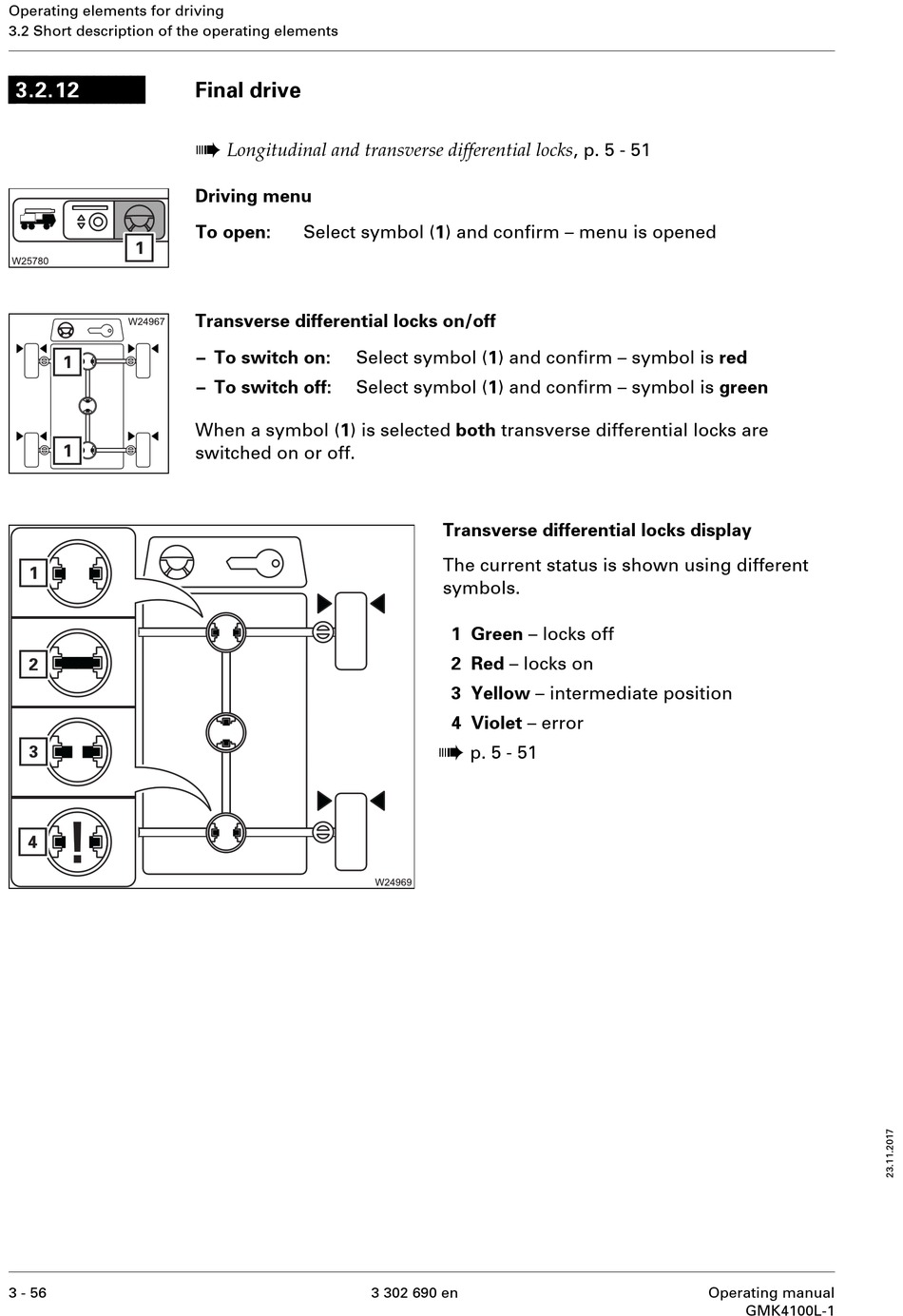

Final drive

à
Longitudinal and transverse differential locks , p. 5 - 51
Driving menu
To open: Select symbol (1) and confirm – menu is opened
Transverse differential locks on/off
– To switch on: Select symbol (1) and confirm – symbol is red
– To switch off: Select symbol (1) and confirm – symbol is green
When a symbol (1) is selected both transverse differential locks are
switched on or off.
Transverse differential locks display
The current status is shown using different
symbols.
1 Green – locks off
2 Red – locks on
3 Yellow – intermediate position
4 Violet – error
à
p. 5 - 51
3 302 690 en Operating manual
GMK4100L-1
