Fold-Up Berth - Manitowoc Grove GMK4100L-1 Operating Manual

Driving
5.3 Driving the truck crane and switching it off
5.3.8
G
5 - 48

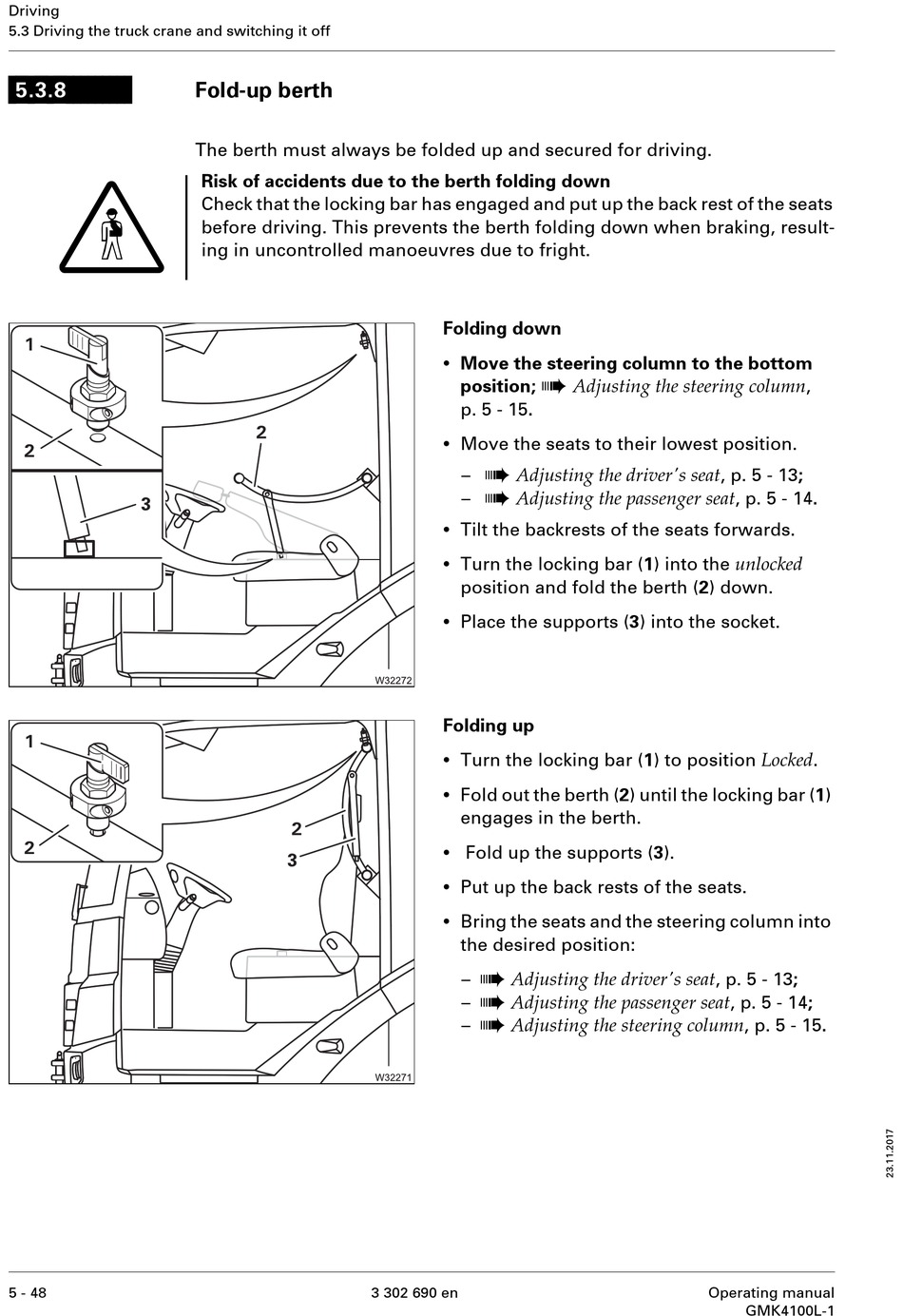

Fold-up berth

The berth must always be folded up and secured for driving.
Risk of accidents due to the berth folding down
Check that the locking bar has engaged and put up the back rest of the seats
before driving. This prevents the berth folding down when braking, result-
ing in uncontrolled manoeuvres due to fright.
Folding down
•
Move the steering column to the bottom
à
position;
p. 5 - 15.
•
Move the seats to their lowest position.
à
Adjusting the driver's seat , p. 5 - 13;
–
à
– Adjusting the passenger seat , p. 5 - 14.
•
Tilt the backrests of the seats forwards.
•
Turn the locking bar (1) into the unlocked
position and fold the berth (2) down.
•
Place the supports (3) into the socket.
Folding up
•
Turn the locking bar (1) to position Locked .
•
Fold out the berth (2) until the locking bar (1)
engages in the berth.
•
Fold up the supports (3).
•
Put up the back rests of the seats.
•
Bring the seats and the steering column into
the desired position:
à
Adjusting the driver's seat , p. 5 - 13;
–
à
– Adjusting the passenger seat , p. 5 - 14;
à
Adjusting the steering column , p. 5 - 15.
–
3 302 690 en
Adjusting the steering column ,
Operating manual
GMK4100L-1
