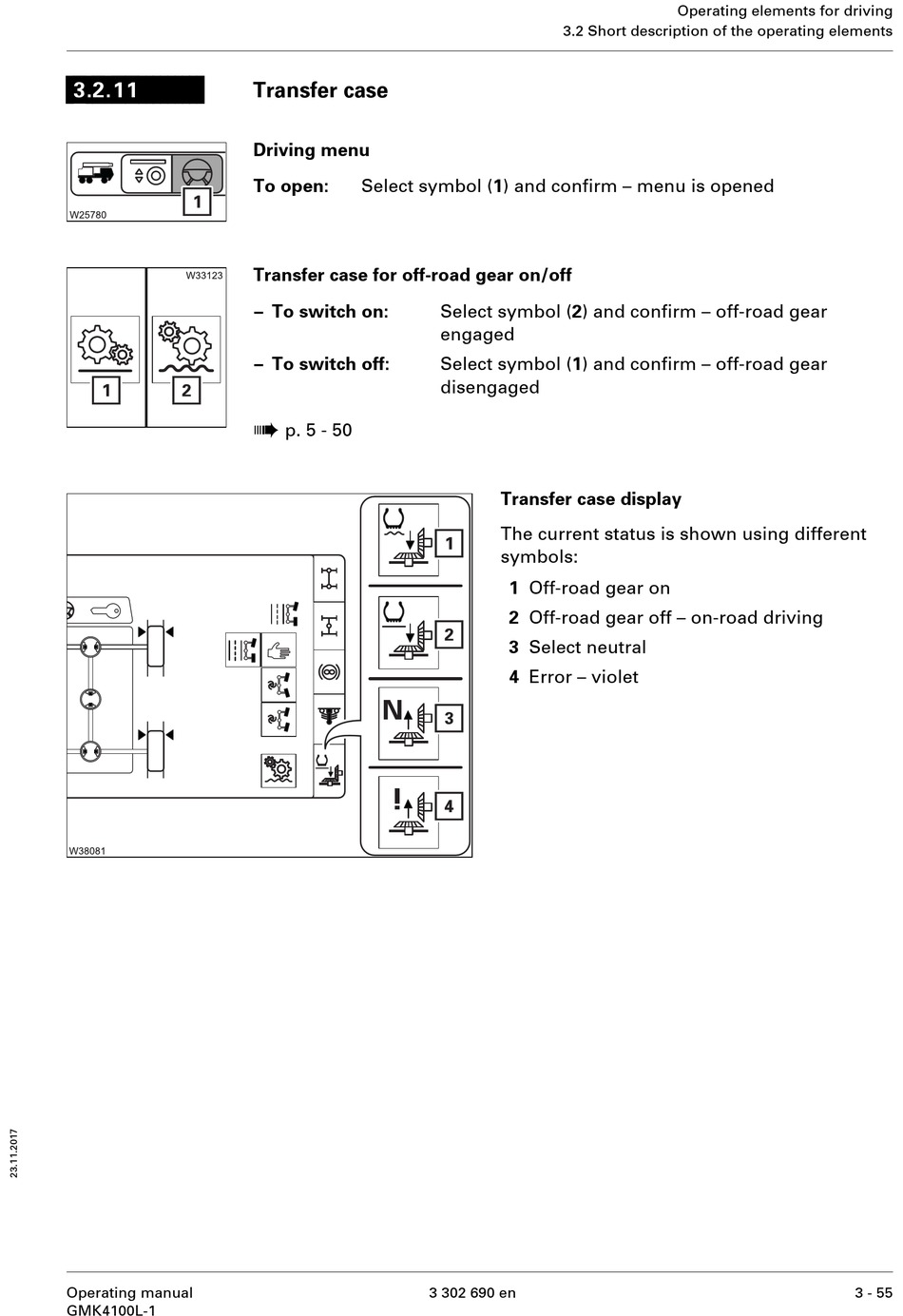

3.2.11
Operating manual
GMK4100L-1

Transfer case

Driving menu
To open:
Select symbol (1) and confirm – menu is opened
Transfer case for off-road gear on/off
– To switch on:
– To switch off:
à
p. 5 - 50
3.2 Short description of the operating elements
Select symbol (2) and confirm – off-road gear
engaged
Select symbol (1) and confirm – off-road gear
disengaged
Transfer case display
The current status is shown using different
symbols:
1 Off-road gear on
2 Off-road gear off – on-road driving
3 Select neutral
4 Error – violet
3 302 690 en
Operating elements for driving
3 - 55
