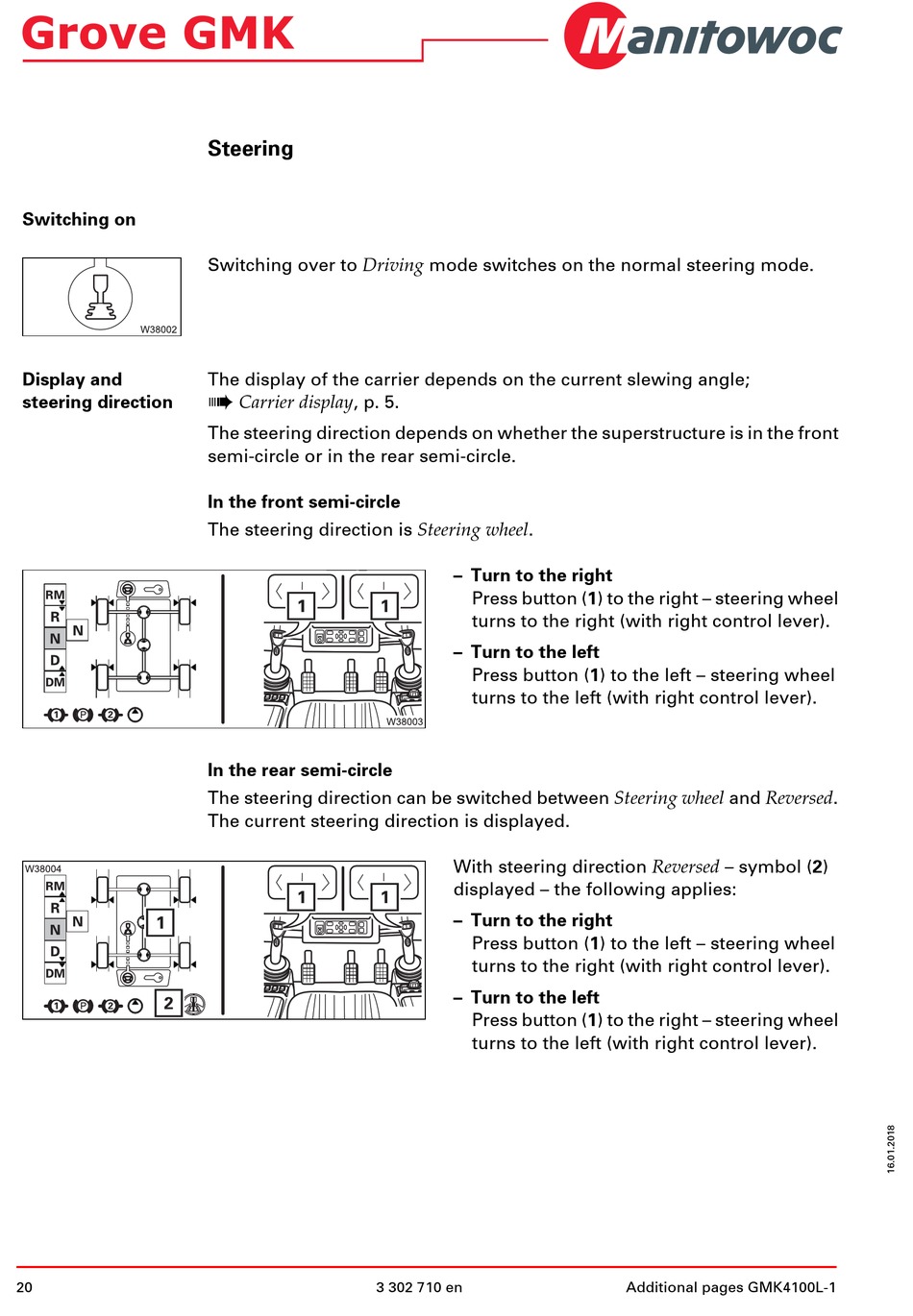

Manitowoc Grove GMK4100L-1 Operating Manual page 24

Switching on
Display and
steering direction
20
Steering
Switching over to Driving mode switches on the normal steering mode.
The display of the carrier depends on the current slewing angle;
à
Carrier display , p. 5.
The steering direction depends on whether the superstructure is in the front
semi-circle or in the rear semi-circle.
In the front semi-circle
The steering direction is Steering wheel .
In the rear semi-circle
The steering direction can be switched between Steering wheel and Reversed .
The current steering direction is displayed.
3 302 710 en
– Turn to the right
Press button (1) to the right – steering wheel
turns to the right (with right control lever).
– Turn to the left
Press button (1) to the left – steering wheel
turns to the left (with right control lever).
With steering direction Reversed – symbol (2)
displayed – the following applies:
– Turn to the right
Press button (1) to the left – steering wheel
turns to the right (with right control lever).
– Turn to the left
Press button (1) to the right – steering wheel
turns to the left (with right control lever).
