After emergency
operation
Operating manual
GMK4100L-1
Inserting the fuses
After emergency operation, you must insert the fuses again so that the 4th
axle line can be steered while driving.
•
Turn off the ignition.
•
Insert the fuse F2/5;
•
Insert the fuse F10;
•
Drive directly to the workshop and have the fault rectified.
The speed may be reduced depending on the extent of the error.
8.5 Emergency operation and breakdown assistance

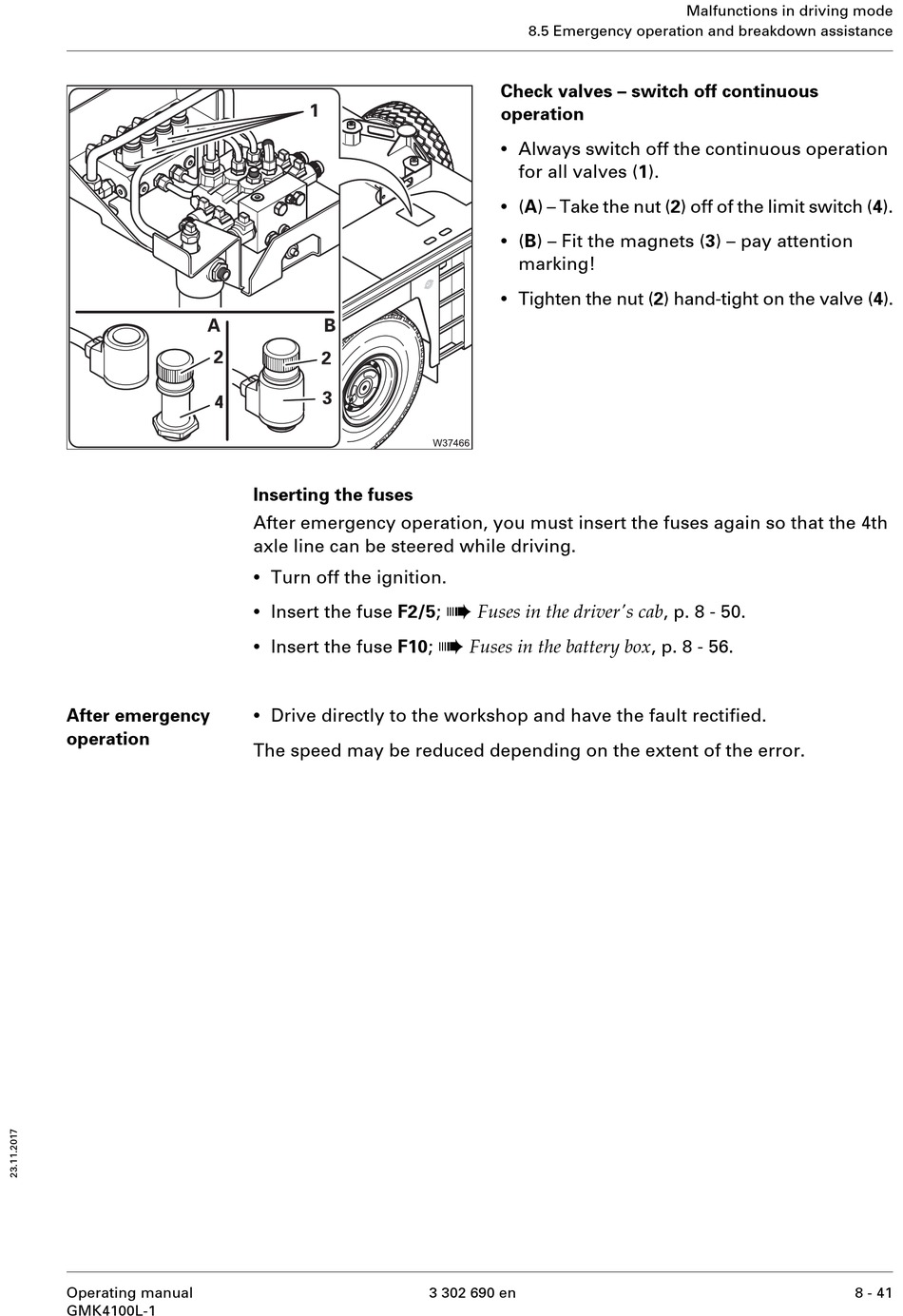

Check valves – switch off continuous
operation
•
Always switch off the continuous operation
for all valves (1).
•
(A) – Take the nut (2) off of the limit switch (4).
•
(B) – Fit the magnets (3) – pay attention
marking!
•
Tighten the nut (2) hand-tight on the valve (4).
à
Fuses in the driver's cab , p. 8 - 50.
à
Fuses in the battery box , p. 8 - 56.
3 302 690 en
Malfunctions in driving mode
8 - 41
