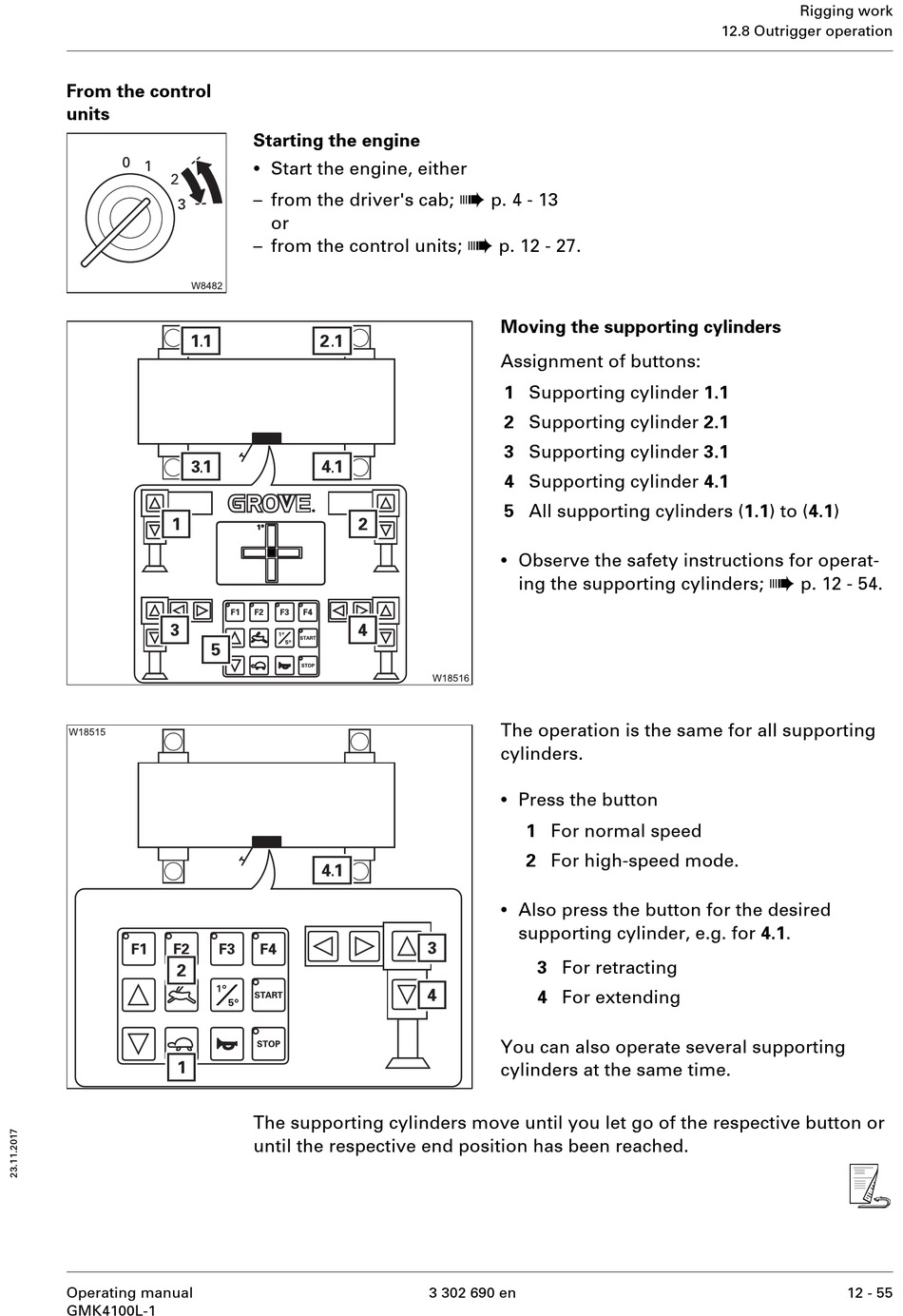

Manitowoc Grove GMK4100L-1 Operating Manual page 801

From the control
units
Operating manual
GMK4100L-1
Starting the engine
•
Start the engine, either
– from the driver's cab;
or
– from the control units;
The supporting cylinders move until you let go of the respective button or
until the respective end position has been reached.
à
p. 4 - 13
à
p. 12 - 27.
Moving the supporting cylinders
Assignment of buttons:
1 Supporting cylinder 1.1
2 Supporting cylinder 2.1
3 Supporting cylinder 3.1
4 Supporting cylinder 4.1
5 All supporting cylinders (1.1) to (4.1)
•
Observe the safety instructions for operat-
ing the supporting cylinders;
The operation is the same for all supporting
cylinders.
•
Press the button
1 For normal speed
2 For high-speed mode.
•
Also press the button for the desired
supporting cylinder, e.g. for 4.1.
3 For retracting
4 For extending
You can also operate several supporting
cylinders at the same time.
3 302 690 en
Rigging work
12.8 Outrigger operation
à
p. 12 - 54.
s
12 - 55
