You will need the respective connecting cable to connect the camera to a lat-
tice extension. This means certain pre-conditions are applicable to installa-
tion and removal.
Risk of accidents due to falling camera
Always use a retaining pin to hold the camera in the clamp.
This prevents the camera falling down and injuring someone.

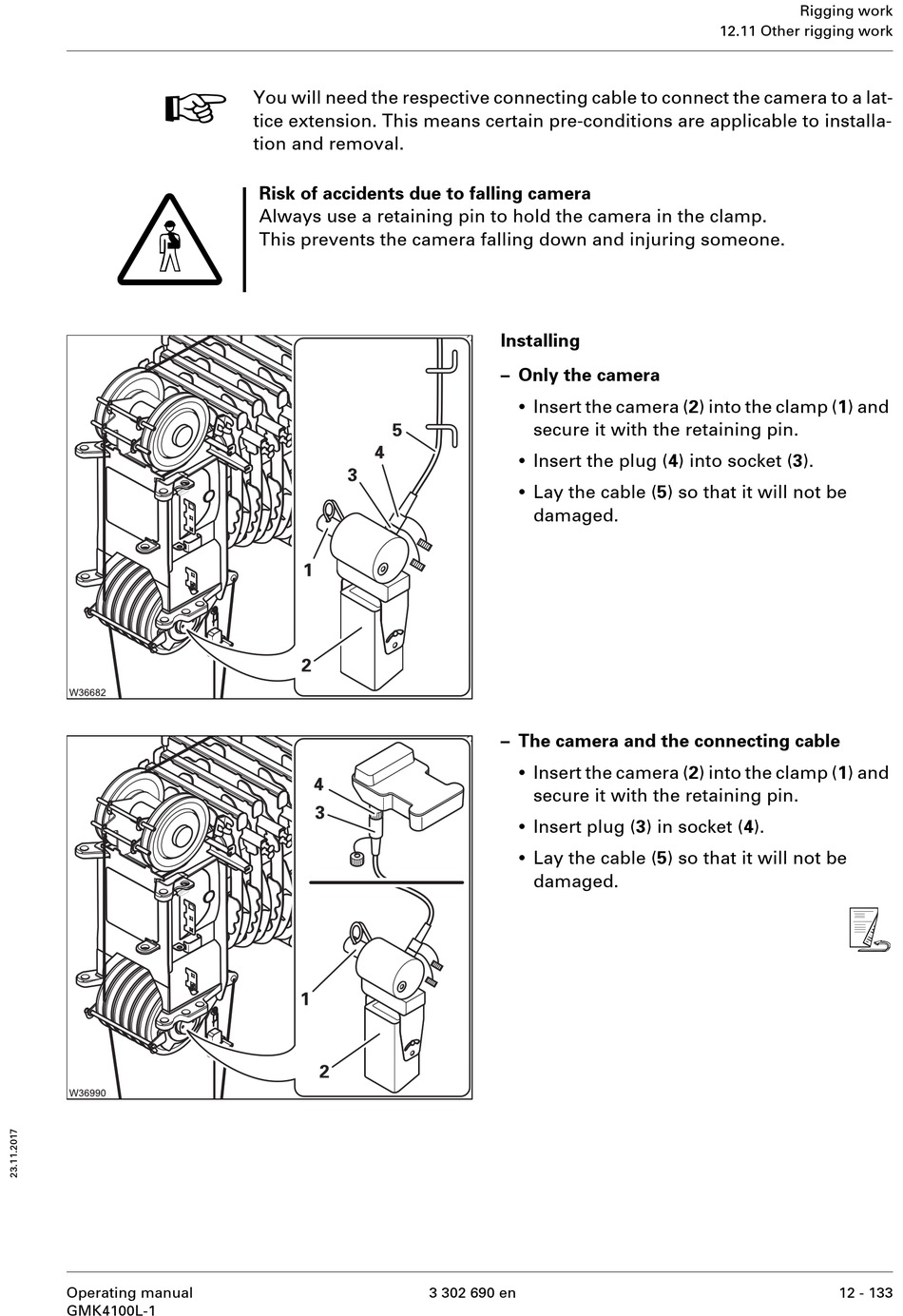

Installing
– Only the camera
•
Insert the camera (2) into the clamp (1) and
secure it with the retaining pin.
•
Insert the plug (4) into socket (3).
•
Lay the cable (5) so that it will not be
damaged.
– The camera and the connecting cable
•
Insert the camera (2) into the clamp (1) and
secure it with the retaining pin.
•
Insert plug (3) in socket (4).
•
Lay the cable (5) so that it will not be
damaged.
