9.2.8
General
information
Operating manual
GMK4100L-1

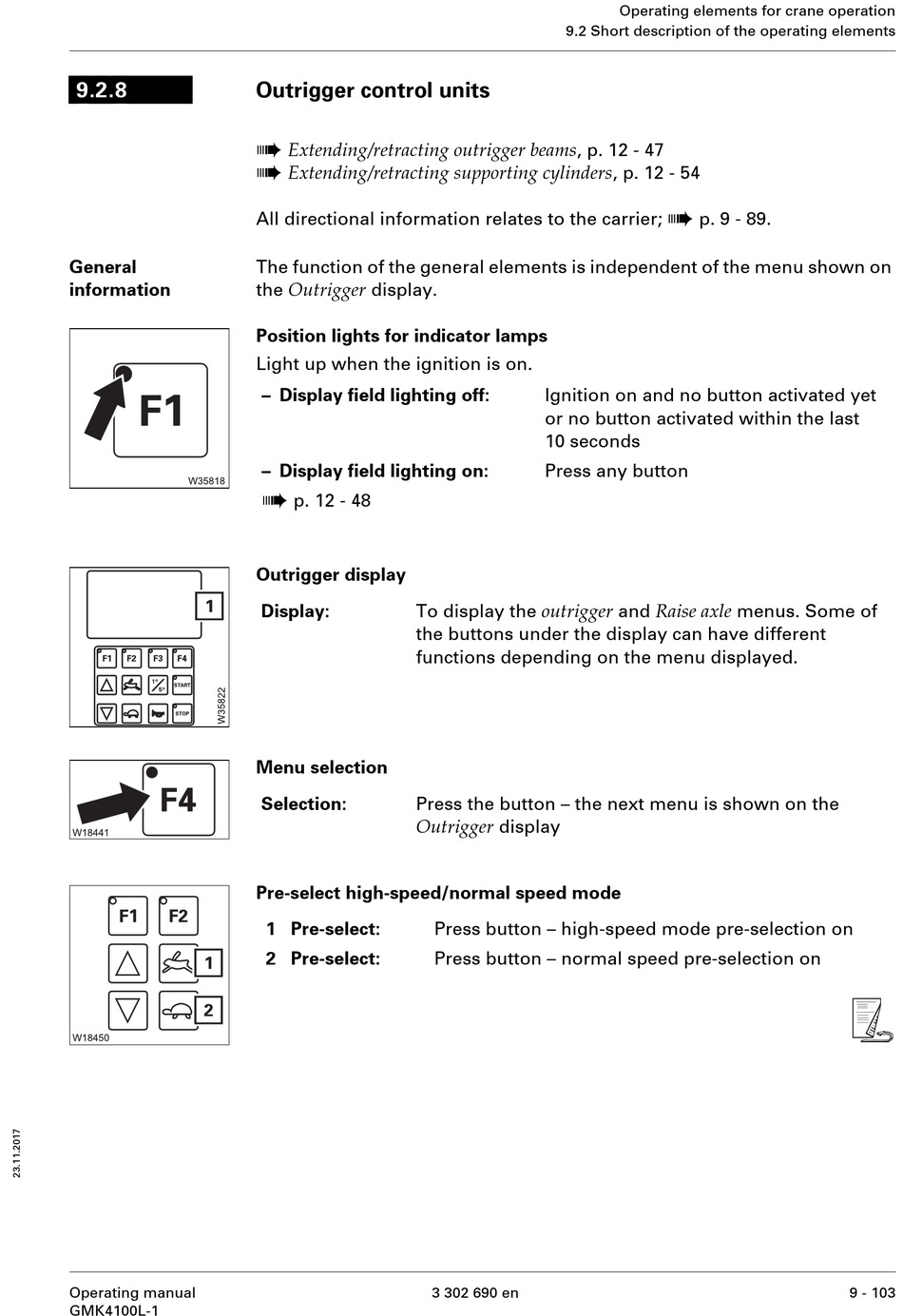

Outrigger control units

à
Extending/retracting outrigger beams , p. 12 - 47
à
Extending/retracting supporting cylinders , p. 12 - 54
All directional information relates to the carrier;
The function of the general elements is independent of the menu shown on
the Outrigger display.
Position lights for indicator lamps
Light up when the ignition is on.
– Display field lighting off:
– Display field lighting on:
à
p. 12 - 48
Outrigger display
To display the outrigger and Raise axle menus. Some of
Display:
the buttons under the display can have different
functions depending on the menu displayed.
Menu selection
Selection: Press the button – the next menu is shown on the
Outrigger display
Pre-select high-speed/normal speed mode
1 Pre-select:
2 Pre-select:
9.2 Short description of the operating elements
Ignition on and no button activated yet
or no button activated within the last
10 seconds
Press any button
Press button – high-speed mode pre-selection on
Press button – normal speed pre-selection on
3 302 690 en
Operating elements for crane operation
à
p. 9 - 89.
s
9 - 103
