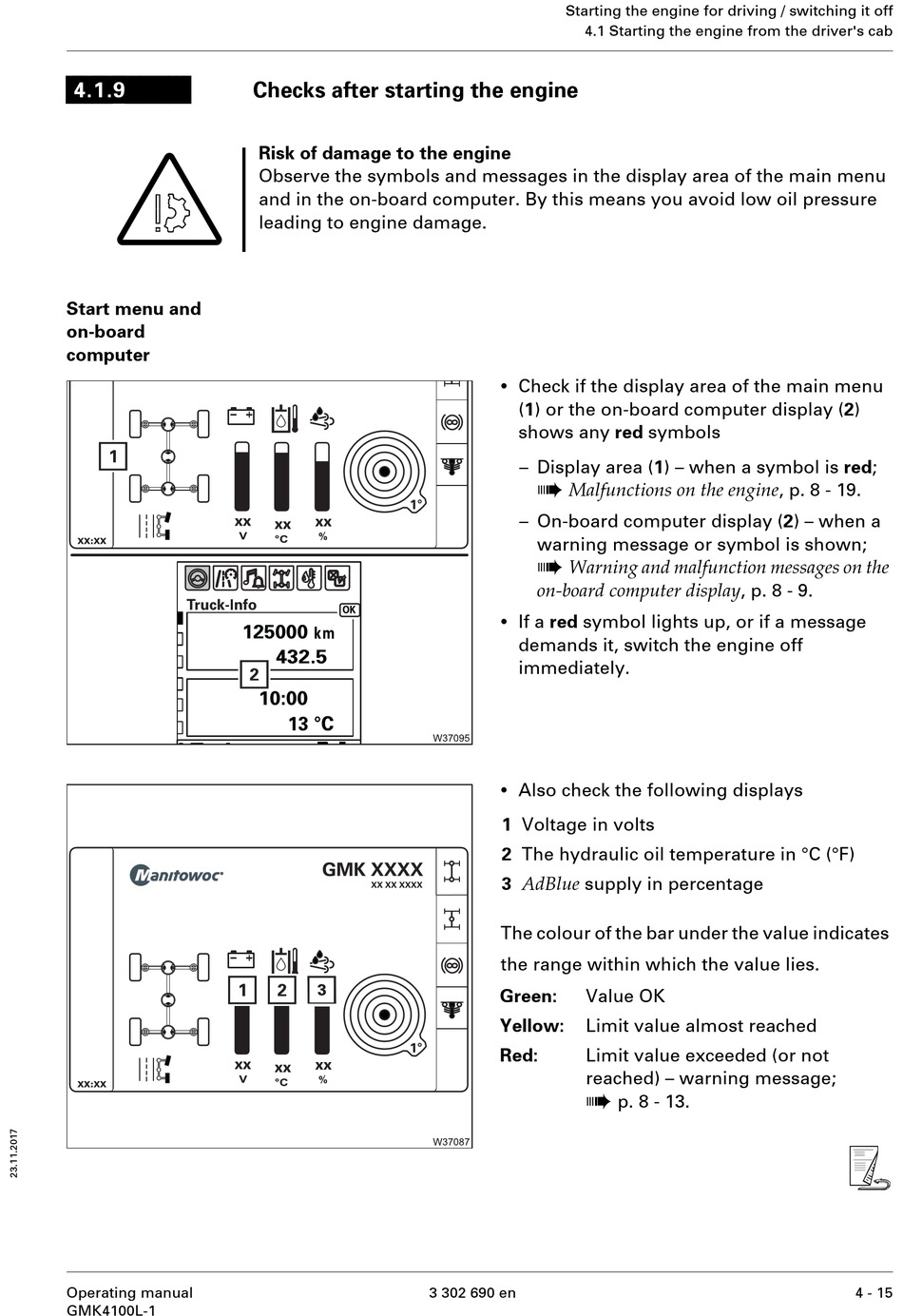

Checks after starting the engine

Risk of damage to the engine
Observe the symbols and messages in the display area of the main menu
and in the on-board computer. By this means you avoid low oil pressure
leading to engine damage.
Starting the engine for driving / switching it off
4.1 Starting the engine from the driver's cab
•
Check if the display area of the main menu
(1) or the on-board computer display (2)
shows any red symbols
– Display area (1) – when a symbol is red;
à
Malfunctions on the engine , p. 8 - 19.
– On-board computer display (2) – when a
warning message or symbol is shown;
à
Warning and malfunction messages on the
on-board computer display , p. 8 - 9.
•
If a red symbol lights up, or if a message
demands it, switch the engine off
immediately.
•
Also check the following displays
1 Voltage in volts
2 The hydraulic oil temperature in °C (°F)
3 AdBlue supply in percentage
The colour of the bar under the value indicates
the range within which the value lies.
Green: Value OK
Yellow: Limit value almost reached
Red: Limit value exceeded (or not
reached) – warning message;
à
3 302 690 en
p. 8 - 13.
