Instrument panel
Operating manual
GMK4100L-1
Tachometer
Display, engine speed in rpm;

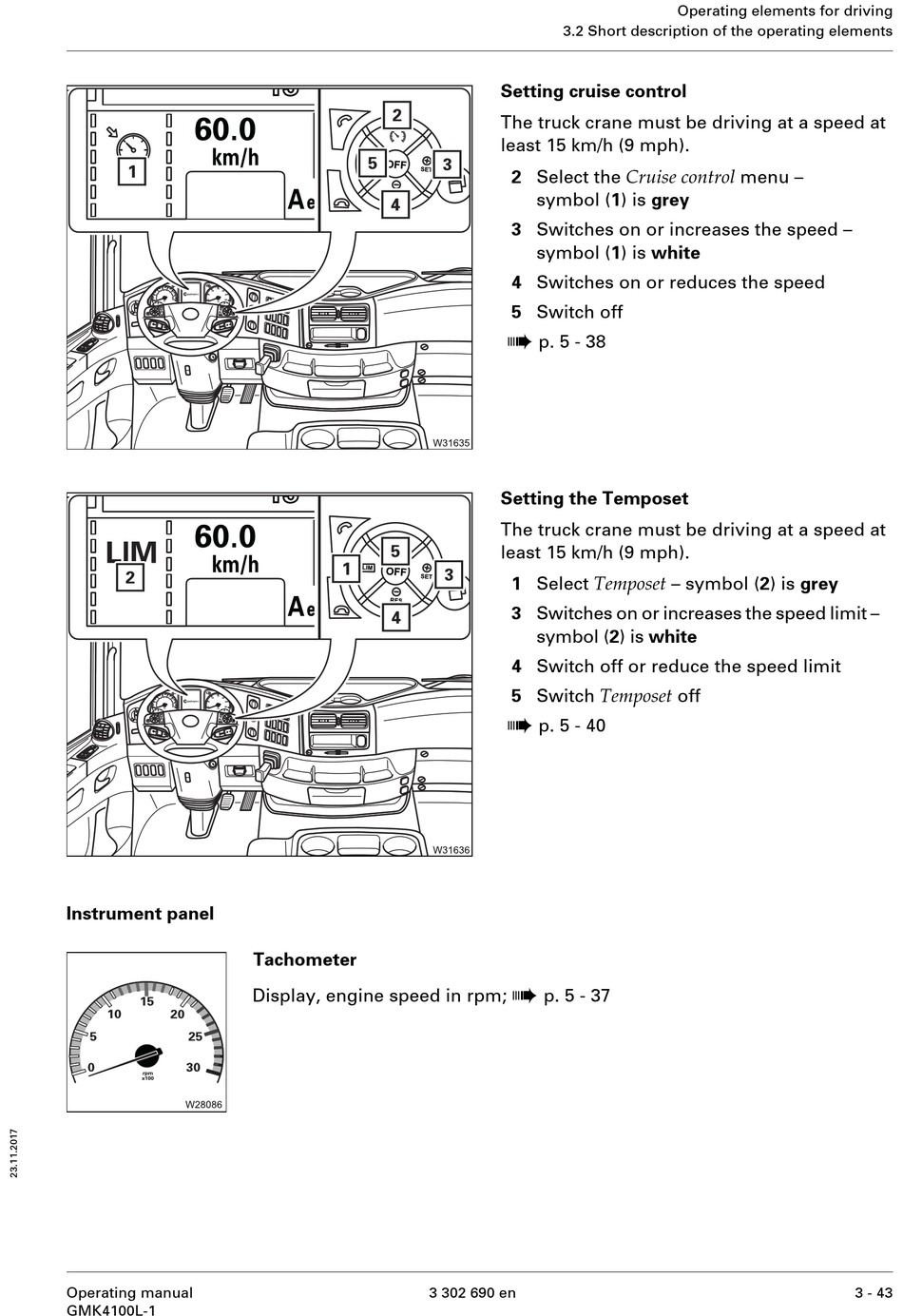

3.2 Short description of the operating elements
Setting cruise control
The truck crane must be driving at a speed at
least 15 km/h (9 mph).
2 Select the Cruise control menu –
symbol (1) is grey
3 Switches on or increases the speed –
symbol (1) is white
4 Switches on or reduces the speed
5 Switch off
à
p. 5 - 38
Setting the Temposet
The truck crane must be driving at a speed at
least 15 km/h (9 mph).
1 Select Temposet – symbol (2) is grey
3 Switches on or increases the speed limit –
symbol (2) is white
4 Switch off or reduce the speed limit
5 Switch Temposet off
à
p. 5 - 40
à
p. 5 - 37
3 302 690 en
Operating elements for driving
3 - 43
