Operating manual
GMK4100L-1

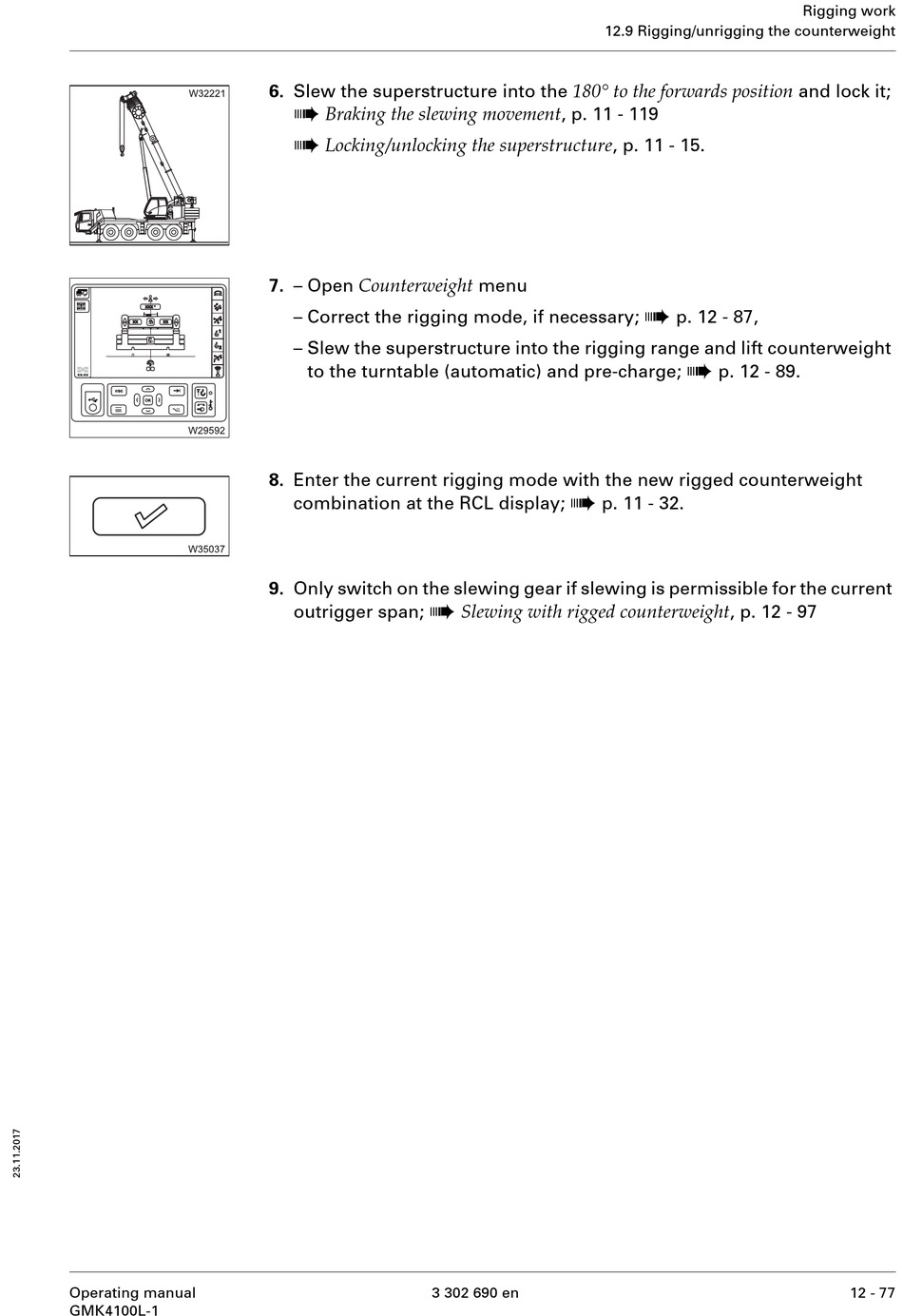

6. Slew the superstructure into the 180° to the forwards position and lock it;
à
Braking the slewing movement , p. 11 - 119
à
Locking/unlocking the superstructure , p. 11 - 15.
7. – Open Counterweight menu
– Correct the rigging mode, if necessary;
– Slew the superstructure into the rigging range and lift counterweight
to the turntable (automatic) and pre-charge;
8. Enter the current rigging mode with the new rigged counterweight
combination at the RCL display;
9. Only switch on the slewing gear if slewing is permissible for the current
à
outrigger span;
3 302 690 en
12.9 Rigging/unrigging the counterweight
à
p. 11 - 32.
Slewing with rigged counterweight , p. 12 - 97
Rigging work
à
p. 12 - 87,
à
p. 12 - 89.
12 - 77
