Driving
5.4 Off-road driving
5.4.1
Neutral position
5 - 50

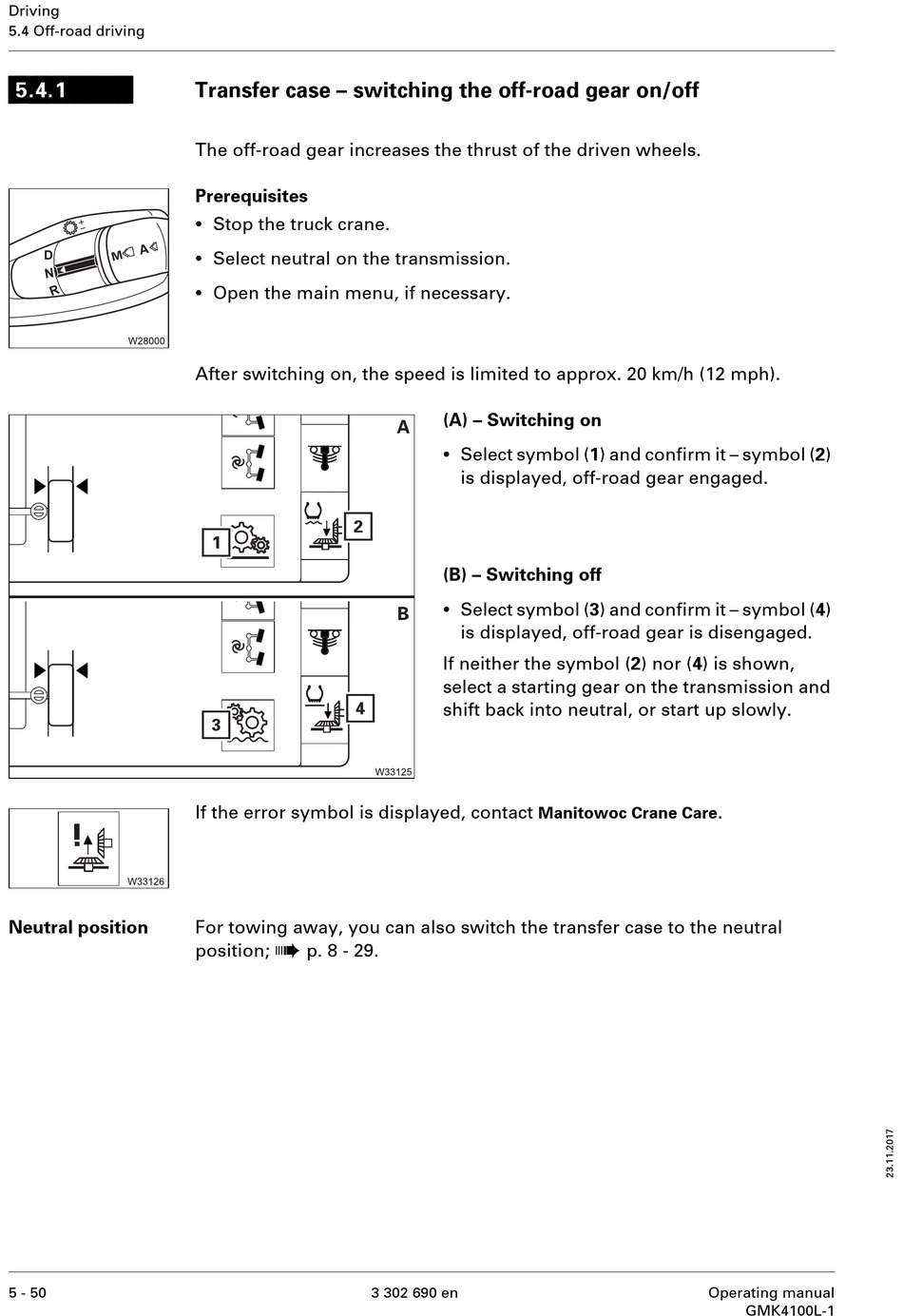

Transfer case – switching the off-road gear on/off
The off-road gear increases the thrust of the driven wheels.
Prerequisites
•
Stop the truck crane.
•
Select neutral on the transmission.
•
Open the main menu, if necessary.
After switching on, the speed is limited to approx. 20 km/h (12 mph).
If the error symbol is displayed, contact
For towing away, you can also switch the transfer case to the neutral
à
position; p. 8 - 29.
(A) – Switching on
•
Select symbol (1) and confirm it – symbol (2)
is displayed, off-road gear engaged.
(B) – Switching off
•
Select symbol (3) and confirm it – symbol (4)
is displayed, off-road gear is disengaged.
If neither the symbol (2) nor (4) is shown,
select a starting gear on the transmission and
shift back into neutral, or start up slowly.
Manitowoc Crane Care
3 302 690 en
.
Operating manual
GMK4100L-1
