Starting The Engine - From The Crane Cab; Check The Fuel Level And Adblue Level - Manitowoc Grove GMK4100L-1 Operating Manual

10.2
10.2.1
Fuel
AdBlue
Operating manual
GMK4100L-1

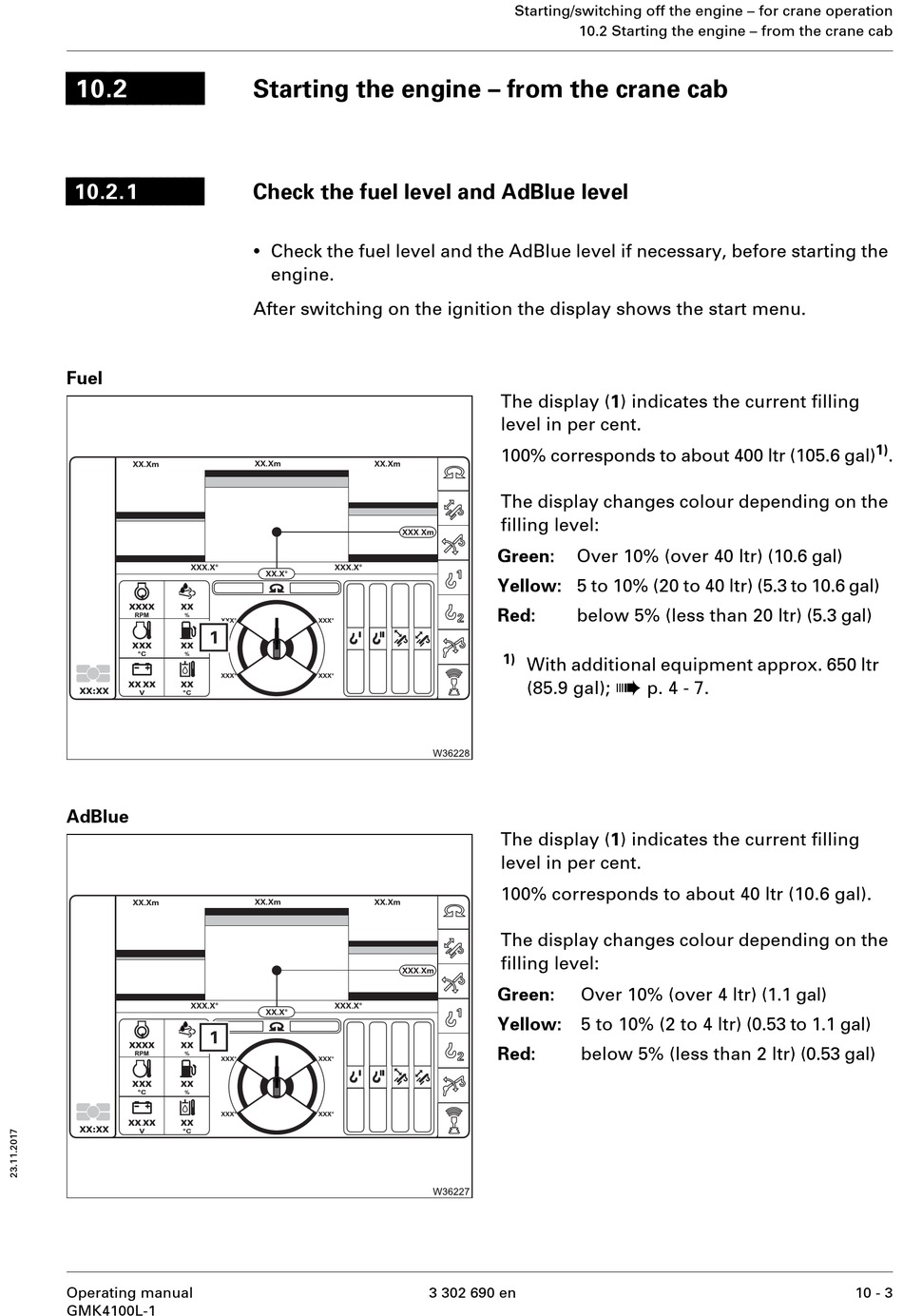

Starting the engine – from the crane cab

Check the fuel level and AdBlue level

•
Check the fuel level and the AdBlue level if necessary, before starting the
engine.
After switching on the ignition the display shows the start menu.
Starting/switching off the engine – for crane operation
10.2 Starting the engine – from the crane cab
The display (1) indicates the current filling
level in per cent.
100% corresponds to about 400 ltr (105.6 gal)
The display changes colour depending on the
filling level:
Green: Over 10% (over 40 ltr) (10.6 gal)
Yellow: 5 to 10% (20 to 40 ltr) (5.3 to 10.6 gal)
Red: below 5% (less than 20 ltr) (5.3 gal)
1)
With additional equipment approx. 650 ltr
(85.9 gal);
The display (1) indicates the current filling
level in per cent.
100% corresponds to about 40 ltr (10.6 gal).
The display changes colour depending on the
filling level:
Green: Over 10% (over 4 ltr) (1.1 gal)
Yellow: 5 to 10% (2 to 4 ltr) (0.53 to 1.1 gal)
Red: below 5% (less than 2 ltr) (0.53 gal)
3 302 690 en
à
p. 4 - 7.
1)
.
10 - 3
