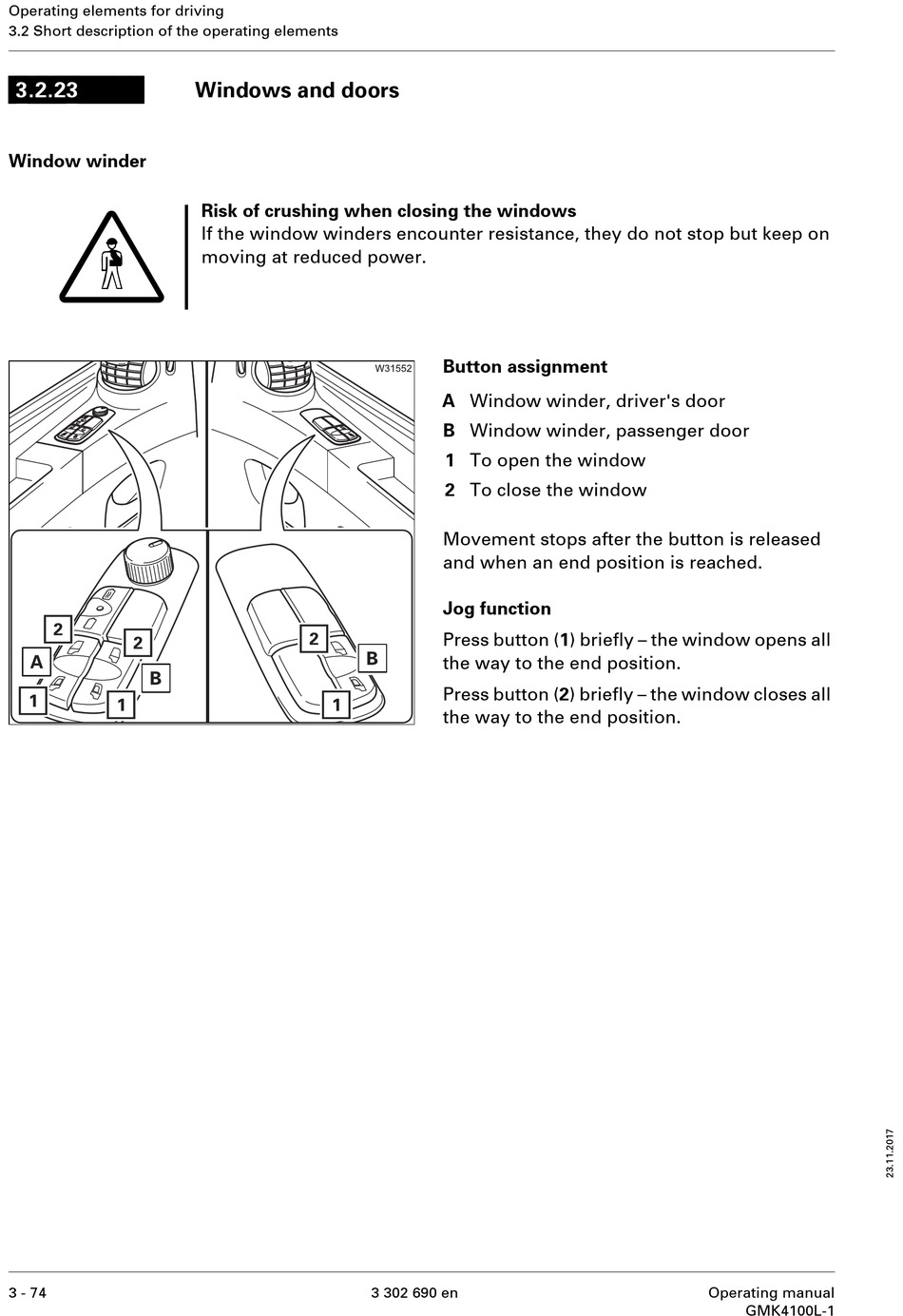

Manitowoc Grove GMK4100L-1 Operating Manual page 188

Operating elements for driving
3.2 Short description of the operating elements
3.2.23
Window winder
G
3 - 74
Windows and doors
Risk of crushing when closing the windows
If the window winders encounter resistance, they do not stop but keep on
moving at reduced power.
Button assignment
A Window winder, driver's door
B Window winder, passenger door
1 To open the window
2 To close the window
Movement stops after the button is released
and when an end position is reached.
Jog function
Press button (1) briefly – the window opens all
the way to the end position.
Press button (2) briefly – the window closes all
the way to the end position.
3 302 690 en Operating manual
GMK4100L-1
