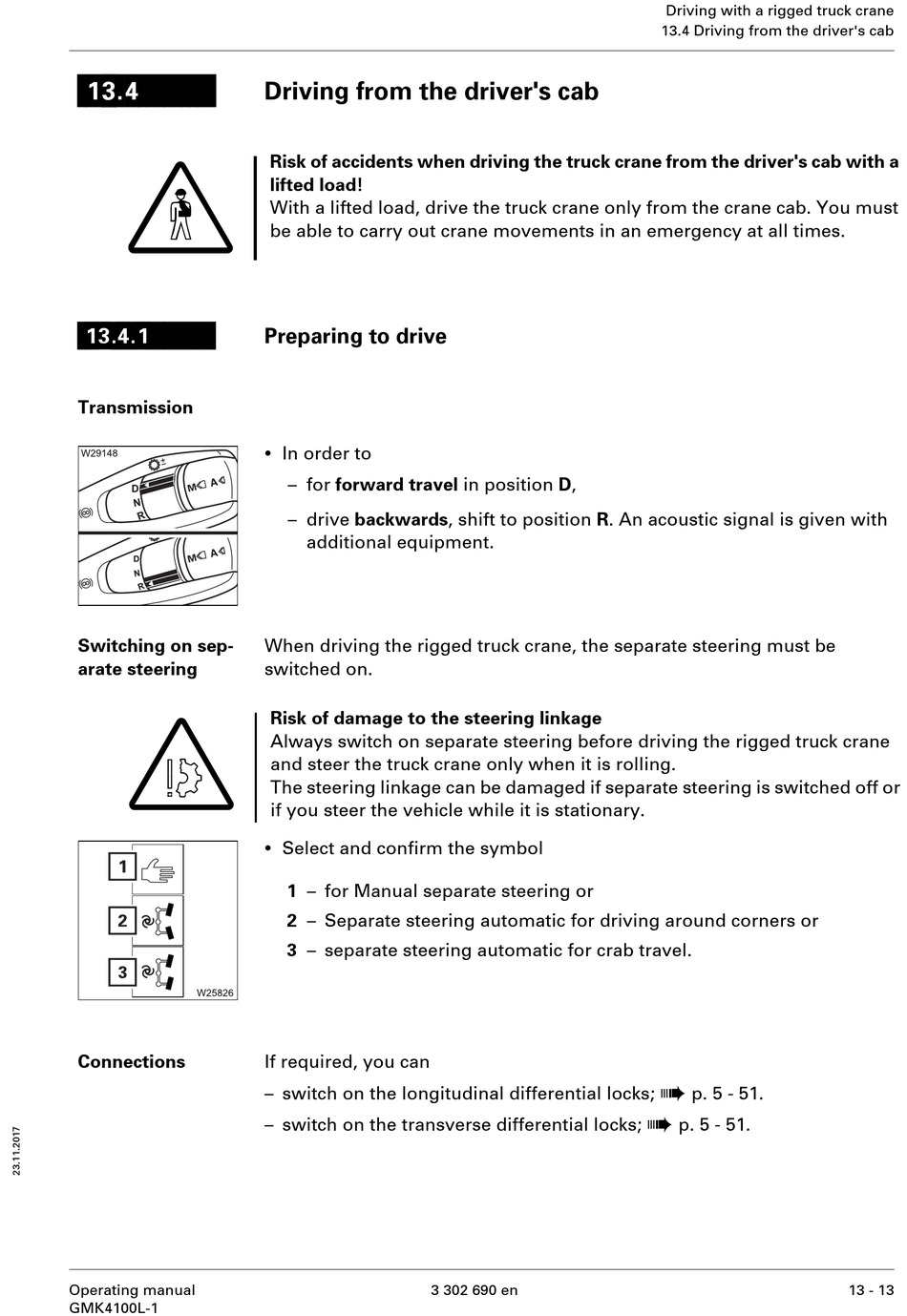

Driving From The Driver's Cab; Preparing To Drive - Manitowoc Grove GMK4100L-1 Operating Manual

13.4
G
13.4.1
Transmission
Switching on sep-
arate steering
S
Connections
Operating manual
GMK4100L-1

Driving from the driver's cab

Risk of accidents when driving the truck crane from the driver's cab with a
lifted load!
With a lifted load, drive the truck crane only from the crane cab. You must
be able to carry out crane movements in an emergency at all times.

Preparing to drive

•
In order to
– for forward travel in position D,
– drive backwards, shift to position R. An acoustic signal is given with
additional equipment.
When driving the rigged truck crane, the separate steering must be
switched on.
Risk of damage to the steering linkage
Always switch on separate steering before driving the rigged truck crane
and steer the truck crane only when it is rolling.
The steering linkage can be damaged if separate steering is switched off or
if you steer the vehicle while it is stationary.
•
Select and confirm the symbol
1 – for Manual separate steering or
2 – Separate steering automatic for driving around corners or
3 – separate steering automatic for crab travel.
If required, you can
– switch on the longitudinal differential locks;
– switch on the transverse differential locks;
3 302 690 en
Driving with a rigged truck crane
13.4 Driving from the driver's cab
à
p. 5 - 51.
à
p. 5 - 51.
13 - 13
