9.1.18
Operating manual
GMK4100L-1

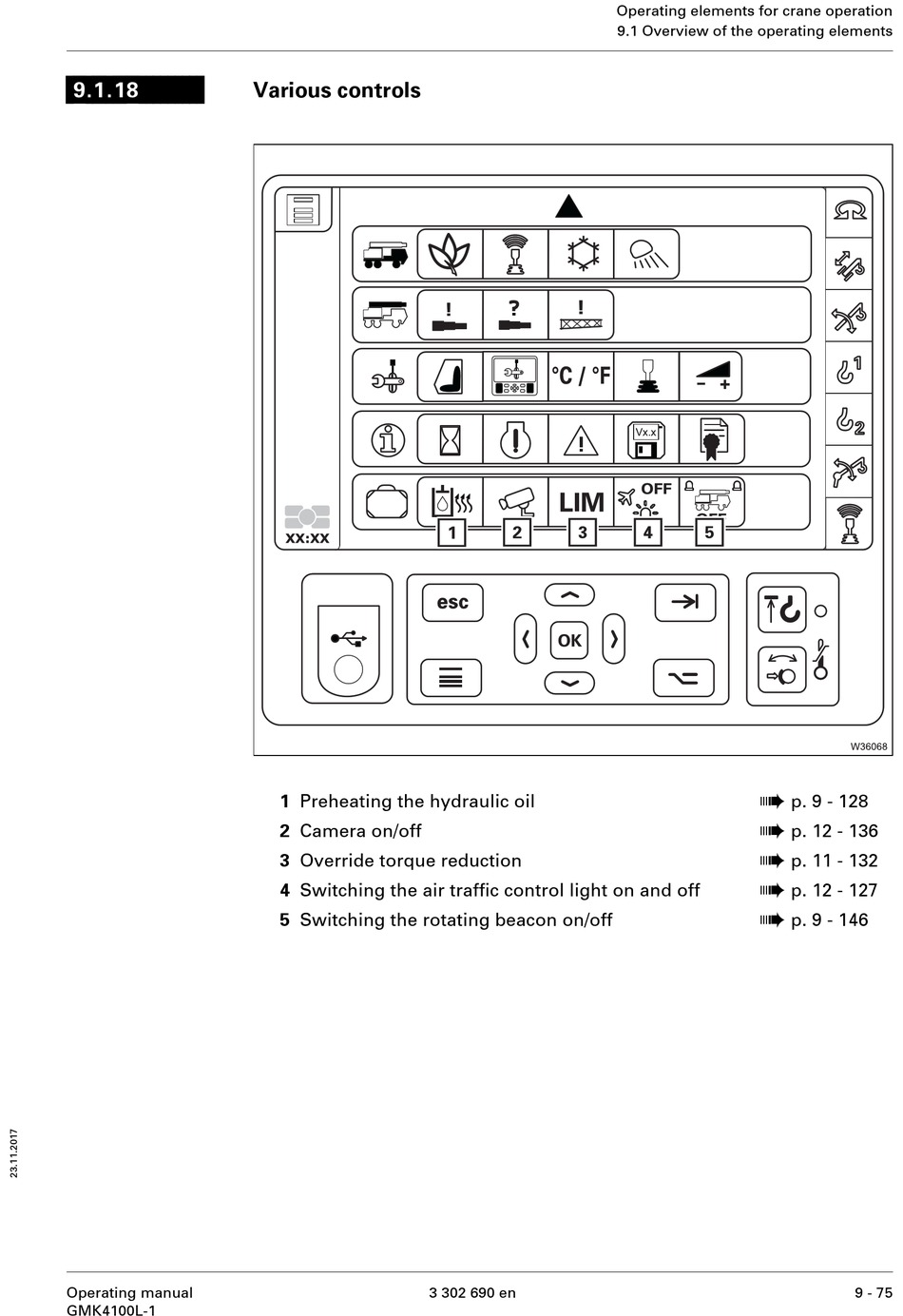

Various controls

1 Preheating the hydraulic oil
2 Camera on/off
3 Override torque reduction
4 Switching the air traffic control light on and off
5 Switching the rotating beacon on/off
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
p. 9 - 128
p. 12 - 136
p. 11 - 132
p. 12 - 127
p. 9 - 146
9 - 75
