Operating manual
GMK4100L-1

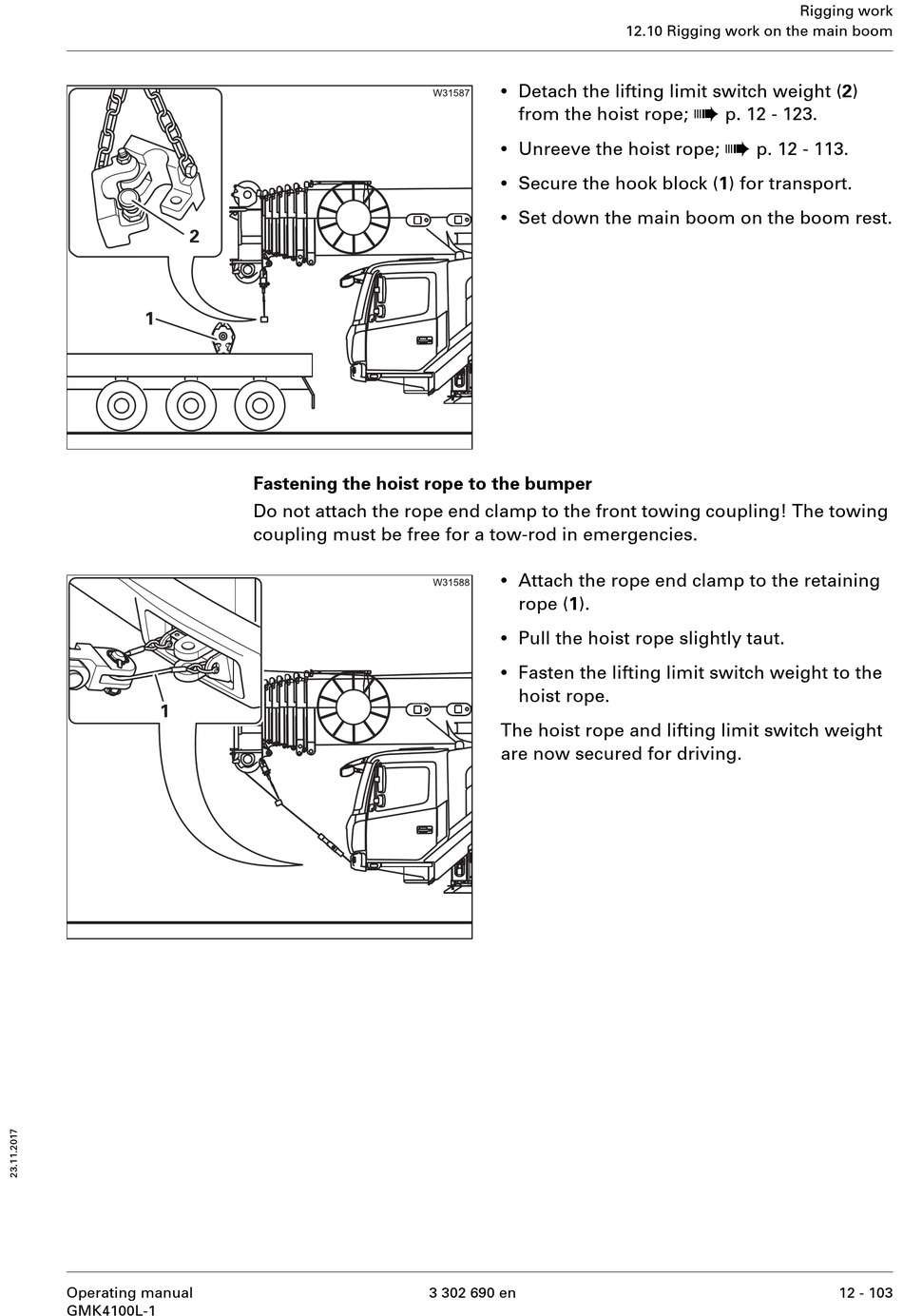

Fastening the hoist rope to the bumper
Do not attach the rope end clamp to the front towing coupling! The towing
coupling must be free for a tow-rod in emergencies.
•
Detach the lifting limit switch weight (2)
from the hoist rope;
•
Unreeve the hoist rope;
•
Secure the hook block (1) for transport.
•
Set down the main boom on the boom rest.
•
Attach the rope end clamp to the retaining
rope (1).
•
Pull the hoist rope slightly taut.
•
Fasten the lifting limit switch weight to the
hoist rope.
The hoist rope and lifting limit switch weight
are now secured for driving.
3 302 690 en
12.10 Rigging work on the main boom
à
p. 12 - 123.
à
p. 12 - 113.
Rigging work
12 - 103
