11.4.4
Slewing range
type Standard
G
Operating manual
GMK4100L-1

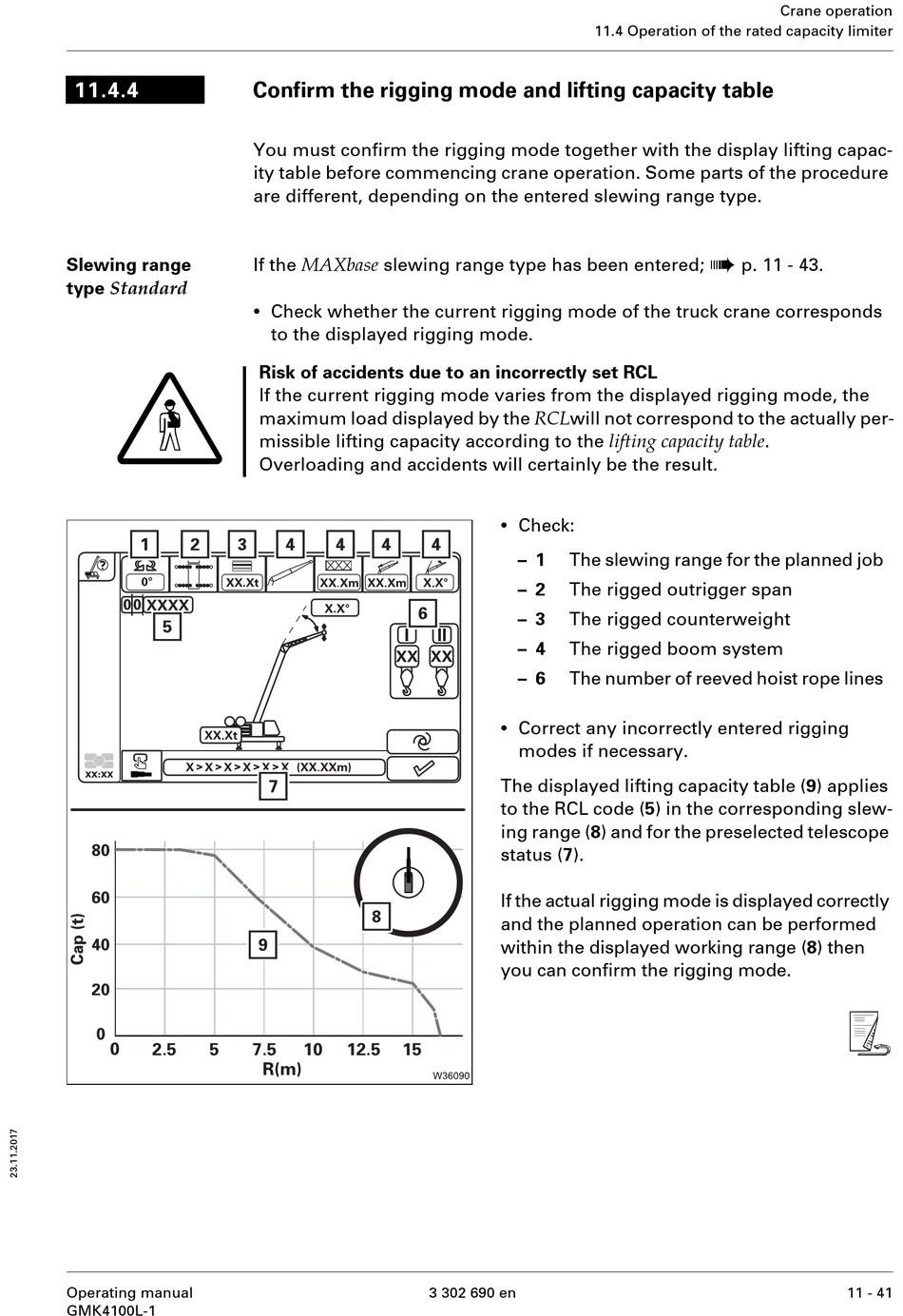

Confirm the rigging mode and lifting capacity table

You must confirm the rigging mode together with the display lifting capac-
ity table before commencing crane operation. Some parts of the procedure
are different, depending on the entered slewing range type.
If the MAXbase slewing range type has been entered;
•
Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
Risk of accidents due to an incorrectly set RCL
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the RCL will not correspond to the actually per-
missible lifting capacity according to the lifting capacity table .
Overloading and accidents will certainly be the result.
11.4 Operation of the rated capacity limiter
•
Check:
– 1 The slewing range for the planned job
– 2 The rigged outrigger span
– 3 The rigged counterweight
– 4 The rigged boom system
– 6 The number of reeved hoist rope lines
•
Correct any incorrectly entered rigging
modes if necessary.
The displayed lifting capacity table (9) applies
to the RCL code (5) in the corresponding slew-
ing range (8) and for the preselected telescope
status (7).
If the actual rigging mode is displayed correctly
and the planned operation can be performed
within the displayed working range (8) then
you can confirm the rigging mode.
3 302 690 en
Crane operation
à
p. 11 - 43.
s
11 - 41
