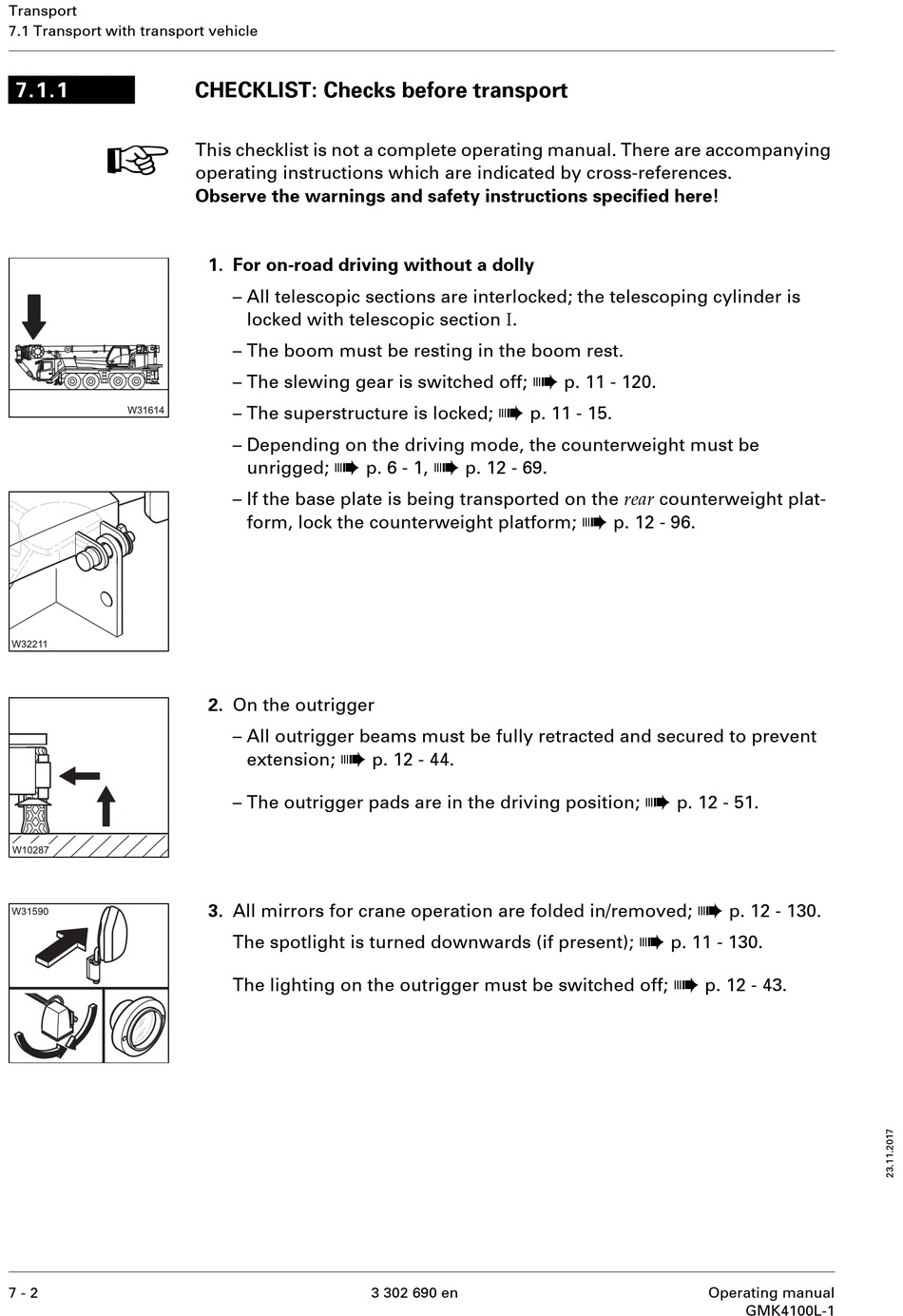

CHECKLIST: Checks before transport

This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. For on-road driving without a dolly
– All telescopic sections are interlocked; the telescoping cylinder is
locked with telescopic section I .
– The boom must be resting in the boom rest.
– The slewing gear is switched off;
– The superstructure is locked;
– Depending on the driving mode, the counterweight must be
à
unrigged;
– If the base plate is being transported on the rear counterweight plat-
form, lock the counterweight platform;
2. On the outrigger
– All outrigger beams must be fully retracted and secured to prevent
à
extension;
– The outrigger pads are in the driving position;
3. All mirrors for crane operation are folded in/removed;
The spotlight is turned downwards (if present);
The lighting on the outrigger must be switched off;
à
à
p. 11 - 15.
à
p. 6 - 1, p. 12 - 69.
p. 12 - 44.
3 302 690 en
p. 11 - 120.
à
p. 12 - 96.
à
p. 12 - 51.
à
p. 12 - 130.
à
p. 11 - 130.
à
p. 12 - 43.
