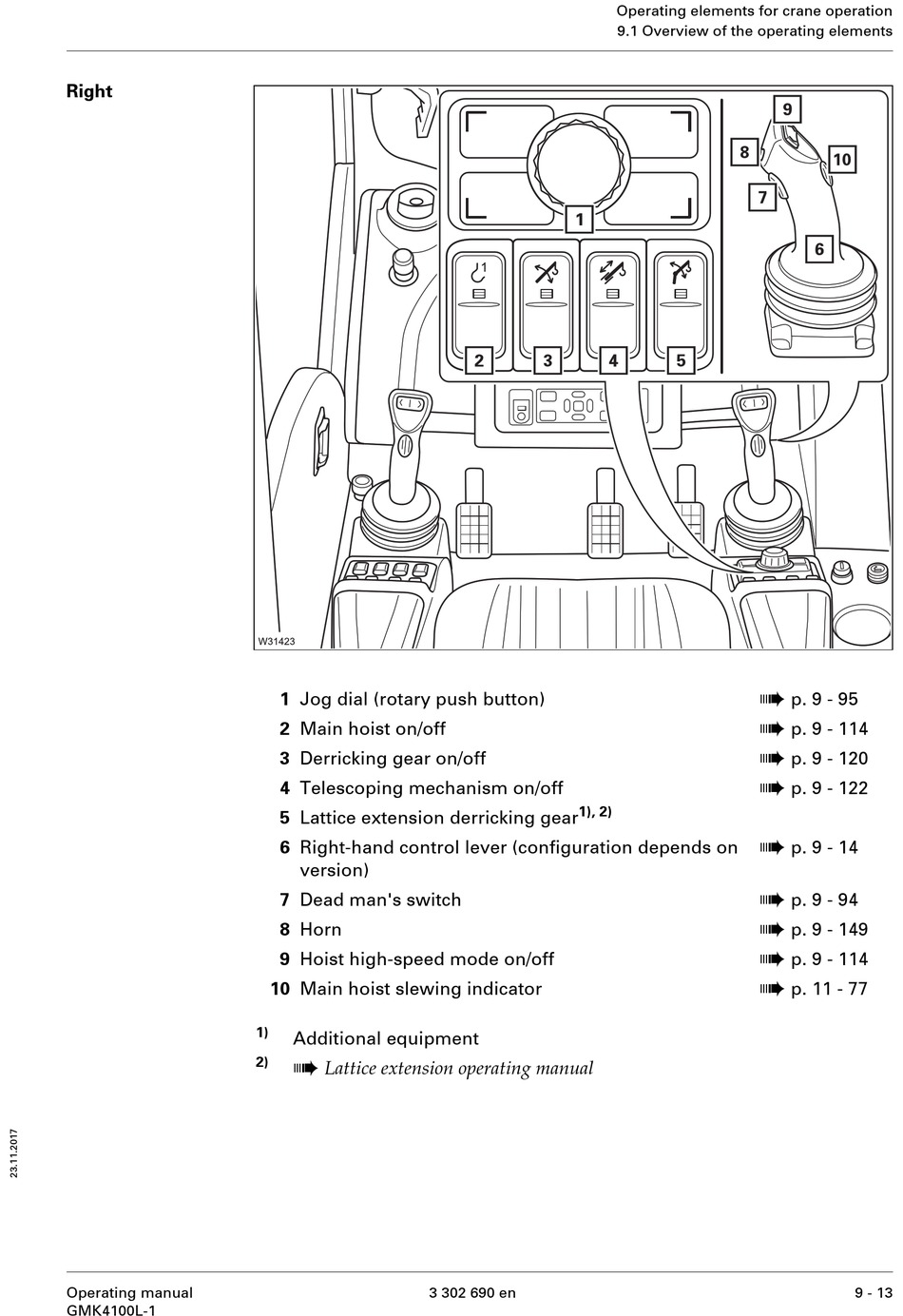

Right
Operating manual
GMK4100L-1
1 Jog dial (rotary push button)
2 Main hoist on/off
3 Derricking gear on/off
4 Telescoping mechanism on/off
5 Lattice extension derricking gear
6 Right-hand control lever (configuration depends on
version)
7 Dead man's switch
8 Horn
9 Hoist high-speed mode on/off
10 Main hoist slewing indicator
1)
Additional equipment
à
2)
Lattice extension operating manual
1), 2)
3 302 690 en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
à
à
à
à
p. 9 - 95
p. 9 - 114
p. 9 - 120
p. 9 - 122
p. 9 - 14
p. 9 - 94
p. 9 - 149
p. 9 - 114
p. 11 - 77
9 - 13
