Driving modes
6.5 Installing/removing the outrigger beams
6.5.12
S
6 - 46

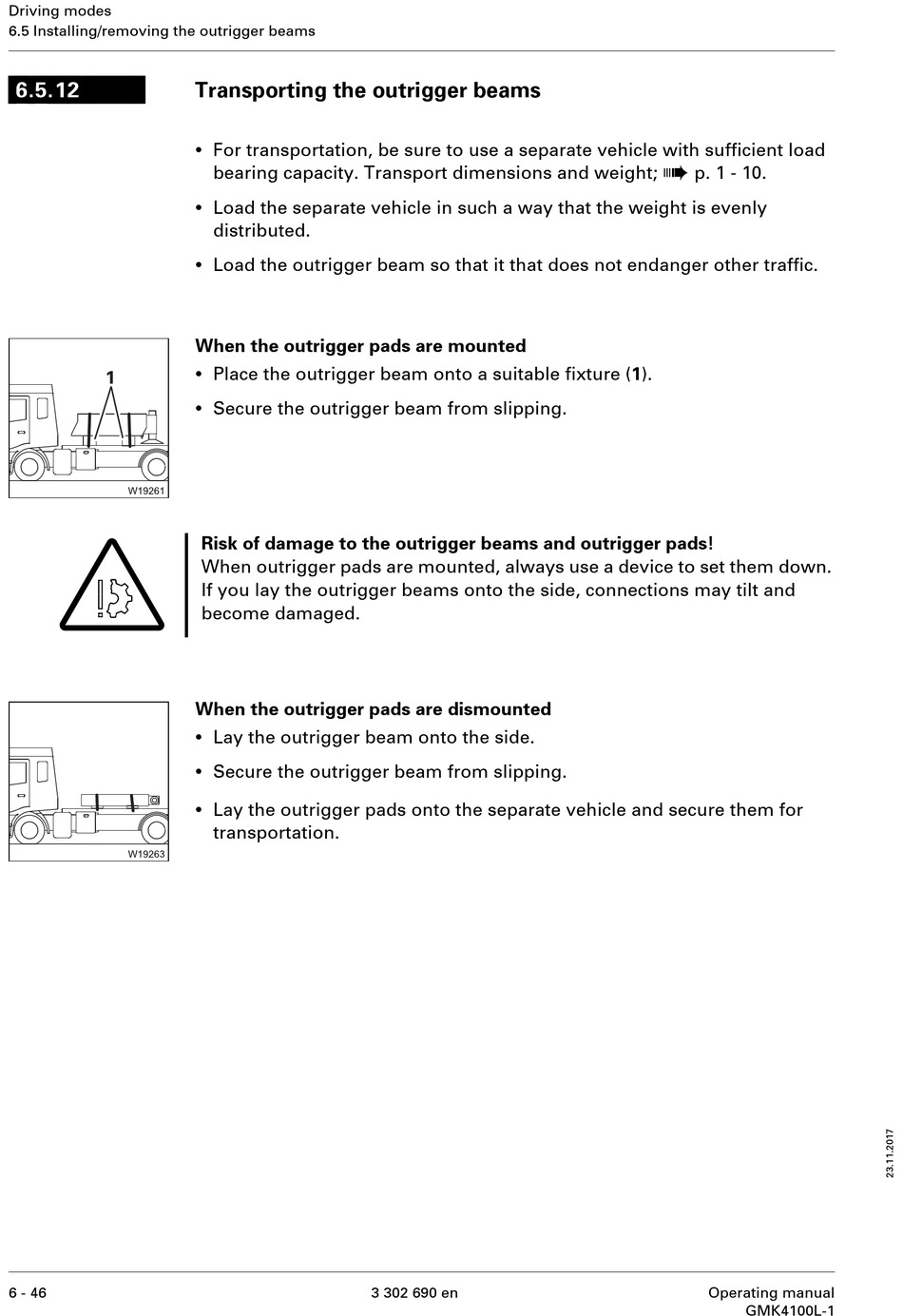

Transporting the outrigger beams

•
For transportation, be sure to use a separate vehicle with sufficient load
bearing capacity. Transport dimensions and weight;
•
Load the separate vehicle in such a way that the weight is evenly
distributed.
•
Load the outrigger beam so that it that does not endanger other traffic.
When the outrigger pads are mounted
•
Place the outrigger beam onto a suitable fixture (1).
•
Secure the outrigger beam from slipping.
Risk of damage to the outrigger beams and outrigger pads!
When outrigger pads are mounted, always use a device to set them down.
If you lay the outrigger beams onto the side, connections may tilt and
become damaged.
When the outrigger pads are dismounted
•
Lay the outrigger beam onto the side.
•
Secure the outrigger beam from slipping.
•
Lay the outrigger pads onto the separate vehicle and secure them for
transportation.
