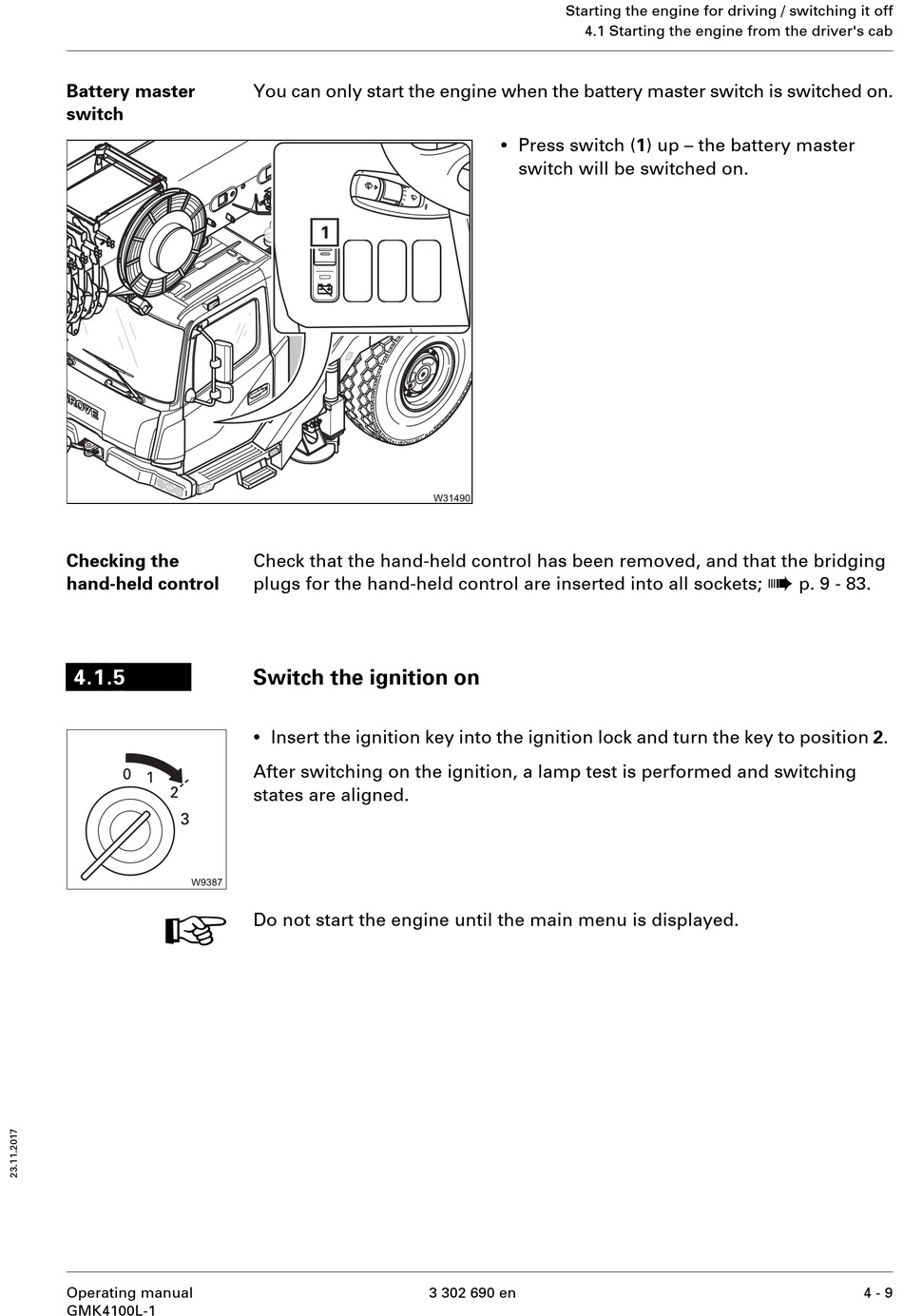

Battery master
switch
Checking the
hand-held control
4.1.5
H
Operating manual
GMK4100L-1
You can only start the engine when the battery master switch is switched on.
Check that the hand-held control has been removed, and that the bridging
plugs for the hand-held control are inserted into all sockets;

Switch the ignition on

Insert the ignition key into the ignition lock and turn the key to position 2.
After switching on the ignition, a lamp test is performed and switching
states are aligned.
Do not start the engine until the main menu is displayed.
Starting the engine for driving / switching it off
4.1 Starting the engine from the driver's cab
Press switch (1) up – the battery master
switch will be switched on.
3 302 690 en
à
p. 9 - 83.
4 - 9
