Driving with a rigged truck crane
13.3 Before driving the rigged truck crane
13.3.4
H
G
S
G
13 - 10

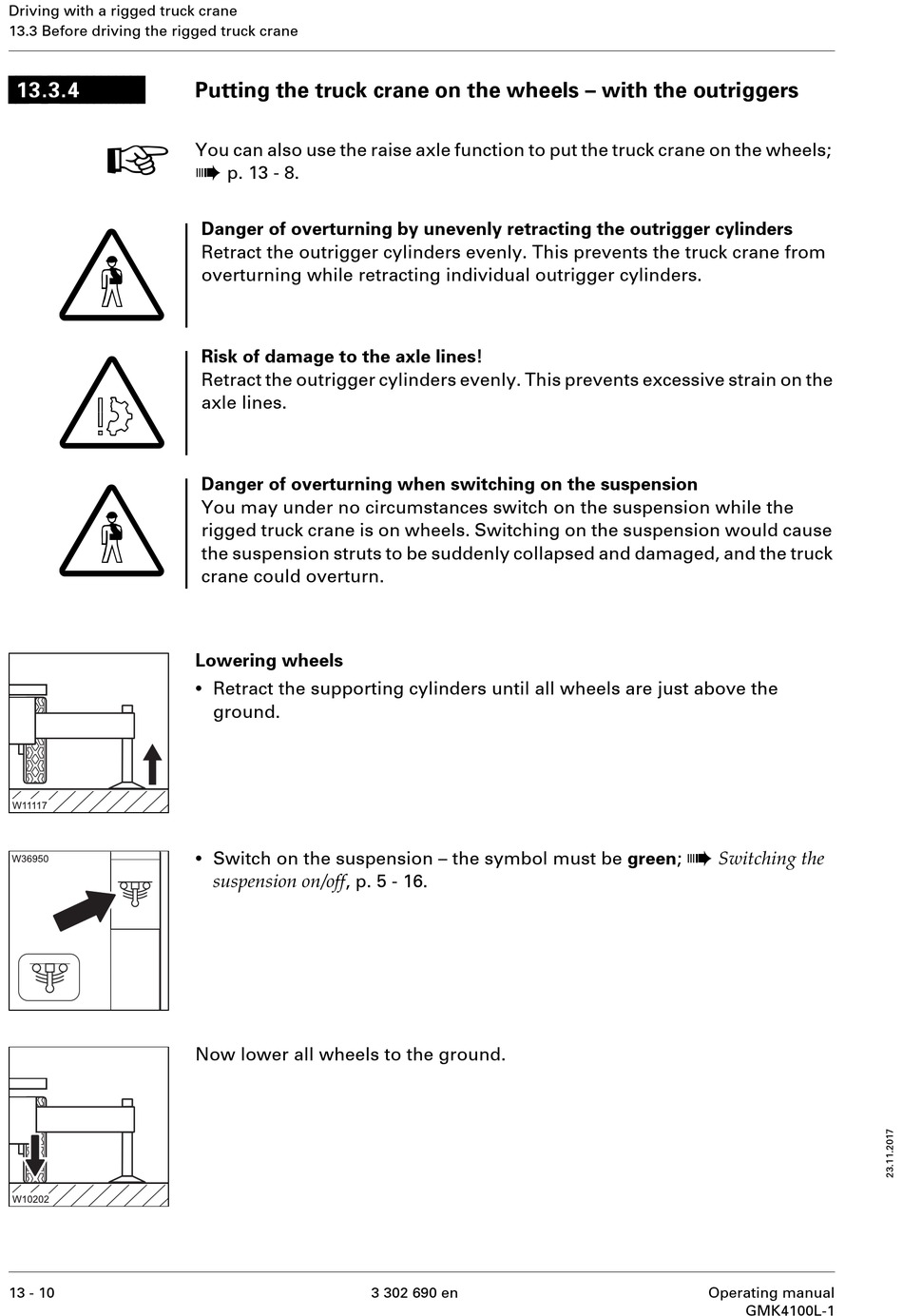

Putting the truck crane on the wheels – with the outriggers
You can also use the raise axle function to put the truck crane on the wheels;
à
p. 13 - 8.
Danger of overturning by unevenly retracting the outrigger cylinders
Retract the outrigger cylinders evenly. This prevents the truck crane from
overturning while retracting individual outrigger cylinders.
Risk of damage to the axle lines!
Retract the outrigger cylinders evenly. This prevents excessive strain on the
axle lines.
Danger of overturning when switching on the suspension
You may under no circumstances switch on the suspension while the
rigged truck crane is on wheels. Switching on the suspension would cause
the suspension struts to be suddenly collapsed and damaged, and the truck
crane could overturn.
Lowering wheels
•
Retract the supporting cylinders until all wheels are just above the
ground.
•
Switch on the suspension – the symbol must be green;
suspension on/off , p. 5 - 16.
Now lower all wheels to the ground.
