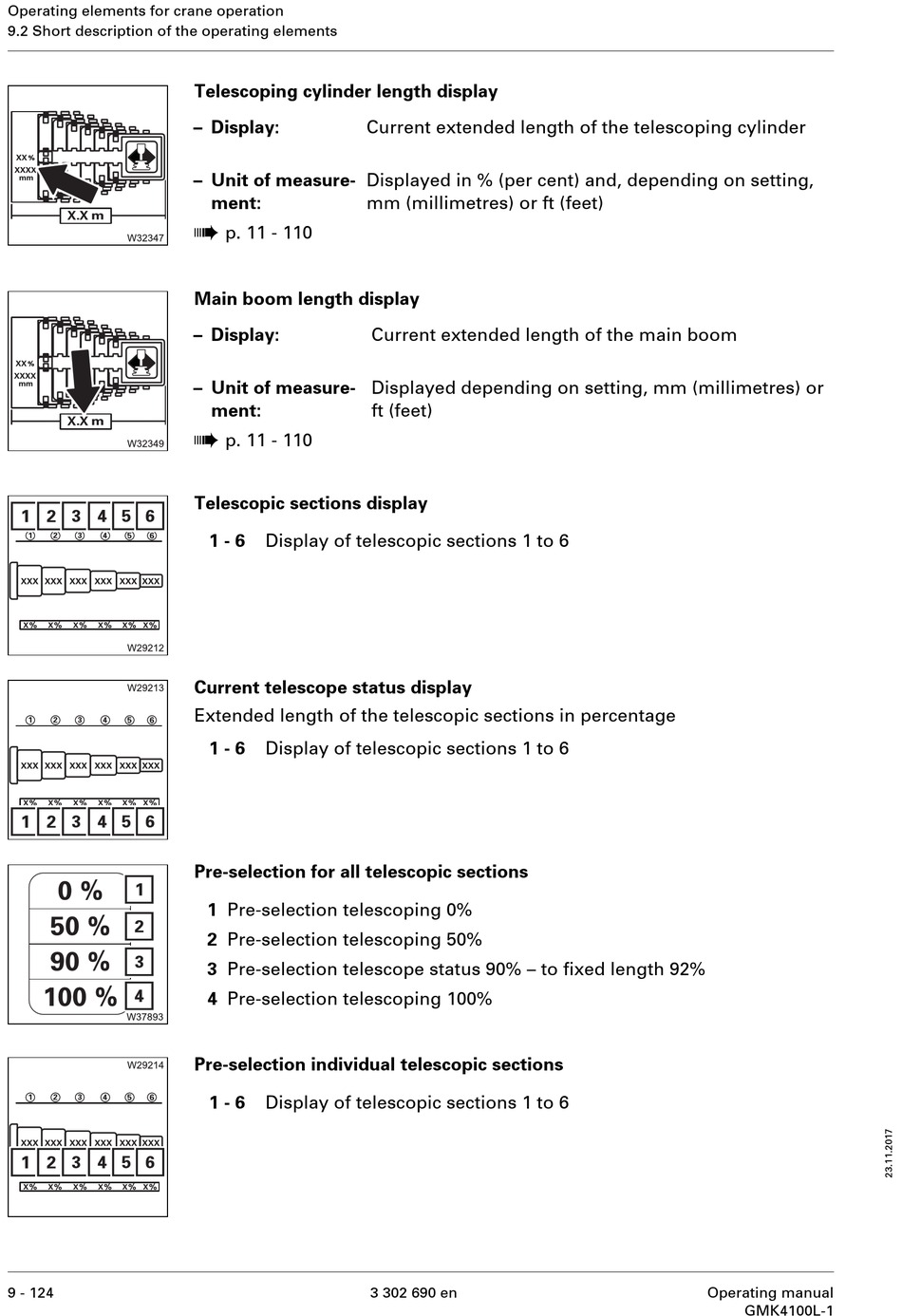

Operating elements for crane operation
9.2 Short description of the operating elements
9 - 124
Telescoping cylinder length display
– Display:
– Unit of measure-
ment:
à
p. 11 - 110
Main boom length display
– Display:
– Unit of measure-
ment:
à
p. 11 - 110
Telescopic sections display
1 - 6 Display of telescopic sections 1 to 6
Current telescope status display
Extended length of the telescopic sections in percentage
1 - 6 Display of telescopic sections 1 to 6
Pre-selection for all telescopic sections
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%
3 Pre-selection telescope status 90% – to fixed length 92%
4 Pre-selection telescoping 100%
Pre-selection individual telescopic sections
1 - 6 Display of telescopic sections 1 to 6
Current extended length of the telescoping cylinder
Displayed in % (per cent) and, depending on setting,
mm (millimetres) or ft (feet)
Current extended length of the main boom
Displayed depending on setting, mm (millimetres) or
ft (feet)
