Establishing The Required Hydraulic Circuits - Manitowoc Grove GMK4100L-1 Operating Manual

14.7.7
Switching
over valves
G
Operating manual
GMK4100L-1

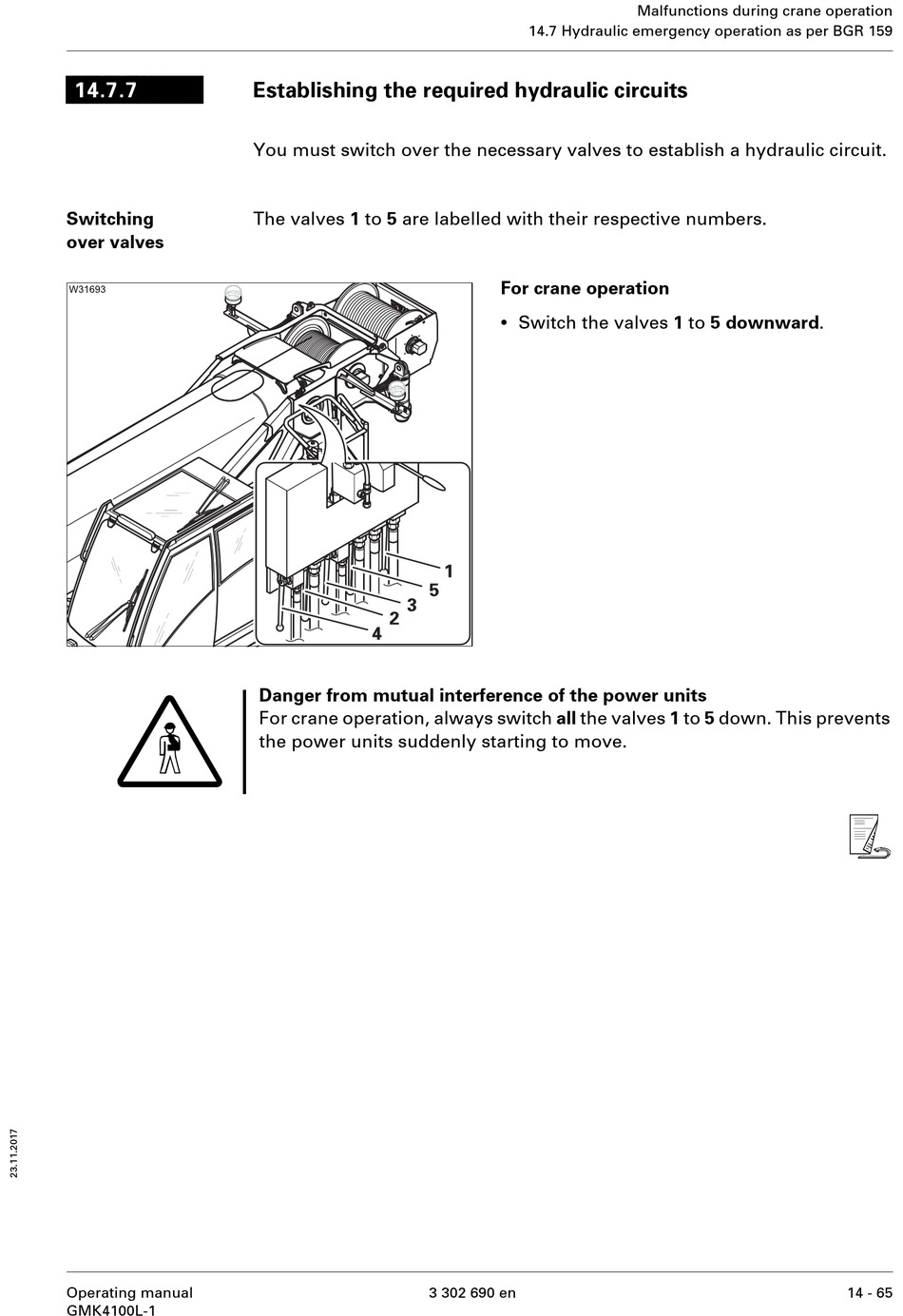

Establishing the required hydraulic circuits

You must switch over the necessary valves to establish a hydraulic circuit.
The valves 1 to 5 are labelled with their respective numbers.
Danger from mutual interference of the power units
For crane operation, always switch all the valves 1 to 5 down. This prevents
the power units suddenly starting to move.
14.7 Hydraulic emergency operation as per BGR 159
For crane operation
•
Switch the valves 1 to 5 downward.
3 302 690 en
Malfunctions during crane operation
s
14 - 65
