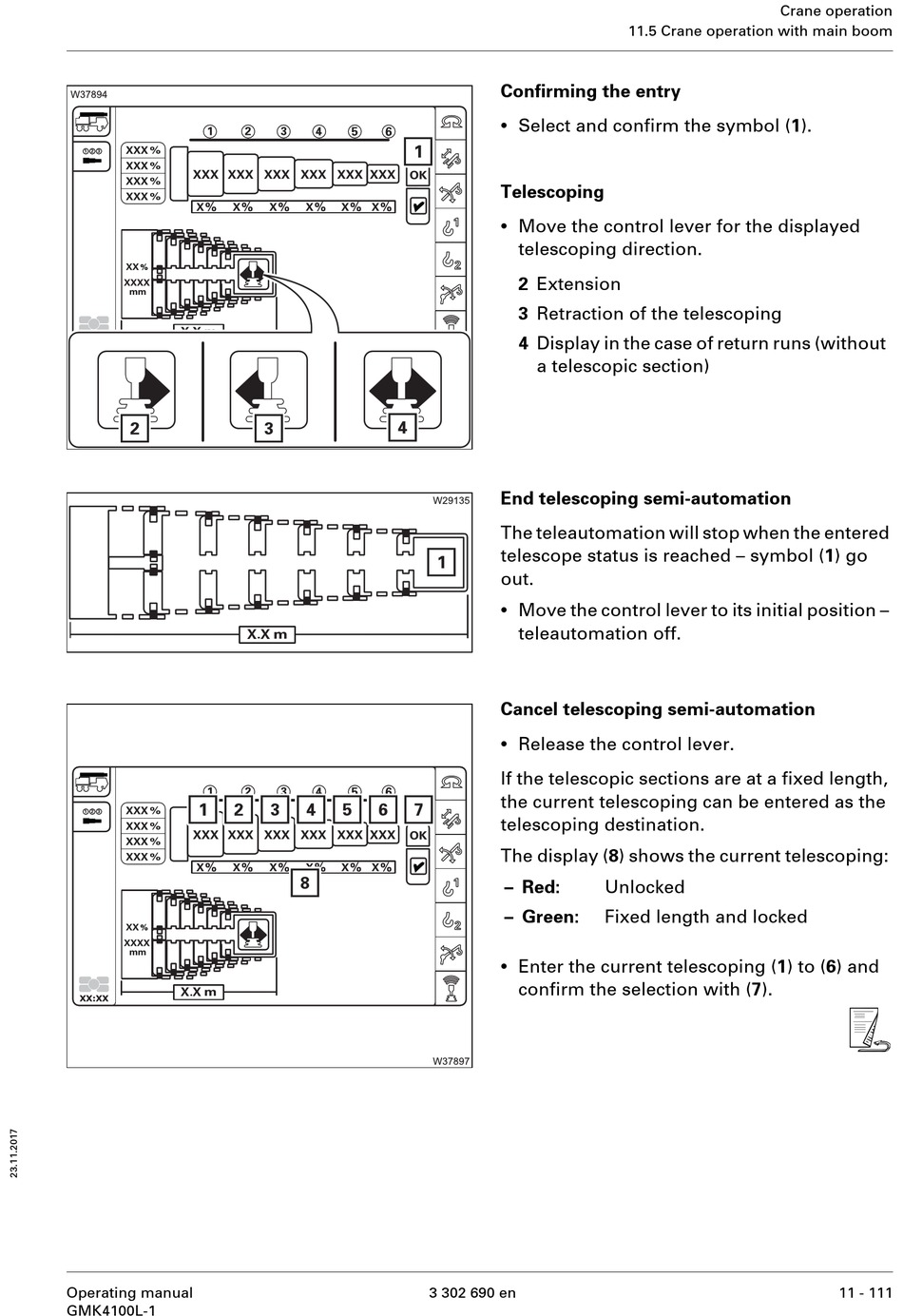

Manitowoc Grove GMK4100L-1 Operating Manual page 699

Operating manual
GMK4100L-1
Confirming the entry
•
Select and confirm the symbol (1).
Telescoping
•
Move the control lever for the displayed
telescoping direction.
2 Extension
3 Retraction of the telescoping
4 Display in the case of return runs (without
a telescopic section)
End telescoping semi-automation
The teleautomation will stop when the entered
telescope status is reached – symbol (1) go
out.
•
Move the control lever to its initial position –
teleautomation off.
Cancel telescoping semi-automation
•
Release the control lever.
If the telescopic sections are at a fixed length,
the current telescoping can be entered as the
telescoping destination.
The display (8) shows the current telescoping:
– Red:
– Green:
•
Enter the current telescoping (1) to (6) and
confirm the selection with (7).
3 302 690 en
11.5 Crane operation with main boom
Unlocked
Fixed length and locked
Crane operation
s
11 - 111
