Operating manual
GMK4100L-1

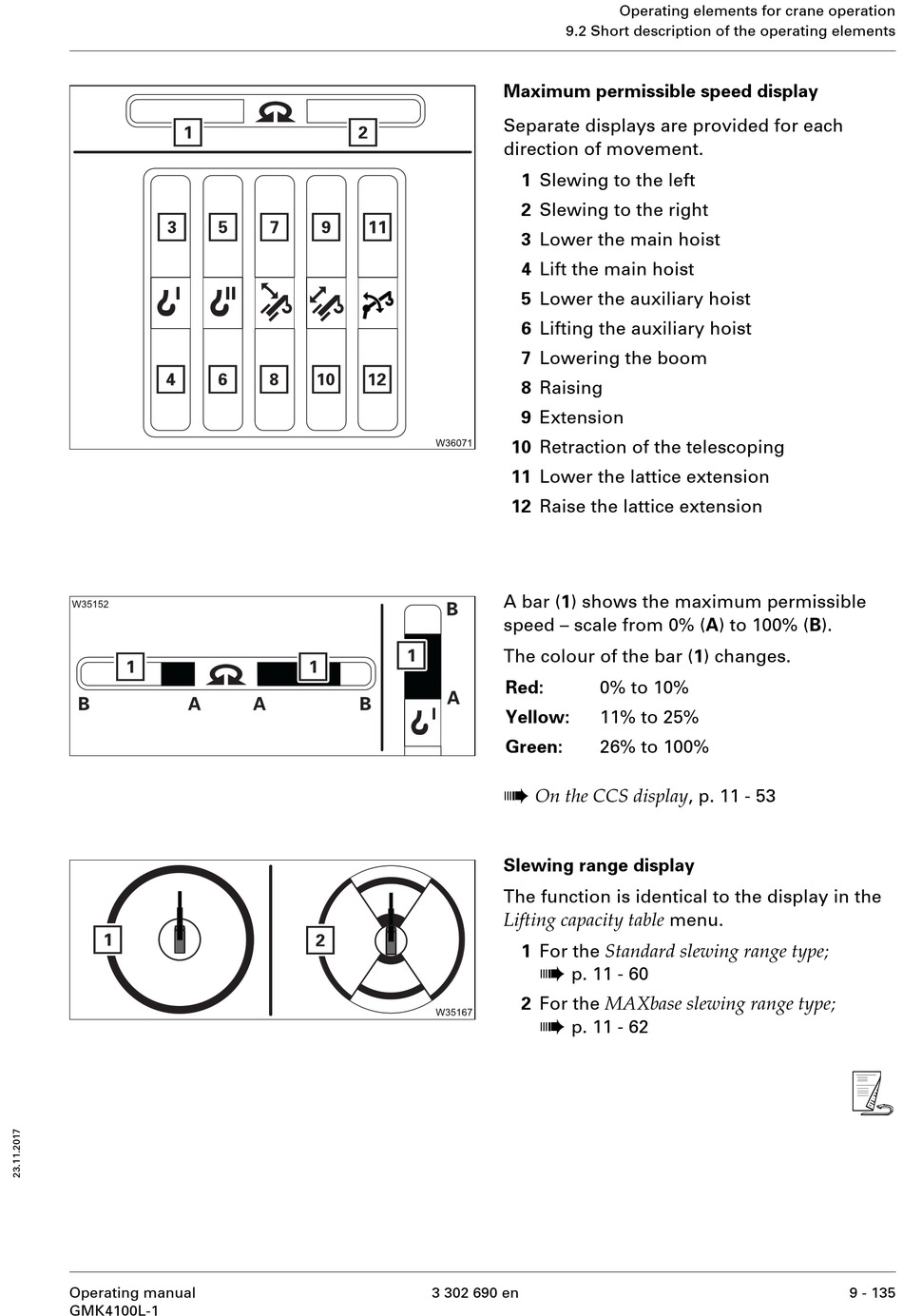

9.2 Short description of the operating elements
Maximum permissible speed display
Separate displays are provided for each
direction of movement.
1 Slewing to the left
2 Slewing to the right
3 Lower the main hoist
4 Lift the main hoist
5 Lower the auxiliary hoist
6 Lifting the auxiliary hoist
7 Lowering the boom
8 Raising
9 Extension
10 Retraction of the telescoping
11 Lower the lattice extension
12 Raise the lattice extension
A bar (1) shows the maximum permissible
speed – scale from 0% (A) to 100% (B).
The colour of the bar (1) changes.
Red: 0% to 10%
Yellow: 11% to 25%
Green: 26% to 100%
à
On the CCS display , p. 11 - 53
Slewing range display
The function is identical to the display in the
Lifting capacity table menu.
1 For the Standard slewing range type;
à
p. 11 - 60
2 For the MAXbase slewing range type;
à
p. 11 - 62
3 302 690 en
Operating elements for crane operation
s
9 - 135
