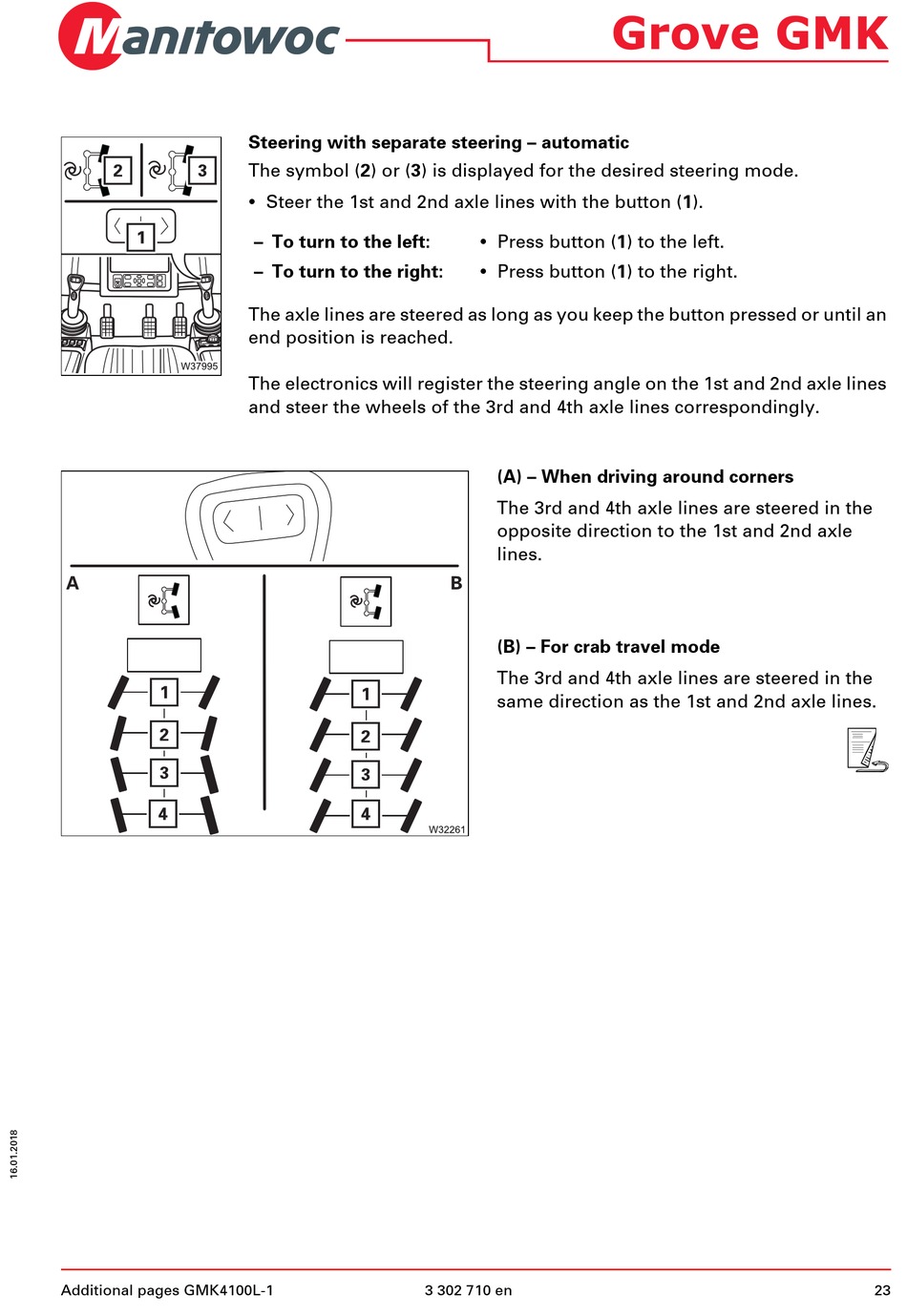

Steering with separate steering – automatic
The symbol (2) or (3) is displayed for the desired steering mode.
•
Steer the 1st and 2nd axle lines with the button (1).
– To turn to the left:
– To turn to the right:
The axle lines are steered as long as you keep the button pressed or until an
end position is reached.
The electronics will register the steering angle on the 1st and 2nd axle lines
and steer the wheels of the 3rd and 4th axle lines correspondingly.
•
Press button (1) to the left.
•
Press button (1) to the right.
(A) – When driving around corners
The 3rd and 4th axle lines are steered in the
opposite direction to the 1st and 2nd axle
lines.
(B) – For crab travel mode
The 3rd and 4th axle lines are steered in the
same direction as the 1st and 2nd axle lines.
