11.3.2
Operating manual
GMK4100L-1

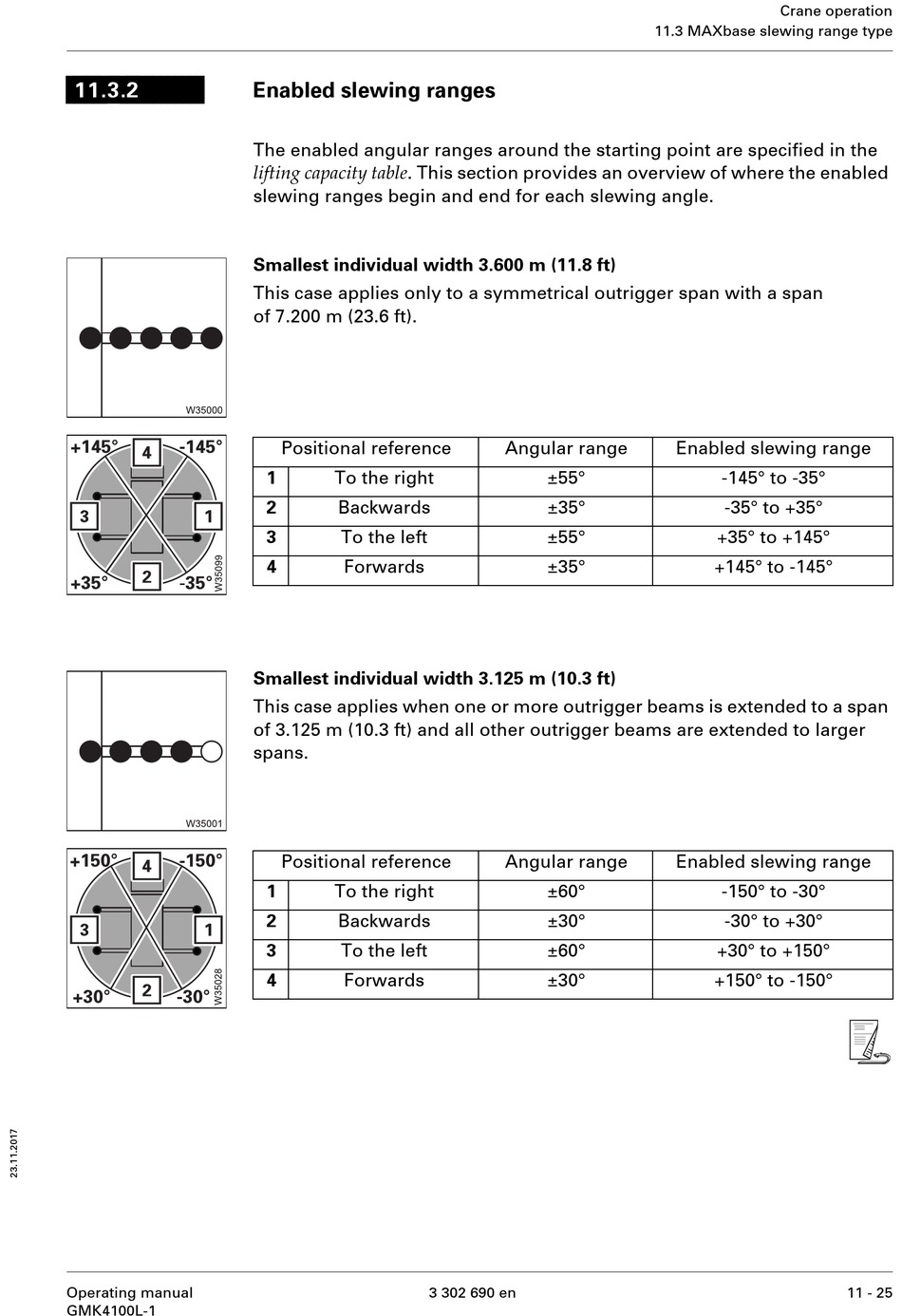

Enabled slewing ranges
The enabled angular ranges around the starting point are specified in the
lifting capacity table . This section provides an overview of where the enabled
slewing ranges begin and end for each slewing angle.
Smallest individual width 3.600 m (11.8 ft)
This case applies only to a symmetrical outrigger span with a span
of 7.200 m (23.6 ft).
Positional reference
1 To the right
2 Backwards
3 To the left
4 Forwards
Smallest individual width 3.125 m (10.3 ft)
This case applies when one or more outrigger beams is extended to a span
of 3.125 m (10.3 ft) and all other outrigger beams are extended to larger
spans.
Positional reference
1 To the right
2 Backwards
3 To the left
4 Forwards
Angular range
±55°
±35°
±55°
±35°
Angular range
±60°
±30°
±60°
±30°
3 302 690 en
Crane operation
11.3 MAXbase slewing range type
Enabled slewing range
-145° to -35°
-35° to +35°
+35° to +145°
+145° to -145°
Enabled slewing range
-150° to -30°
-30° to +30°
+30° to +150°
+150° to -150°
