Rigging work

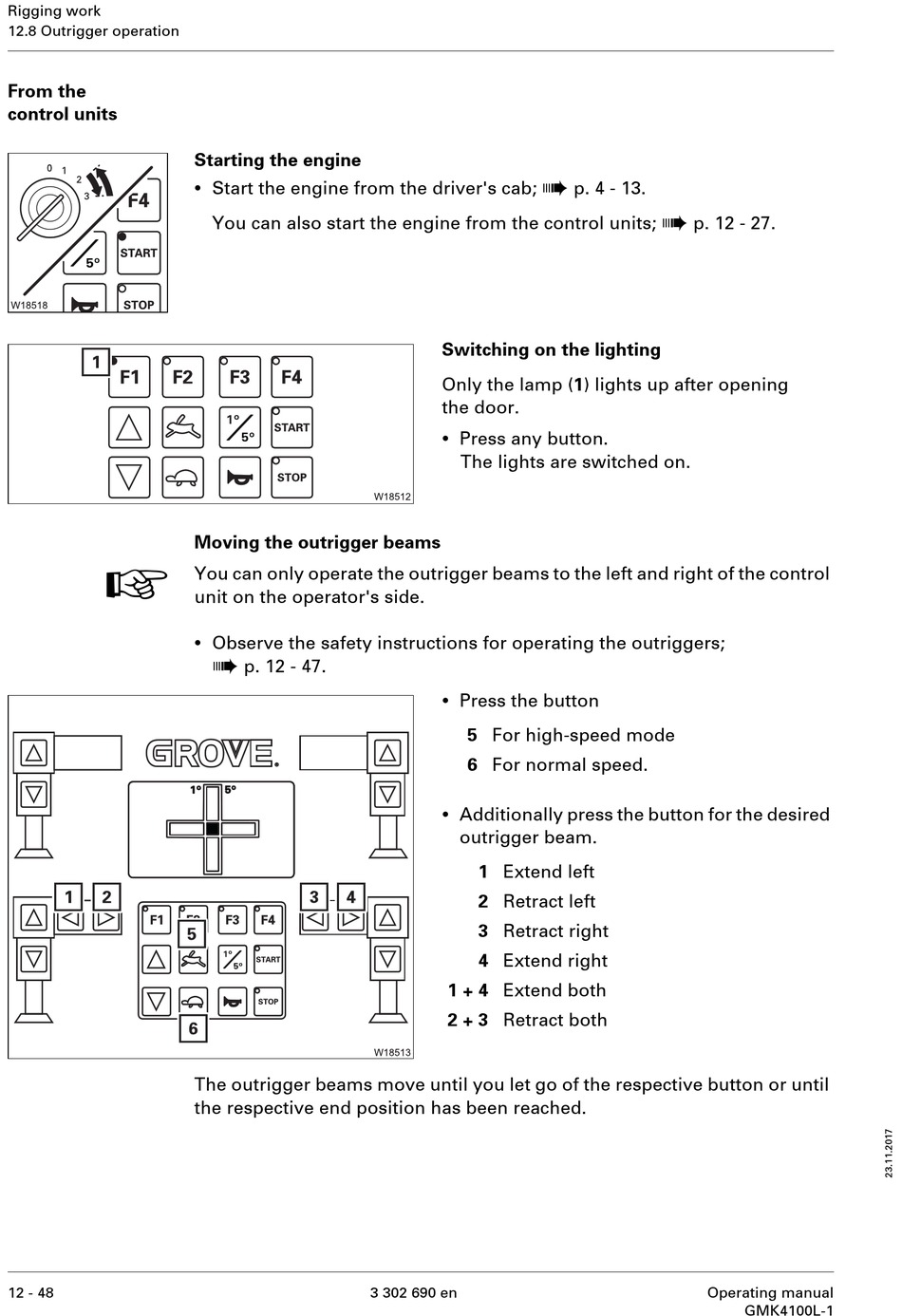

12.8 Outrigger operation
From the
control units
H
12 - 48
Starting the engine
•
Start the engine from the driver's cab;
You can also start the engine from the control units;
Moving the outrigger beams
You can only operate the outrigger beams to the left and right of the control
unit on the operator's side.
•
Observe the safety instructions for operating the outriggers;
à
p. 12 - 47.
The outrigger beams move until you let go of the respective button or until
the respective end position has been reached.
Switching on the lighting
Only the lamp (1) lights up after opening
the door.
•
Press any button.
The lights are switched on.
•
Press the button
5 For high-speed mode
6 For normal speed.
•
Additionally press the button for the desired
outrigger beam.
1 Extend left
2 Retract left
3 Retract right
4 Extend right
1 + 4 Extend both
2 + 3 Retract both
3 302 690 en
à
p. 4 - 13.
à
p. 12 - 27.
Operating manual
GMK4100L-1
