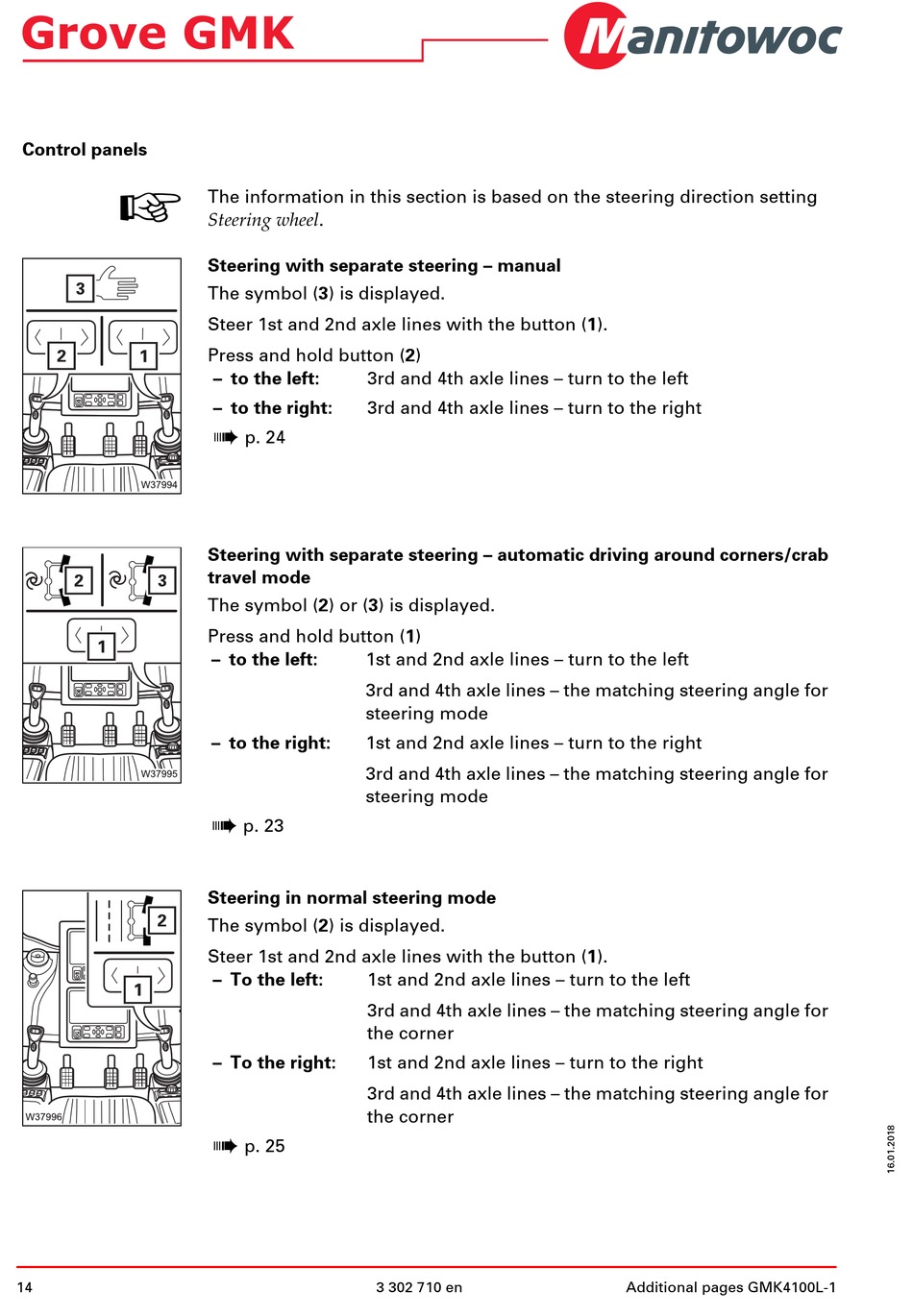

Control panels
H
14
The information in this section is based on the steering direction setting
Steering wheel .
Steering with separate steering – manual
The symbol (3) is displayed.
Steer 1st and 2nd axle lines with the button (1).
Press and hold button (2)
– to the left: 3rd and 4th axle lines – turn to the left
– to the right: 3rd and 4th axle lines – turn to the right
à
p. 24
Steering with separate steering – automatic driving around corners/crab
travel mode
The symbol (2) or (3) is displayed.
Press and hold button (1)
– to the left: 1st and 2nd axle lines – turn to the left
3rd and 4th axle lines – the matching steering angle for
steering mode
– to the right: 1st and 2nd axle lines – turn to the right
3rd and 4th axle lines – the matching steering angle for
steering mode
à
p. 23
Steering in normal steering mode
The symbol (2) is displayed.
Steer 1st and 2nd axle lines with the button (1).
– To the left: 1st and 2nd axle lines – turn to the left
3rd and 4th axle lines – the matching steering angle for
the corner
– To the right: 1st and 2nd axle lines – turn to the right
3rd and 4th axle lines – the matching steering angle for
the corner
à
p. 25
3 302 710 en Additional pages GMK4100L-1
