Malfunctions in driving mode
8.7 Fuses on the carrier
8.7.2
S
8 - 56

Fuses in the battery box

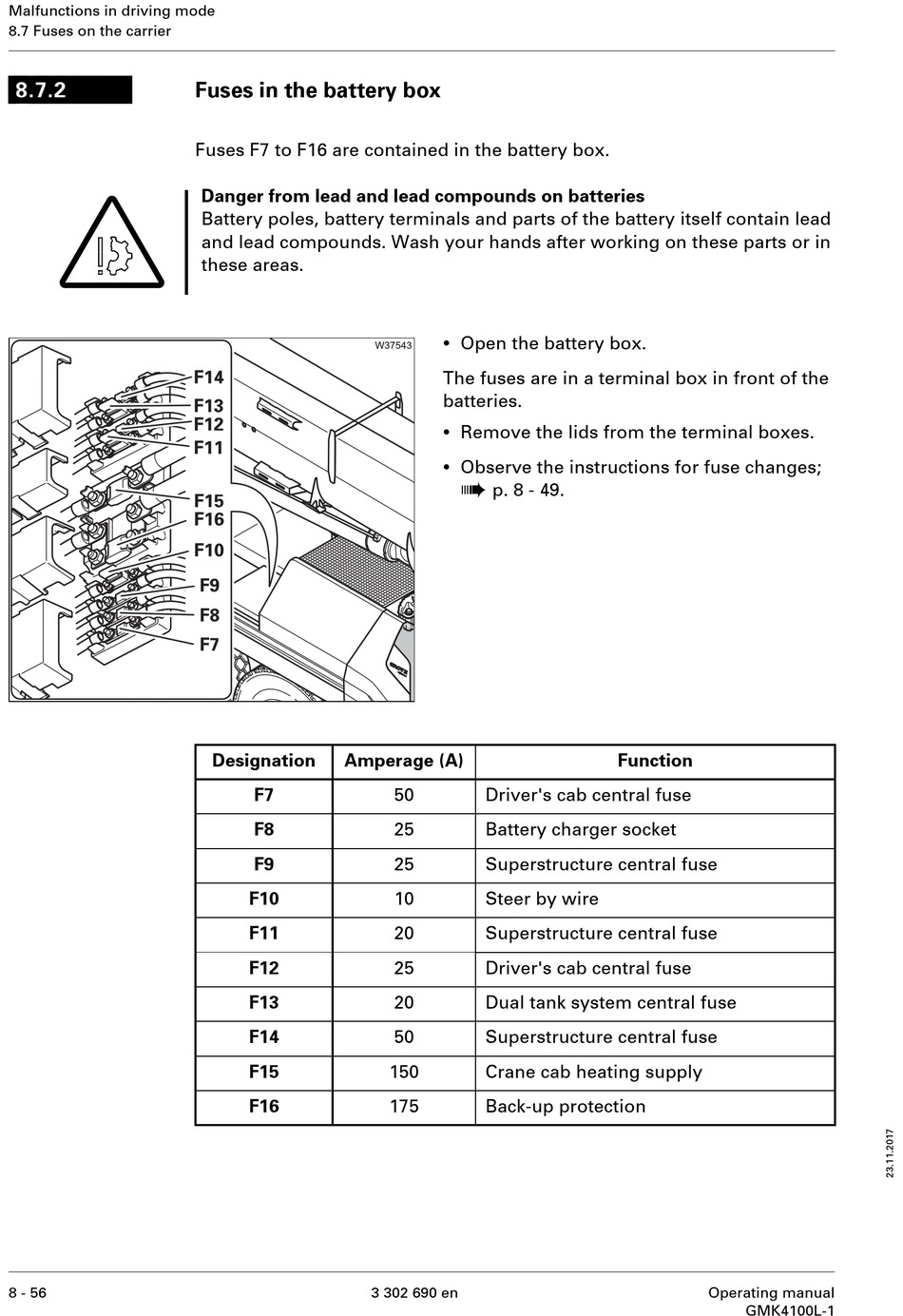

Fuses F7 to F16 are contained in the battery box.
Danger from lead and lead compounds on batteries
Battery poles, battery terminals and parts of the battery itself contain lead
and lead compounds. Wash your hands after working on these parts or in
these areas.
Designation Amperage (A)
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
•
Open the battery box.
The fuses are in a terminal box in front of the
batteries.
•
Remove the lids from the terminal boxes.
•
Observe the instructions for fuse changes;
à
p. 8 - 49.
50 Driver's cab central fuse
25 Battery charger socket
25 Superstructure central fuse
10 Steer by wire
20 Superstructure central fuse
25 Driver's cab central fuse
20 Dual tank system central fuse
50 Superstructure central fuse
150 Crane cab heating supply
175 Back-up protection
