11.4 Operation of the rated capacity limiter

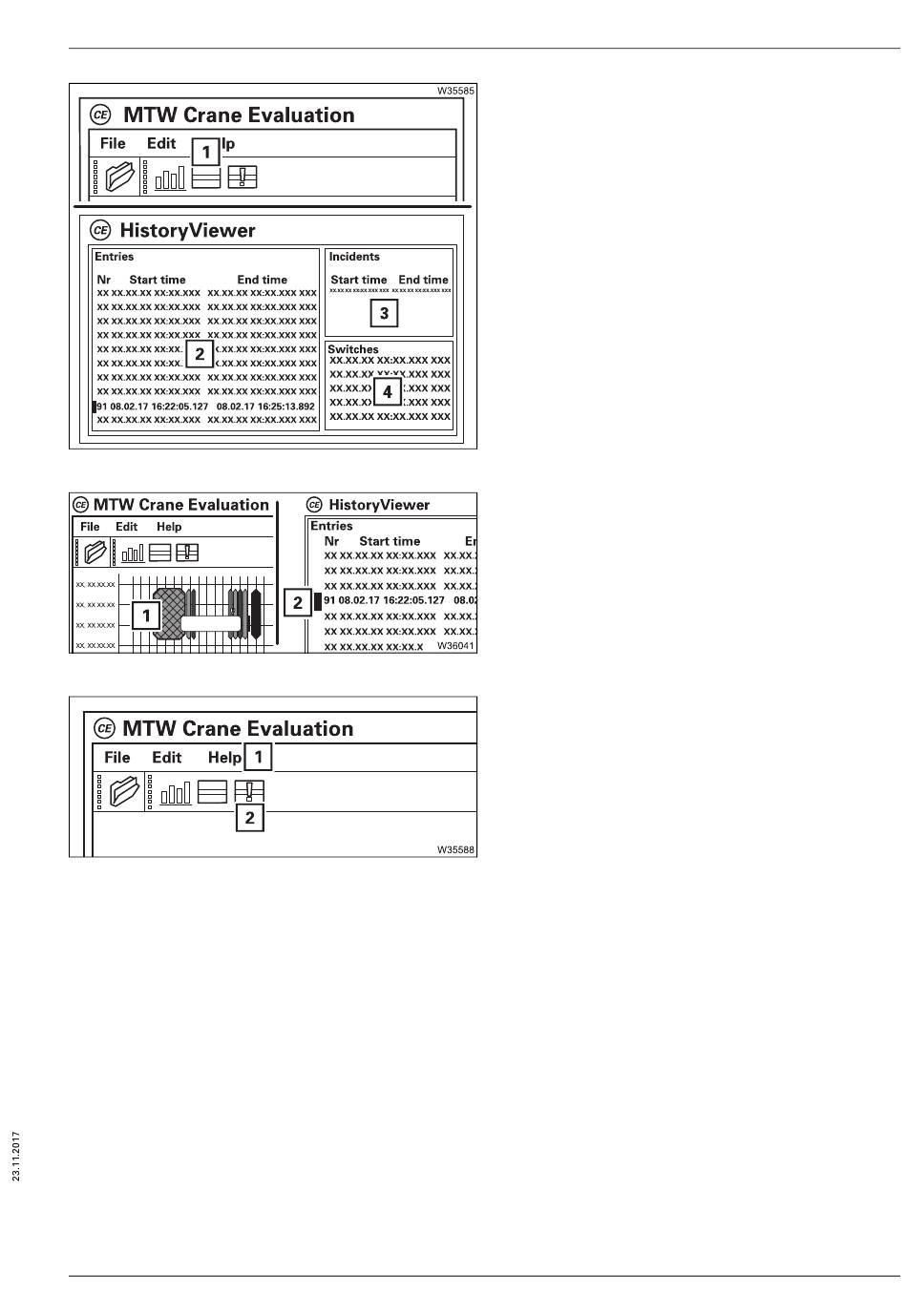

Displaying tables
•
Select the symbol (1) – a table is displayed.
2 List with all lifts
3 List with all events
4 List with all actuated switches
When the Crane use graphic is also open,
an element is displayed and marked in the
respective other window when clicked.
1 Graphical marking
2 Tabular marking
Display the error list
•
Select the symbol (2) – a table showing all
imported errors is displayed.
Other
Select the command (1) for further information.
